基于SSR标记分析小豆及其近缘植物的遗传关系

doi:10.3724/SP.J.1003.2011.07155

摘要/Abstract

摘要：

本研究利用87对SSR引物分析了80份栽培小豆(Vigna angularis)、22份野生小豆(V. angularis var. nipponensis)以及10份豇豆属(共7个种)近缘植物, 旨在比较豇豆属不同种的遗传多样性, 并分析种间的遗传关系。结果显示87对SSR引物在112份小豆及其近缘植物资源中共检测到667个等位变异, 其中有75个、71个和82个SSR位点分别在栽培小豆、野生小豆和近缘植物中表现为多态。随机抽样分析发现, 平均每SSR位点检测到的等位变异数目为近缘植物>野生小豆>栽培小豆, 与多态信息含量(PIC)值一致, 说明近缘植物及野生小豆中蕴含着丰富的遗传变异, 是栽培小豆育种的重要基因来源。聚类分析显示, 栽培小豆、野生小豆和近缘植物间的遗传分化比较明显, 分别聚为三大类, 其中栽培小豆的遗传背景与其生态环境相对应; 近缘植物又可以分为三个亚类, 亚类间的遗传距离与其亲缘关系相对应。本研究结果也说明利用SSR标记辅助豇豆属的种间分类是可行的。

关键词: 豇豆属植物, SSR, 遗传多样性, 遗传关系

Abstract

In order to enhance the use of genetic resources of Vigna in breeding of adzuki bean, genetic diversity and relationship were analyzed based on 87 SSR markers. The results showed 667 alleles were detected at these SSR loci among 112 accessions of Vigna plants, including 80 cultivated, 22 wild adzuki bean and 10 relative plants. And 75, 71 and 82 were polymorphic in cultivated, wild adzuki bean and relative plants, respectively. Random sampling analysis suggested that the relative plants ranked the first for the average number of alleles per SSR locus, and wild adzuki bean ranked the second, this was agreeable with polymorphism information content (PIC). Cluster analysis divided the cultivated, wild adzuki bean and relative plants into three distinct groups. The genetic background of cultivated adzuki bean basically agreed with their origins. The relative plants could also be divided into three sub-groups, and V. umbellata had different genetic background with other wild species. The present study suggested that wild Vigna had higher genetic variations than cultivated adzuki bean, and could be used to broadening the gene pool of this crop.

Key words: adzuki bean, Vigna, genetic diversity, SSR

王丽侠, 程须珍, 王素华 (2011) 基于SSR标记分析小豆及其近缘植物的遗传关系. 生物多样性, 19, 17-23. DOI: 10.3724/SP.J.1003.2011.07155.

Lixia Wang, Xuzhen Cheng, Suhua Wang (2011) Genetic diversity in adzuki bean and its relatives based on SSR markers. Biodiversity Science, 19, 17-23. DOI: 10.3724/SP.J.1003.2011.07155.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.biodiversity-science.net/CN/10.3724/SP.J.1003.2011.07155

https://www.biodiversity-science.net/CN/Y2011/V19/I1/17

图/表 4

表1 小豆及其近缘植物的类别及受检种质数

Table 1 Number of accessions detected for different species in Vigna

种属 Species	数量 Amount
Vigna angularis	80
V. angularisvar.nipponensis	22
V. umbellata	3
V. hirtella	1
V. tenuicaulis	1
V. riukivernsis	2
V. minima	1
V. trinervia	1
V. nakashimae	1
合计 Total	112

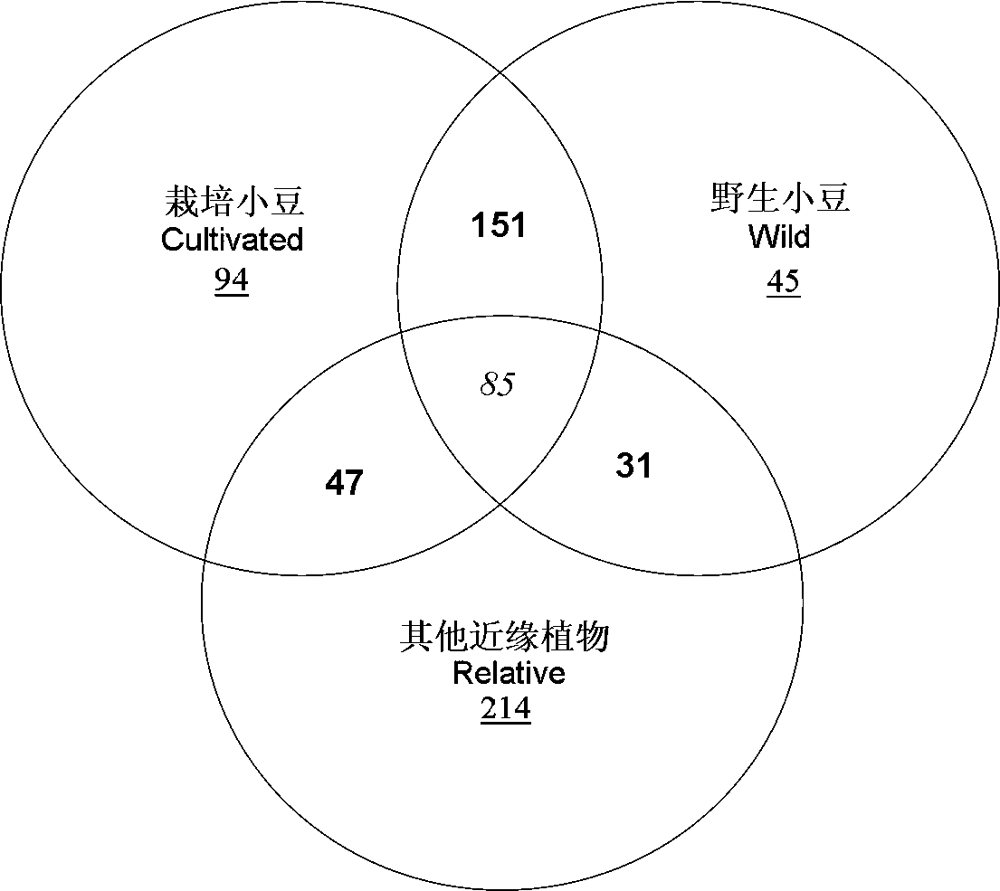

图1 667个等位变异在不同小豆或近缘植物群体间的分布。下划线者为群体特有等位变异, 黑体为两两群体间特有等位变异, 斜体为3个群体间共有等位变异。

Fig. 1 Distribution of 667 alleles among cultivated, wild adzuki bean and other relatives. The underlined number is the specific alleles within each population, the bold numbers are the common alleles between populations, and the italic number is the specific alleles among the three populations.

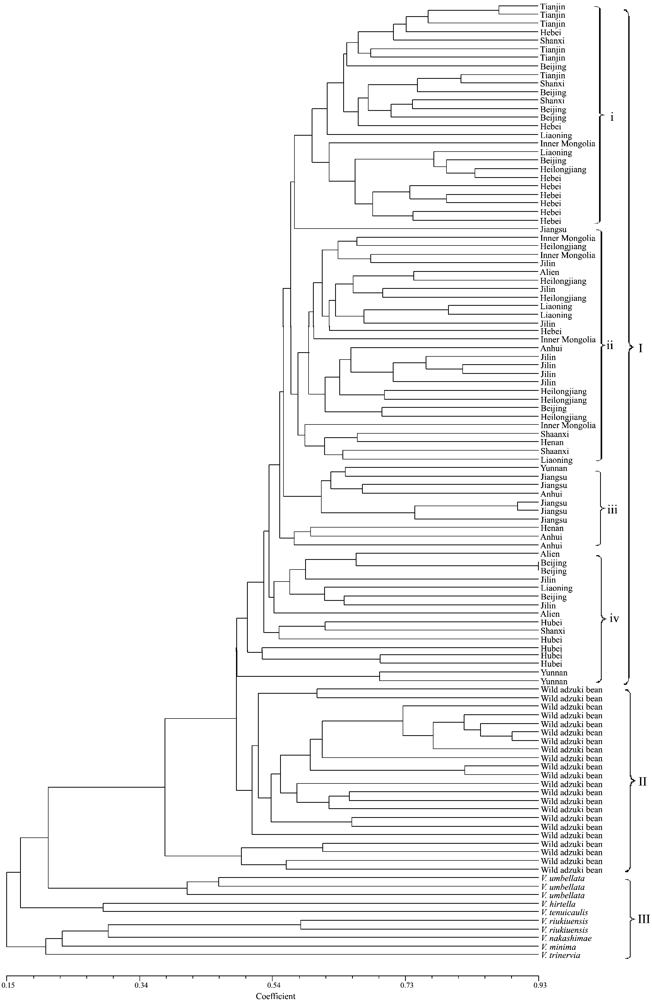

图2 基于小豆及其近缘植物间遗传相似性系数绘制的树状聚类图

Fig. 2 Dendrogram showing genetic relationship among adzuki bean and its relatives based on coefficient of similarity

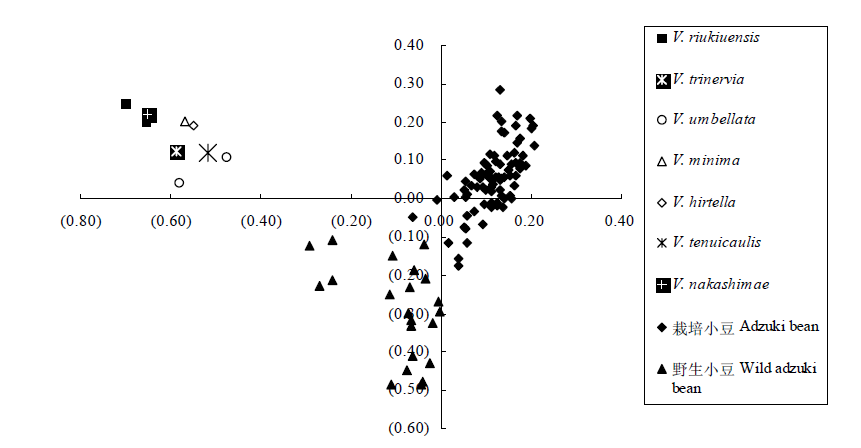

图3 基于主成分分析绘制的小豆及其近缘植物关系的二维坐标图

Fig. 3 Two-dimentional representaion of genetic relationship among adzuki bean and its relatives

参考文献 45

[1]	Bassam BJ, Caetano-Anollés G, Gresshoff PM (1991) Fast and sensitive silver staining of DNA in polyacrylamide gels. Analytical Biochemistry, 196,80-83. DOI URL PMID
[2]	Cai Q (蔡青), Fan YH (范源洪), Aitken K, Piperidis G, McIntyre CL, Jackson P, (2005) Assessment of the phylogenetic relationships within the “ Saccharum Complex” using AFLP markers. Acta Agronomica Sinica (作物学报), 31,551-559. (in Chinese with English abstract)
[3]	Chen XZ (陈学珍), Jin WL (金文林), Yu SF (喻少帆), Guo YG (郭玉刚), Li J (李静), Wang XM (王晓明), Zhang Z (张峥), Nie XH (聂晓红) (2001) Screening for genotype of big grain and high protein content in the variety sources of adzuki bean. Journal of Beijing Agricultural College (北京农学院学报), 16(2),5-11. (in Chinese with English abstract)
[4]	Credland PF (1986) Effect of host availability on reproductive performance in Callosobruchus maculatus (F.)(Coleoptera: Bruchidae). Journal of Stored Products Research, 22,49-54.
[5]	Doyle JJ, Doyle JE (1987) A rapid DNA isolation procedure for small quantities of fresh leaf tissue. Phytochemistry Bulletin, 19,11-15.
[6]	Han OK, Kaga A, Isemura T, Wang XW, Tomooka N, Vaughan DA (2005) A genetic linkage map for azuki bean ( Vigna angularis (Willd.) Ohwi and Ohashi). Theoretical and Applied Genetics, 111,1278-1287. URL PMID
[7]	Hu JP (胡家蓬), Cheng XZ (程须珍), Wang PZ (王佩芝) (1996) Catalogues of Chinese Food Legumes Germplasm Resources: Continuation III (中国食用豆类品种资源目录:续编III). China Agricultural Press, Beijing. (in Chinese)
[8]	Hu JP (胡家蓬) (1984) The primary study of adzuki bean genetic resources. Crop Genetic Resources (作物品种资源), (1),21-25. (in Chinese)
[9]	Jin WL (金文林) (1995) The primary study on ecological regions of Chinese adzuki bean. Beijing Agricultural Sciences (北京农业科学), 13(6),1-4. (in Chinese)
[10]	Kaga A, Ishii T, Tsukimoto K, Tokoro E, Kamijima O (2000) Comparative molecular mapping in Ceratotropis species using an interspecific cross between adzuki bean ( Vigna angularis) and rice bean (V. umbellata). Theoretical and Applied Genetics, 100,207-213.
[11]	Lambrides CJ, Imrie BC (2000) Susceptibility of mungbean varieties to the bruchid species Callosobruchus maculatus (F.), C. phaseoli (Gyll.), C. chinensis (L.), and Acanthoscelides obtectus (Say.)(Coleoptera, Chrysomelidae). Australian Journal of Agricultural Research, 51,85-89.
[12]	Lin C, Chen CS, Horng SB (2005) Characterization of resistance to Callosobruchus maculatus (Coleoptera, Bruchidae) in mungbean variety VC6089A and its resistance-associated protein VrD1. Journal of Economic Entomology, 98,1369-1373. URL PMID
[13]	Liu CY (刘长友), Tian J (田静), Fan BJ (范保杰) (2009) Genetic diversity analysis of adzuki bean germplasm in Hebei Province. Journal of Plant Genetic Resources (植物遗传资源学报), 10,73-76. (in Chinese with English abstract)
[14]	Qi N (齐宁), Wei SH (魏淑红), Lin H (林红), Liu GY (刘广阳), Yang XF (杨雪峰) (2006) Creation and utilization of the new soybean germplasm Longpin 03-311. Journal of Plant Genetic Resources (植物遗传资源学报), 7,249-251. (in Chinese with English abstract)
[15]	Ren ZL (任志龙), Ji WQ (吉万全), Zhang H (张宏) (2007) A new variety of high yield Shanmai139. China Seed Industry (中国种业), (5),73. (in Chinese)
[16]	Rohlf FJ (2000) NTSYS-PC:Numerical Taxonomy and Multivariate Analysis System, version 2.1. Exeter Software, Setauket, New York.
[17]	Somta P, Kaga A, Tomooka N, Kashiwaba K, Isemura T, Chaitieng B, Srinives P, Vaughan DA (2006) Development of an interspecific Vigna linkage map between Vigna umbellata (Thunb.) Ohwi & Ohashi and V. nakashimae (Ohwi) Ohwi & Ohashi and its use in analysis of bruchid resistance and comparative genomics. Plant Breeding, 125,77-84.
[18]	Su SQ (粟生群), Rong TZ (荣廷昭), Yu YH (余跃辉), Liu J (刘坚) (2005) Genetic diversity in cultivated adzuki bean germplasm resources revealed by AFLP markers. Journal of Sichuan Agriculture University (四川农业大学学报), 23,156-162. (in Chinese with English abstract)
[19]	Tateishi Y (1985) A revision of the adzuki bean group, the subgenus Ceratotropis of the genus Vigna (Leguminosae). PhD dissertation, Tohoku University, Sendai, Japan.
[20]	Tian J (田静), Zhao CX (赵春霞) (2001) Genetic variability of agronomic traits of adzuki bean in Hebei Province. Journal of Hebei Agricultural Sciences (河北农业科学), 5(2),7-11. (in Chinese with English abstract)
[21]	Tian SJ (田松杰), Shi YS (石云素), Song YC (宋燕春), Wang TY (王天宇), Li Y (黎裕) (2004) Application of AFLP markers to genetic relationships between maize and its wild relatives. Acta Agronomica Sinica (作物学报), 30,354-359. (in Chinese with English abstract)
[22]	Tomooka N, Lairungreang C, Nakeeraks P, Egawa Y, Thavarasook C (1992) Development of bruchid resistance mungbean line using wild mungbean germplasm in Thailand. Plant Breeding, 109,60-66.
[23]	VanToai TT, Peng JQ, St Martin S (1996) Optimization of silver-staining AFLP technique for soybean. Soybean Genetic Newsletter, 23,206-209.
[24]	Wang LX (王丽侠), Cheng XZ (程须珍), Wang SH (王素华), Xu N (徐宁), Liang H (梁辉), Zhao D (赵丹) (2009) Genetic diversity among adzuki bean germplasm revealed by SSR markers. Scientia Agricultura Sinica (中国农业科学), 42,2661-2666. (in Chinese with English abstract)
[25]	Wang LX (王丽侠), Li YH (李英慧), Li W (李伟), Zhu L (朱莉), Guan Y (关媛), Ning XC (宁学成), Guan RX (关荣霞), Liu ZX (刘章雄), Chang RZ (常汝镇), Qiu LJ (邱丽娟) (2004) Establishment of a core collection of Changjiang spring sowing soybean. Biodiversity Science (生物多样性), 12,578-585. (in Chinese with English abstract)
[26]	Wang LX, Guan Y, Guan RX, Li YH, Ma YS, Dong ZM, Liu X, Zhang HY, Zhang YQ, Liu ZX, Chang RZ, Xu HM, Li LH, Lin FY, Luan WJ, Yan Z, Ning XC, Zhu L, Cui YH, Piao RH, Liu Y, Chen PY, Qiu LJ (2006) Establishment of Chinese soybean ( Glycine max) core collections with agronomic traits and SSR markers. Euphytica, 151,215-223.
[27]	Wang SM (王述民), Cao YS (曹永生), Redden RJ, Hu JP (胡家蓬), Sher TU (2002a) The morphological diversity and classification of adzuki bean ( Vigna angularis (Willd.) Ohwi & Ohashi) germplasm resources in China. Acta Agronomica Sinica (作物学报), 28,727-733. (in Chinese with English abstract)
[28]	Wang SM (王述民), Hu YK (胡英考), Hu JP (胡家蓬) (2002b) Study on genetic diversity of adzuki bean germplasm based on RAPD markers. Journal of Plant Genetic Resources (植物遗传资源科学), 3(1),14-19. (in Chinese with English abstract)
[29]	Wang SM (王述民), Zhang CH (张赤红) (2002) Genetic diversity of adzuki bean germplasm revealed by AFLP marker. Journal of Plant Genetic Resources (植物遗传资源科学), 3(3),1-5. (in Chinese with English abstract)
[30]	Wang XW, Kaga A, Tomooka N, Vaughan DA (2004) The development of SSR markers by a new method in plants and their application to gene flow studies in azuki bean ( Vigna angularis (Willd.) Ohwi & Ohashi). Theoretical and Applied Genetics, 109,352-360. DOI URL PMID
[31]	Wei SH (魏淑红) (1998) Identification of resistance to Cercospora canescens of adzuki bean germplasm. Crop Genetic Resources (作物品种资源), (3),40. (in Chinese)
[32]	Wei SH (魏淑红), Meng XX (孟宪欣), Dong XP (董晓萍) (2004) Study of adzuki bean germplasm of Heilongjiang Province. Heilongjiang Agricultural Sciences (黑龙江农业科学), 5,19-21. (in Chinese with English abstract)
[33]	Xu HX, Jing T, Tomooka N, Kaga A, Isemura T, Vaughan DA (2008) Genetic diversity of the azuki bean ( Vigna angularis (Willd.) Ohwi & Ohashi) gene pool as assessed by SSR markers. Genome, 51,728-738. DOI URL PMID
[34]	Yang GY (杨光宇), Wang Y (王洋), Ma XP (马晓萍), Ji F (纪锋), Yang CM (杨春明), Hu JH (胡金海), Wang YN (王英男), Xu M (许明), Gao SQ (高淑琴) (2007) Report on breeding of high oil content soybean Jiyu89. Crop Research. DOI URL PMID
[35]	Yang P (杨萍), Fang W (方伟), Lin XC (林新春) (2004) A study on genetic relationship in the bitter bamboo and its relatives by using random amplified polymorphic DNA (RAPD) markers. Journal of Yunnan University (Natural Science) (云南大学学报(自然科学版)), 26(6A),63-67. (in Chinese with English abstract)
[36]	Ye J (叶剑), Zhao B (赵波), Tong X (佟星), Pu SJ (濮绍京), Wan P (万平) (2008) Genetic diversity of cultivated adzuki bean germplasm resources based on SSR markers. Journal of Beijing University of Agriculture (北京农学院学报), 23(1),8-13. (in Chinese with English abstract)
[37]	Yee E, Kidwell KK, Sills GR, Lumpkin TA (1999) Diversity among selected Vigna angularis accessions on the basis of RAPD and AFLP markers. Crop Science, 39,268-275.
[38]	Yeh FC, Boyle TJB (1997) Population genetic analysis of co-dominant and dominant markers and quantitative traits. Belgian Journal of Botany, 129,157.
[39]	Yu SF (喻少帆), Jin WL (金文林), Zhang QR (张清润), Chen XZ (陈学珍), Guo MH (郭明华) (1997) Identification of resistance to powder disease in adzuki bean germplasm. Beijing Agricultural Sciences (北京农业科学), 15(3),40-42. (in Chinese)
[40]	Zhang BB (张冰冰), Liang YH (梁英海), Tian BB (田彬彬), Song HW (宋洪伟), Li F (李峰), Liu HZ (刘洪章) (2008) The relationship between 17 wild species within Malus based on RAPD markers. China Fruits (中国果树), (2),24-26. (in Chinese)
[41]	Zhao WD (赵卫东), Zhao JF (赵剑峰), Jiang LY (姜立雁), Chu XC (初秀成) (2007) Breeding of high yield and resistance rice variety Tongyu221. Crop Research (作物研究), (3),247-251. (in Chinese)
[42]	Zheng ZJ (郑卓杰) (1987) Catalogues of Chinese Food Legumes Germplasm Resources: Continuation I (中国食用豆类品种资源目录: 续编I). China Agricultural Science and Technology Press, Beijing. (in Chinese)
[43]	Zheng ZJ (郑卓杰) (1990) Catalogues of Chinese Food Legumes Germplasm Resources: Continuation II (中国食用豆类品种资源目录: 续编II). China Agricultural Press, Beijing. (in Chinese)
[44]	Zheng ZJ (郑卓杰) (1995) Chinese Food Legumes (中国食用豆类学). China Agricultural Press, Beijing, pp.141-166. (in Chinese)
[45]	Zong XX, Kaga A, Tomooka N, Wang XW, Han OK, Vaughan D (2003) The genetic diversity of the Vigna angularis complex in Asia. Genome, 46,647-658. URL PMID
