生物多样性 ›› 2013, Vol. 21 ›› Issue (6): 651-657.doi: 10.3724/SP.J.1003.2013.07095

• • 上一篇    下一篇

青藏高原高寒草地植物多样性测定的最小样地面积

董世魁1, *(), 汤琳1, 王学霞1, 刘颖慧2, 刘世梁1, 刘全儒3, 吴娱1, 李媛媛1, 苏旭坤1, 赵晨1

  1. 1 北京师范大学环境学院, 北京 100875
    2 北京师范大学资源学院, 北京 100875
    3 北京师范大学生命科学学院, 北京 100875
  • 收稿日期:2013-04-11 接受日期:2013-09-05 出版日期:2013-11-20
  • 通讯作者: 董世魁 E-mail:dongshikui@sina.com
  • 基金项目:
    国家“十二五”科技支撑项目(2012BAC01B02);环保部环保公益项目(201209033)

Minimum plot size for estimating plant biodiversity of the alpine grasslands on the Qinghai-Tibetan Plateau

Shikui Dong1, *(), Lin Tang1, Xuexia Wang1, Yinghui Liu2, Shiliang Liu1, Quanru Liu2, Yu Wu1, Yuanyuan Li1, Xukun Su1, Chen Zhao1

  1. 1 School of Environment, Beijing Normal University, Beijing 100875
    2 College of Resources Science and Technology, Beijing Normal University, Beijing 100875
    3 College of Life Sciences, Beijing Normal University, Beijing 100875
  • Received:2013-04-11 Accepted:2013-09-05 Online:2013-11-20
  • Contact: Dong Shikui E-mail:dongshikui@sina.com

为科学设定青藏高原地区草地植物多样性研究的样地面积, 提高研究结果的精确性, 本研究拟合研究了7种模型, 分别筛选出高寒草甸、高寒草原和高寒荒漠3种草地类型的最优拟合模型, 并基于种-面积曲线计算各类草地植物多样性估测的适宜样地面积。结果表明: (1)非饱和曲线模型较适宜拟合青藏高原地区的种-面积关系; (2)3类高寒草地健康样地的最小面积均大于退化样地; (3)对于高寒草甸, 健康样地和退化样地的最小面积分别为108 m2和82 m2; 对于高寒草原, 健康样地和退化样地的最小面积分别为130 m2和81 m2 ; 对于高寒荒漠, 健康样地和退化样地的最小面积分别为60 m2和41 m2

关键词: 青藏高原, 高寒草地, 种-面积曲线, 最小样地面积

To determine the appropriate plot size for estimating plant diversity of different types of alpine grassland on the Qinghai-Tibetan Plateau (QTP), i.e. alpine meadow, alpine steppe and alpine desert, seven models were applied in the examination of species-area relationships. Depending on the optimal species-area relationship curves, the minimum sizes of sampling plot for each type of grassland under healthy and degraded conditions were obtained. The findings were as follows: (1) Non-saturation curve models were most suitable for describing species-area relationships of alpine grasslands on the QTP; (2) For all three types of alpine grassland, the minimum plot size for healthy grasslands was larger than that for degraded ones; (3) Minimum plot sizes for estimating plant diversity were 108 m2 and 82 m2, respectively, for healthy and degraded alpine meadow, 130 m2 and 81 m2, respectively, for healthy and degraded alpine steppe, and 60 m2 and 41 m2, respectively, for healthy and degraded alpine desert.

Key words: Qinghai-Tibetan Plateau, alpine grasslands, species-area relationship, minimum plot size

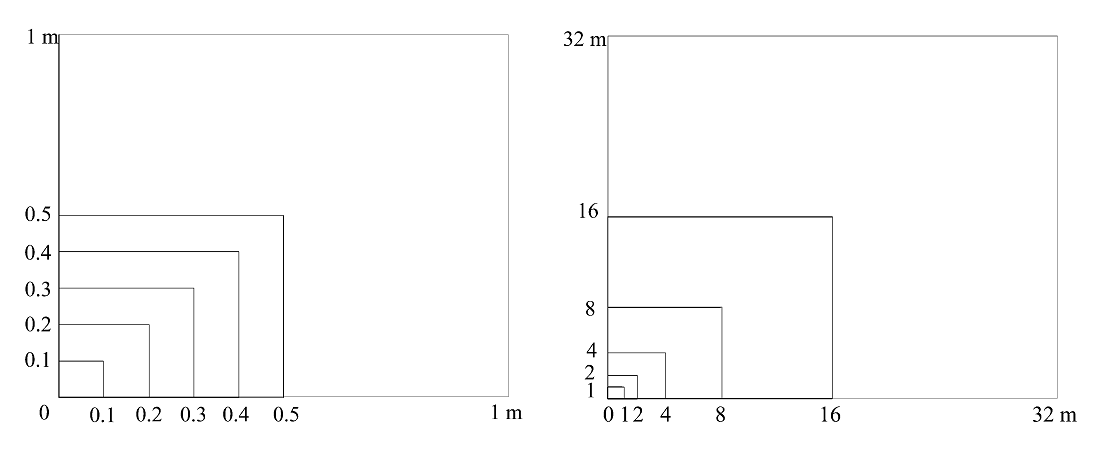

图1

样地种-面积曲线测定的取样示意图"

表1

青藏高原高寒草甸、高寒草原和高寒荒漠3类草地的种-面积曲线拟合结果"

草地类型
Grassland type
健康状况
Health status
方程
Function
a b c F Pr>F R2
高寒草甸
Alpine meadow
健康
Healthy
1 3.441 24.946 - 651.257 <0.0001 0.875
2 6.272 40.071 0.876 423.507 <0.0001 0.871
3 3.451 1,364.587 - 650.831 <0.0001 0.875
4 23.342 0.113 - 482.725 <0.0001 0.832
5 26.939 0.278 41.808 274.171 <0.0001 0.804
6 1.680 0.466 41.638 259.646 <0.0001 0.793
7 217.283 5.588 - 271.118 <0.0001 0.708
退化
Degraded
1 2.769 21.515 - 1,540.854 <0.0001 0.937
2 11.953 69.405 0.732 1,100.360 <0.0001 0.941
3 2.770 2,353.238 - 1,532.933 <0.0001 0.937
4 20.307 0.106 - 846.787 <0.0001 0.886
5 21.343 0.385 34.407 380.051 <0.0001 0.832
6 1.478 0.529 34.447 348.447 <0.0001 0.818
7 238.525 7.376 - 422.309 <0.0001 0.776
高寒草原
Alpine steppe
健康
Healthy
1 1.862 12.181 - 1,427.120 <0.0001 0.947
2 2.991 17.420 0.881 941.193 <0.0001 0.946
3 1.871 658.661 - 1,418.386 <0.0001 0.947
4 11.255 0.124 - 747.963 <0.0001 0.900
5 14.171 0.490 20.504 264.256 <0.0001 0.814
6 2.277 1.836 19.771 240.815 <0.0001 0.797
7 93.693 4.730 - 393.353 <0.0001 0.813
退化
Degraded
1 2.015 13.200 - 353.851 <0.0001 0.870
2 3.554 18.528 0.243 226.514 <0.0001 0.865
3 2.023 670.840 - 352.227 <0.0001 0.870
4 12.174 0.124 - 266.130 <0.0001 0.829
5 15.700 1.006 21.505 110.500 <0.0001 0.730
6 2.280 1.912 21.357 104.383 <0.0001 0.715
7 104.588 4.889 - 171.842 <0.0001 0.740
高寒荒漠
Alpine desert
健康
Healthy
1 0.911 4.119 - 113.059 <0.0001 0.776
2 0.039 1.206 6.395 99.742 <0.0001 0.827
3 1.062 29.764 - 128.208 <0.0001 0.801
4 3.298 0.189 - 156.035 <0.0001 0.834
5 8.207 0.023 10.542 71.423 <0.0001 0.764
6 3.284 0.112 9.667 63.087 <0.0001 0.735
7 2.141 0.221 - 70.931 <0.0001 0.659
退化
Degraded
1 0.367 1.876 - 70.169 <0.0001 0.545
2 0.448 1.911 0.929 44.850 <0.0001 0.527
3 0.387 108.802 - 71.025 <0.0001 0.550
4 1.644 0.156 - 67.907 <0.0001 0.533
5 2.858 0.680 3.477 38.833 <0.0001 0.468
6 4.215 2.275 3.399 38.392 <0.0001 0.463
7 6.695 1.886 - 60.357 <0.0001 0.487

表2

草地植物多样性估测精度和样地面积的关系"

草地类型
Grassland type
健康状况
Health status
最优拟合模型
Optimal function
不同精度下的样地面积
Plot areas under different accuracy (m2)
ρ= 60% ρ= 70% ρ= 80% ρ= 84% ρ= 90%
高寒草甸
Alpine meadow
健康 Healthy S = 24.956 + 3.441* lnA 5 24 108 197 481
退化 Degraded S = (69.405+11.952* lnA)0.732 6 33 210 455 1477
高寒草原
Alpine steppe
健康 Healthy S = 12.181 + 1.862 * lnA 13 61 279 514 1280
退化 Degraded S = 13.200 + 2.015 * lnA 17 81 386 720 1841
高寒荒漠
Alpine desert
健康 Healthy S = 3.298*A0.189 39 88 178 231 332
退化 Degraded S = 0.387*ln(108.802*A+1) 8 23 72 113 220

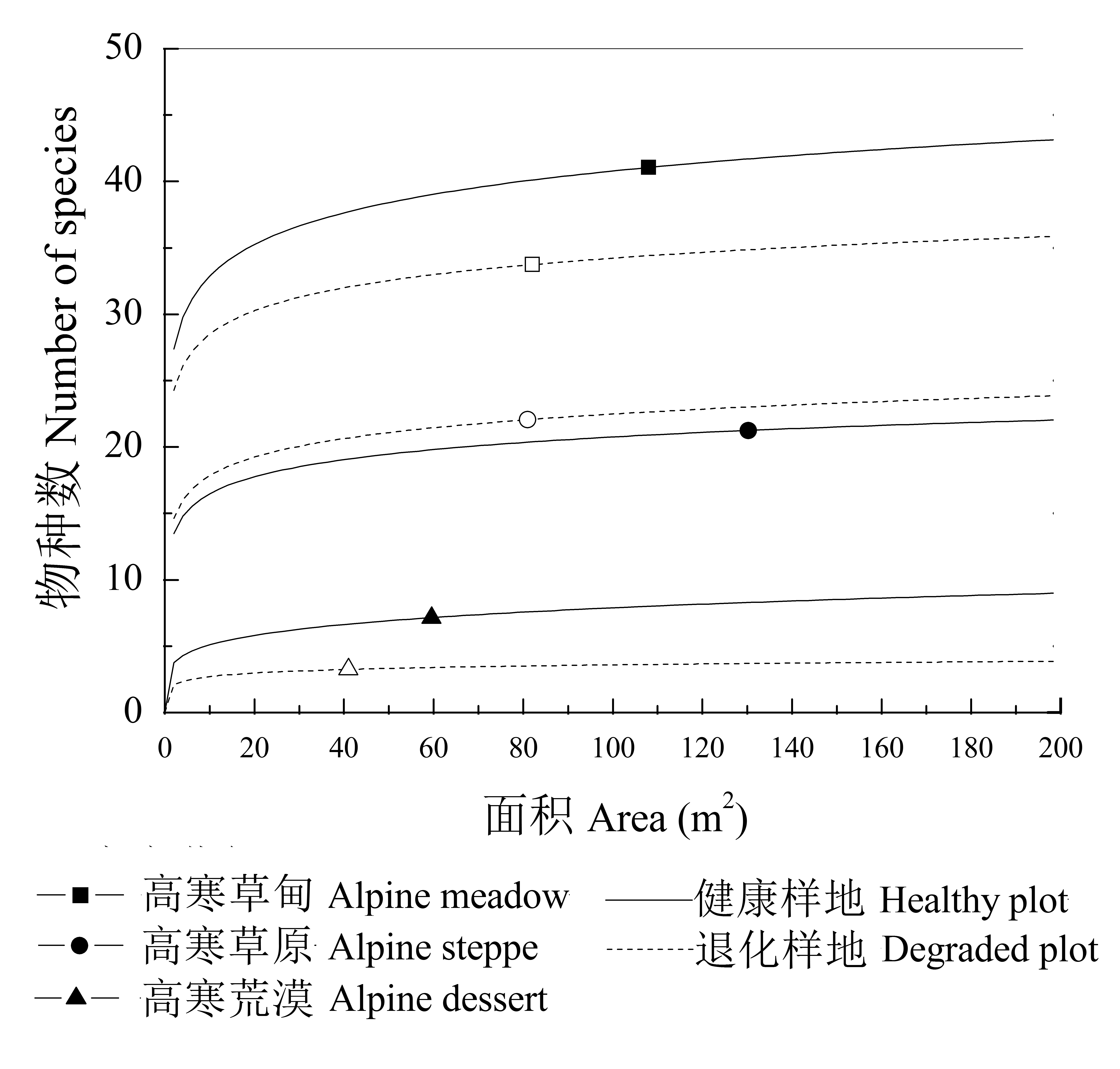

图2

各类草地的种-面积曲线图"

表3

各类草地植物多样性估测的最小样地面积"

草地类型
Grassland type
健康状况
Health status
平均总物种数
Average numbers of
plant species
占总物种比例
Proportions of total
species numbers
最小样地面积
Minimum area of
sampling plots
最小面积处曲线斜率
Slope at the minimum plot size
高寒草甸
Alpine meadow
健康 Healthy 51.33 80% 108 0.03
退化 Degraded 45.00 75% 82 0.03
高寒草原
Alpine steppe
健康 Healthy 28.33 75% 130 0.01
退化 Degraded 31.50 70% 81 0.02
高寒荒漠
Alpine desert
健康 Healthy 11.00 65% 60 0.02
退化 Degraded 4.33 75% 41 0.01
1 Bai YF (白永飞), Li LH (李凌浩), Huang JH (黄建辉), Chen ZZ (陈佐忠) (2001) The influence of plant diversity and functional composition on ecosystem stability of four Stipa communities in the Inner Mongolia Plateau.Acta Botanica Sinica(植物学报), 43, 280-287. (in Chinese with English abstract)
2 Chu CJ, Maestre FT, Xiao S, Weiner J, Wang YS, Duan ZH, Wang G (2008) Balance between facilitation and resource competition determines biomass-density relationships in plant populations.Ecology Letters, 11, 1189-1197.
3 Dong M (董鸣) (1997) Survey, Observation and Analysis of Terrestrial Biocommunities (陆地生物群落调查观测与分析). China Standard Press, Beijing. (in Chinese)
4 Guo ZG (郭正刚), Cheng GD (程国栋), Wang GX (王根绪) (2004a) Plant diversity of alpine Kobresia meadow in the northern region of the Tibetan Plateau.Journal of Glaciology and Geocryology(冰川冻土), 26, 95-100. (in Chinese with English abstract)
5 Guo ZG (郭正刚), Liang TG (梁天刚), Liu XY (刘兴元), Zhang HJ (张洪江) (2003) Species diversity of grassland communities in the Aletai region of the northern Xinjiang Province.Acta Botanica Boreali-Occidentalia Sinica(西北植物学报), 23, 1719-1724. (in Chinese with English abstract)
6 Guo ZG (郭正刚), Wang GX (王根绪), Shen YY (沈禹颖), Cheng GD (程国栋) (2004b) Plant species diversity of grassland plant communities in permafrost regions of the Northern Qinghai-Tibetan Plateau.Acta Ecologica Sinica(生态学报), 24, 149-155. (in Chinese with English abstract)
7 Huang Y (黄莹), Wang J (王娟) (2008) The research on determination of the minimum sampling area of community.Shandong Forestry Science and Technology(山东林业科技), (1), 97-98. (in Chinese with English abstract)
8 Hutchings MJ (1983) Plant diversity in four chalk grassland sites with different aspects.Vegetatio, 53, 179-187.
9 Kallimanis AS, Halley JM, Vokou D, Sgardelis SP (2008) The scale of analysis determines the spatial pattern of woody species diversity in the Mediterranean environment.Plant Ecology, 196, 143-151.
10 Kazakis G, Ghosn D, Vogiatzakis IN, Papanastasis VP (2007) Vascular plant diversity and climate change in the alpine zone of the Lefka Ori, Crete.Biodiversity and Conservation, 16, 1603-1615.
11 Li DS (李东胜), Guo WJ (郭万军), Xu ZQ (许中旗), Wang Y (王妍), Xu CL (徐成立), Huang XR (黄选瑞), Ji XL (纪晓林) (2008) The impact of sample area and sample amount on the results of community species diversity measure: a case study with the shrub community in the west region of Yanshan Mountain.Acta Agriculturae Universitatis Jiangxiensis(江西农业大学学报), 30, 1079-1084. (in Chinese with English abstract)
12 Li FX (李凤霞), Zhang DG (张德罡) (2005) Indicators and recovery approaches of degenerated grassland in China.Grassland and Turf(草原与草坪), (1), 24-28. (in Chinese with English abstract)
13 Li X (李霞), Tang J (唐金), Wan HM (万红梅) (2011) Minimum sampling area for desert riparian forest community in lower reaches of Tarim River.Journal of Desert Research(中国沙漠), 31, 1221-1225. (in Chinese with English abstract)
14 Liu XN (柳小妮), Sun JL (孔九林), Zhang DG (张德罡), Pu XP (蒲小鹏), Xu GP (徐广平) (2008) A study on the community structure and plant diversity of alpine meadow under different degrees of degradation in the Eastern Qilian Mountains.Acta Prataculturae Sinica(草业学报), 17, 1-11. (in Chinese with English abstract)
15 Ma SL (马生林) (2008) It is urgent to protect the biodiversity of the Qinghai-Tibet Plateau. In: National Biodiversity Conservation and Exotic Harmful Species Prevention Seminar (全国生物多样性保护及外来有害物种防治交流研讨会论文集), pp. 76-78. , accessed on April 10, 2013. (in Chinese)
16 Ministry of Agriculture of the People’s Republic of China (中华人民共和国农业部) (1997) Grassland Resources in China (中国草地资源). China Science and Technology Press, Beijing. (in Chinese)
17 Namgail T, Rawat GS, Mishra C, Wieren SE, Prins HHT (2012) Biomass and diversity of dry alpine plant communities along altitudinal gradients in the Himalayas.Journal of Plant Research, 125, 93-101.
18 Ren XM (任学敏), Yang GH (杨改河), Wang DY (王得祥), Qin XW (秦晓威), Liu ZX (刘振学), Zhao SX (赵双喜), Bai Y (白宇) (2011) Minimum sampling areas for shrub and herb layers of several types of plant communities in Taibai Mountain.Acta Botanica Boreali-Occidentalia Sinica(西北植物学报), 31, 1024-1031. (in Chinese with English abstract)
19 Stohlgren TJ, Bull KA, Otsuki Y (1998) Comparison of rangeland vegetation sampling techniques in the Central Grasslands.Journal of Rangeland Management, 51, 164-172.
20 Stohlgren TJ, Chong GW, Kalkhan MA, Schell LD (1997a) Multiscale sampling of plant diversity: effects of minimum mapping unit size.Ecological Applications, 7, 1064-1074.
21 Stohlgren TJ, Coughenour MB, Chong GW, Binkley D, Kalkhan MA, Schell LD, Buckley DJ, Berry JK (1997b) Landscape analysis of plant diversity.Landscape Ecology, 12, 155-170.
22 Tang L (唐龙), Hao WF (郝文芳), Sun HG (孙洪罡), Liang ZS (梁宗锁) (2005) Fitting and assessment of species-area curves of four native pasture communities on Loess Plateau.Agricultural Research in the Arid Areas(干旱地区农业研究), 23(4), 83-88. (in Chinese with English abstract)
23 Wang CT (王长庭), Long RJ (龙瑞军), Ding LM (丁路明) (2004) The effects of differences in functional group diversity and composition on plant community productivity in four types of alpine meadow communities.Biodiversity Science(生物多样性), 12, 403-409. (in Chinese with English abstract)
24 Wang CT (王长庭), Long RJ (龙瑞军), Wang QL (王启兰), Cao GM (曹广民), Shi JJ (施建军), Du YG (杜岩功) (2008) Response of plant diversity and productivity to soil resources changing under grazing disturbance on an alpine meadow.Acta Ecologica Sinica(生态学报), 28, 4144-4152. (in Chinese with English abstract)
25 Wang SP, Duan JC, Xu GP, Wang YF, Zhang ZH, Rui YC, Luo CY, Xu B, Zhu XX, Chang XF, Cui XY, Niu HS, Zhao XQ, Wang WY (2012) Effects of warming and grazing on soil N availability, species composition, and a NPP in an alpine meadow.Ecology, 93, 2365-2376.
26 Wang WY, Wang QJ, Wang HC (2006) The effect of land management on plant community composition, species diversity, and productivity of alpine Kobersia steppe meadow.Ecological Research, 21, 181-187.
27 Wang ZG (王志高), Ye WH (叶万辉), Cao HL (曹洪麟), Lian JY (练琚愉) (2008) Spatial distribution of species diversity indices in a monsoon evergreen broadleaved forest at Dinghushan Mountain.Biodiversity Science(生物多样性), 16, 454-461. (in Chinese with English abstract)
28 Wen L (温璐), Dong SK (董世魁), Zhu L (朱磊), Shi JJ (施建军), Liu DM (刘德梅), Wang YL (王彦龙), Ma YS (马玉寿) (2011) The effect of natural factors and disturbance intensity on spacial heterogeneity of plant diversity in alpine meadow.Acta Ecologica Sinica(生态学报), 31, 1844-1854. (in Chinese with English abstract)
29 Xing XJ (星学军) (2009) Investigation and analysis of grassland characteristics on degraded alpine meadow in the Three River Source Region. Heilongjiang Animal Science and Veterinary Medicine (Science and Technology) (黑龙江畜牧兽医(科技版)), 9, 50-51. (in Chinese)
30 Xu YF (许岳飞), Yixi-Cuomu (益西措姆), Fu JJ (付娟娟), Chen H (陈浩), Miao YJ (苗彦军), Chen J (陈俊), Hu TM (呼天明), Shan JG (镡建国) (2012) Response of plant diversity and soil nutrient to grazing intensity in Kobresia pygmaea meadow of Qinghai-Tibetan Plateau.Acta Agrestia Sinica(草地学报), 20, 1026-1032. (in Chinese with English abstract)
31 Yang C (杨持), Bao R (宝荣) (1986) Optimum sampling area for the studies of distribution pattern in Aneurolepidium chinensis steppe community.Acta Ecologica Sinica(生态学报), 6, 324-329. (in Chinese with English abstract)
32 Yang DL (杨殿林), Han GD (韩国栋), Hu YG (胡跃高), Wuyun-gerile (乌云格日勒) (2006) Effects of grazing intensity on plant diversity and aboveground biomass of Stipa baicalensis grassland.Chinese Journal of Ecology(生态学杂志), 25, 1470-1475. (in Chinese with English abstract)
33 Yang ZL, Powell JR, Zhang CH, Du GZ (2012) The effect of environmental and phylogenetic drivers on community assembly in an alpine meadow community.Ecology, 93, 2321-2328.
34 Yang ZS (杨子松), Li YX (黎云祥), Liu W (刘伟), Wu TD (吴天德), Wang ZG (王中国) (2010) Fitting of species-area relationship and determination of minimum sampling area for plant communities on barren hillsides of arid valley in the upper reaches of the Minjiang River.Journal of Ecology and Rural Environment(生态与农村环境学报), 26, 227-230. (in Chinese with English abstract)
35 Zhang JZ (张忠华), Hu G (胡刚), Zhu JD (祝介东), Ni J (倪健) (2012) Scale-dependent spatial variation of species abundance and richness in two mixed evergreen-deciduous broad-leaved karst forests.Acta Ecologica Sinica(生态学报), 32, 5663-5672. (in Chinese with English abstract)
36 Zhou HK (周华坤), Zhao XQ (赵新全), Wen J (温军), Chen Z (陈哲), Yao BQ (姚步青), Yang YW (杨元武), Xu WX (徐维新), Duan JC (段吉闯) (2012) The characteristics of soil and vegetation of degenerated alpine steppe in the Yellow River Source Region.Acta Prataculturae Sinica(草业学报), 21(5), 1-11. (in Chinese with English abstract)
37 Zhu JM (朱锦懋), Jiang ZL (姜志林) (1999) The modifiable areal unit problem of species diversity in the forest community of northern Fujian Province.Acta Ecologica Sinica(生态学报), 19, 304-311. (in Chinese with English abstract)
