江苏盐城滨海地区风机对鸟类的影响

doi:10.17520/biods.2022173

生物多样性 ›› 2022, Vol. 30 ›› Issue (11): 22173. DOI: 10.17520/biods.2022173 cstr: 32101.14.biods.2022173

所属专题：美丽中国建设

• 研究报告: 动物多样性 • 上一篇下一篇

江苏盐城滨海地区风机对鸟类的影响

张立博¹, 李春荣², 陈国远², 刘方正¹, 罗建武¹, 周越¹, 冯春婷¹, 王伟¹^,^*()

1.中国环境科学研究院生态研究所, 北京 100012
2.江苏盐城国家级珍禽自然保护区管理处, 江苏盐城 224002

收稿日期:2022-04-08 接受日期:2022-08-23 出版日期:2022-11-20 发布日期:2022-11-09
通讯作者: 王伟
作者简介:* E-mail: wang.wei@craes.org.cn
基金资助:
国家重点研发计划课题(2022YFF1301405)

Impact of wind turbines on birds in the coastal area of Yancheng, Jiangsu, China

Libo Zhang¹, Chunrong Li², Guoyuan Chen², Fangzheng Liu¹, Jianwu Luo¹, Yue Zhou¹, Chunting Feng¹, Wei Wang¹^,^*()

1. Institute of Ecology, Chinese Research Academy of Environmental Sciences, Beijing 100012
2. Yancheng National Rare Waterfowls Nature Reserve in Yancheng, Jiangsu 224002

Received:2022-04-08 Accepted:2022-08-23 Online:2022-11-20 Published:2022-11-09
Contact: Wei Wang

摘要/Abstract

摘要：

近年来我国风力发电发展迅速, 已有研究发现风电工程会对鸟类多样性产生不同程度的影响。然而, 过去的研究多以区域内鸟类常规调查为主, 未直接对风机致死鸟类进行长期系统的调查监测, 也未进一步探究风机致死可能的方式和原因, 从而难以根据风机致死鸟类的实际情况提出有针对性的防范措施和应对方法。本文以江苏盐城滨海地区风电场为例, 基于2020年10月至2021年9月共22次连续的调查监测, 应用尸体搜索法调查了研究区域内风机致死鸟类的情况。结果表明: (1)风机下发现的死亡鸟类有8目10科12种, 死亡鸟类主要为留鸟或已在研究区域内繁殖的种类, 占死亡鸟类种类的66.7%; (2)风机下共发现死亡鸟类41只, 环颈雉(Phasianus colchicus)死亡数量最多, 有19只, 大部分位于农田及农田防护林中; 夜鹭(Nycticorax nycticorax)和白鹭(Egretta garzetta)死亡数量也较多, 共11只, 主要位于鱼塘中; (3)通过对风机下死亡鸟类的情况分析发现, 在风机基座比风机扇叶造成的碰撞致死情况多。最后, 本文提出了减缓风机对鸟类影响的措施和建议, 包括持续开展鸟类监测, 及时开展风机下生境的治理, 加强鸟类相关驱避技术装备研发等, 为我国风电与生态环境保护之间的协调发展提供参考。

关键词: 风机, 鸟撞, 致死原因, 监测, 减缓措施

Abstract

Aims: In recent years, wind power generation has been developing rapidly in China, and studies have found that wind power projects have varifying degrees of impact on bird diversity. However, previous studies primarily adopted traditional survey methods of birds in the region, without conducting long-term systematic monitoring of birds killed by wind turbines. Little is known about the possible causes of wind turbine mortality. Thus, it is difficult to propose targeted mitigation measures based on the actual causes of birds being killed by wind turbines.

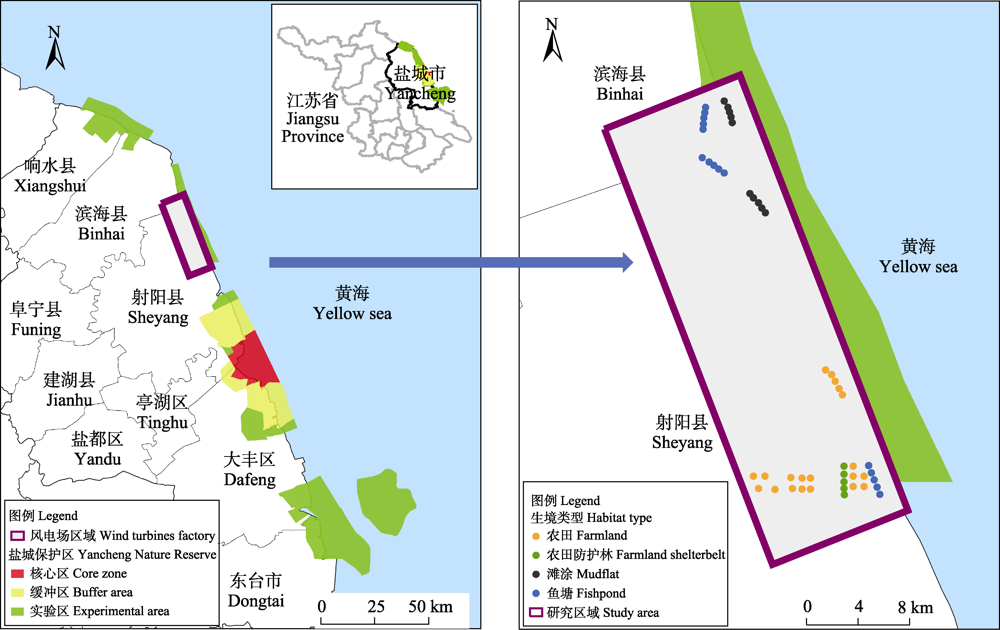

Methods: In this paper, our study area was the wind turbines factory in the coastal area of Yancheng, Jiangsu Province. The carcass search method was applied to investigate the wind turbine mortality of birds in the study area. We conducted a total of 22 consecutive surveys from October 2020 to September 2021 to explored bird mortality from wind turbines.

Results: (1) There were 12 species in 8 orders and 10 families that were found dead under the wind turbines. The dead birds were primarily native birds or species that breed in the region, accounting for 66.7% of the dead bird species. (2) A total of 41 dead birds were found under the wind turbines. The most common were ring-necked pheasants (Phasianus colchicus) at 19 individuals, which were generally found in farmland or agricultural protection forest. Dead night herons (Nycticorax nycticorax) and egrets (Egretta garzetta) were also common, with 6 and 5 individuals found, respectively, and were generally found in near fishponds. (3) Based on the injuries of the dead birds, it was concluded that the bases of the wind turbines caused more collisions resulting in death than the fan blades.

Conclusion: According to our study, we proposed the following suggestions to mitigate the impact of wind turbines on birds. These suggestions include continuous bird monitoring, controlling habitats under wind turbines, and strengthening the research and development of bird-related repellent technology and equipment. We hope this study can provide a reference for the coordinated development between wind power and ecological environmental protection in China.

Key words: wind turbines, bird collisions, causes of mortality, monitoring, mitigating measures

张立博, 李春荣, 陈国远, 刘方正, 罗建武, 周越, 冯春婷, 王伟 (2022) 江苏盐城滨海地区风机对鸟类的影响. 生物多样性, 30, 22173. DOI: 10.17520/biods.2022173.

Libo Zhang, Chunrong Li, Guoyuan Chen, Fangzheng Liu, Jianwu Luo, Yue Zhou, Chunting Feng, Wei Wang (2022) Impact of wind turbines on birds in the coastal area of Yancheng, Jiangsu, China. Biodiversity Science, 30, 22173. DOI: 10.17520/biods.2022173.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.biodiversity-science.net/CN/10.17520/biods.2022173

https://www.biodiversity-science.net/CN/Y2022/V30/I11/22173

图/表 4

参考文献 26

[1]	Allison TD, Diffendorfer JE, Baerwald EF, Beston JQ, Drake D, Hale AM, Hein CD, Huso MMP, Loss SR, Lovich JE, Strickland DM, Williams KA, Winder VL (2019) Impacts to Wildlife of Wind Energy Siting and Operation in the United States. Ecological Society of American Washington, Washington, DC.
[2]	Arnett EB, Brown WK, Erickson WP, Fiedler JK, Hamilton BL, Henry TH, Jain A, Johnson GD, Kerns J, Koford RR, Nicholson CP, O’connell TJ, Piorkowski MD, Tankersley RD Jr (2008) Patterns of bat fatalities at wind energy facilities in North America. The Journal of Wildlife Management, 72, 61-78.
[3]	Bai Y, Zhao XY (2021) China’s installed wind power grid-connected capacity exceeds 300 million kilowatts. People’s Daily, 2021-12-11( 04). (in Chinese with English abstract)
	[白宇, 赵欣悦 (2021) 我国风电并网装机容量突破3亿千瓦. 人民日报, 2021-12-11( 04).]
[4]	Barrios L, Rodríguez A (2004) Behavioural and environmental correlates of soaring-bird mortality at on-shore wind turbines. Journal of Applied Ecology, 41, 72-81.
[5]	Bennun L, van Bochove J, Ng C, Fletcher C, Wilson D, Phair N, Carbone G (2021) Mitigating Biodiversity Impacts Associated with Solar and Wind Energy Development: Guidelines for Project Developers. International Union for Conservation of Nature, Gland, Switzerland.
[6]	Cai GW, Yuan QM, Liang JC, Wei L, Cai J, Ding ZF (2021) Bird diversity and its responses to wind turbines at the Lianzhou Wind Power Plant, Guangdong. Sichuan Animals, 40, 558-567.
	[蔡国威, 袁倩敏, 梁健超, 魏龙, 蔡坚, 丁志锋 (2021) 广东连州风电场鸟类多样性及其对风机的响应. 四川动物, 40, 558-567.]
[7]	Chen HL, Jing MM (2019) The impact of large-scale utilization of wind energy on environment. China Southern Agricultural Machinery, 50, 131-132.
	[陈洪林, 敬曼曼 (2019) 风能大规模利用对环境的影响. 南方农机, 50, 131-132.]
[8]	de Lucas M, Ferrer M, Bechard MJ, Muñoz AR (2012) Griffon vulture mortality at wind farms in southern Spain: Distribution of fatalities and active mitigation measures. Biological Conservation, 147, 184-189.
[9]	Ding ZF, Liang JC, Cai J, Wei L (2021) Resident breeding bird responses to wind turbines: A functional and phylogenetic perspective. Chinese Journal of Applied Ecology, 32, 3136-3144. (in Chinese with English abstract)
	[丁志锋, 梁健超, 蔡坚, 魏龙 (2021) 基于功能和谱系视角分析繁殖留鸟对风机的响应. 应用生态学报, 32, 3136-3144.] DOI
[10]	Hunt WG (2001) Continuing studies of golden eagles at Altamont Pass. In: Proceedings of the National Avian-Wind Power Planning Meeting IV, Carmel, CA, May 16-17, 2000 (ed. Schwartz SS). RESOLVE Inc., Washington, DC,
[11]	Huso M, Conkling T, Dalthorp D, Davis M, Smith H, Fesnock A, Katzner T (2021) Relative energy production determines effect of repowering on wildlife mortality at wind energy facilities. Journal of Applied Ecology, 58, 1284-1290.
[12]	Jiang JX, Yang LW, Li ZC, Gao XQ (2019) Progress in the research on the impact of wind farms on climate and environment. Advances in Earth Science, 34, 1038-1049. (in Chinese with English abstract)
	[蒋俊霞, 杨丽薇, 李振朝, 高晓清 (2019) 风电场对气候环境的影响研究进展. 地球科学进展, 34, 1038-1049.] DOI
[13]	Jiang ZG, Jiang JP, Wang YZ, Zhang E, Zhang YY, Li LL, Xie F, Cai B, Cao L, Zheng GM, Dong L, Zhang ZW, Ding P, Luo ZH, Ding CQ, Ma ZJ, Tang SH, Cao WX, Li CW, Hu HJ, Ma Y, Wu Y, Wang YX, Zhou KY, Liu SY, Chen YY, Li JT, Feng ZJ, Wang Y, Wang B, Li C, Song XL, Cai L, Zang CX, Zeng Y, Meng ZB, Fang HX, Ping XG (2016) Red List of China’s Vertebrates. Biodiversity Science, 24, 500-551. (in Chinese and in English)
	[蒋志刚, 江建平, 王跃招, 张鹗, 张雁云, 李立立, 谢锋, 蔡波, 曹亮, 郑光美, 董路, 张正旺, 丁平, 罗振华, 丁长青, 马志军, 汤宋华, 曹文宣, 李春旺, 胡慧建, 马勇, 吴毅, 王应祥, 周开亚, 刘少英, 陈跃英, 李家堂, 冯祚建, 王燕, 王斌, 李成, 宋雪琳, 蔡蕾, 臧春鑫, 曾岩, 孟智斌, 方红霞, 平晓鸽 (2016) 中国脊椎动物红色名录. 生物多样性, 24, 500-551.] DOI
[14]	Katzner TE, Nelson DM, Diffendorfer JE, Duerr AE, Campbell CJ, Leslie D, Vander Zanden HB, Yee JL, Sur M, Huso MMP, Braham MA, Morrison ML, Loss SR, Poessel SA, Conkling TJ, Miller TA (2019) Wind energy: An ecological challenge. Science, 366, 1206-1207. DOI PMID
[15]	Krijgsveld KL, Akershoek K, Schenk F, Dijk F, Dirksen S (2009) Collision risk of birds with modern large wind turbines. Ardea, 97, 357-366.
[16]	Liu YQ, Zhao H (2017) Investigation on bird strike in wind farm in bird sensitive area in Yunnan Province. Environmental Science Survey, 36, 167-169. (in Chinese with English abstract)
	[刘越强, 赵华 (2017) 云南鸟类敏感区域已建风电场鸟撞影响调查. 环境科学导刊, 36, 167-169.]
[17]	Loss SR, Will T, Marra PP (2013) Estimates of bird collision mortality at wind facilities in the contiguous United States. Biological Conservation, 168, 201-209.
[18]	Martin L (2010) Wind energy-the facts: A guide to the technology, economics and future of wind power. Journal of Cleaner Production, 18, 1122-1123.
[19]	National Forestry and Grassland Administration, Ministry of Agriculture and Rural Affairs of the People’s Republic of China (2021) Lists of Wild Animals under Special State Protection in China. Chinese Journal of Wildlife, (02), 605-640. (in Chinese)
	[ 国家林业和草原局,农业农村部 (2021) 《国家重点保护野生动物名录》. 野生动物学报, (02), 605-640.]
[20]	Qi T (2016) Analysis of the impact of wind farms on ecological environment. Science and Technology, 26(35), 243. (in Chinese)
	[戚涛 (2016) 风力发电场对生态环境的影响分析. 科技展望, 26(35), 243.]
[21]	Shi B, Ding L, Xu LY, Hu W, Zheng LF (2014) Influence of Donghai Bridge offshore wind farm on bird composition. Chinese Journal of Ecology, 33, 1068-1075. (in Chinese with English abstract)
	[施蓓, 丁玲, 徐凌云, 胡伟, 郑磊夫 (2014) 东海大桥海上风电场对鸟类组成的影响. 生态学杂志, 33, 1068-1075.]
[22]	Shi DY, Liao SY, Zhu L, Li BB (2022) Review on bird-building collisions and the case study of a systematic survey in China. Biodiversity Science, 30, 21321. (in Chinese with English abstract) DOI
	[史丹阳, 廖书跃, 朱磊, 李彬彬 (2022) 鸟撞建筑现象概述及系统性调研案例分析. 生物多样性, 30, 21321.] DOI
[23]	Wang GX, Zhu ZW, Chen JQ, Chen H, Liu JE (2017) Yancheng Coastal Wetlands:Report of A Comprehensive Scientific Study of the Jiangsu Yancheng Wetland Rare Bird National Nature Reserve. Science Press, Beijing. (in Chinese)
	[王国祥, 朱照伟, 陈建琴, 陈浩, 刘金娥 (2017) 盐城沿海湿地: 江苏盐城湿地珍禽国家级自然保护区综合科学考察报告. 科学出版社, 北京.]
[24]	Wang SF, Wang SC, Smith P (2015) Ecological impacts of wind farms on birds: Questions, hypotheses, and research needs. Renewable and Sustainable Energy Reviews, 44, 599-607.
[25]	Xu XZ, Zheng YF, Yang LH, Lü SC (2010) Influence of wind power field on birds in Yancheng Wetland Rare Bird National Nature Reserve. Chinese Journal of Ecology, 29, 560-565. (in Chinese with English abstract)
	[许遐祯, 郑有飞, 杨丽慧, 吕士成 (2010) 风电场对盐城珍禽国家级自然保护区鸟类的影响. 生态学杂志, 29, 560-565.]
[26]	Zhu YK, Li YD, Lou YQ, Zhou J, Sun YH (2016) Impact of wind farm on birds and the mitigation strategies. Chinese Journal of Zoology, 51, 682-691. (in Chinese with English abstract)
	[朱永可, 李阳端, 楼瑛强, 周江, 孙悦华 (2016) 风力发电对鸟类的影响以及应对措施. 动物学杂志, 51, 682-691.]

物种名 Species name	居留类型 Resident type					中国红色名录濒危等级 China red list endangerment level	国家重点保护物种等级 Level of key protected wild animals in China	死亡鸟类数量 Number of dead birds
物种名 Species name	R	S	W	P	*	中国红色名录濒危等级 China red list endangerment level	国家重点保护物种等级 Level of key protected wild animals in China	死亡鸟类数量 Number of dead birds
白腹鸫 Turdus pallidus			+	+		LC	-	1
白鹭 Egretta garzetta		+	+	+	+	LC	-	5
鹗 Pandion haliaetus			+	+		NT	Ⅱ	1
灰背鸫 Turdus hortulorum				+		LC	-	1
喜鹊 Pica pica	+				+	LC	-	1
蓝翡翠 Halcyon pileata				+		LC	-	1
珠颈斑鸠 Streptopelia chinensis	+				+	LC	-	3
棕背伯劳 Lanius schach	+				+	LC	-	1
夜鹭 Nycticorax nycticorax		+	+		+	LC	-	6
环颈雉 Phasianus colchicus	+				+	LC	-	19
红角鸮 Otus sunia	+				+	LC	Ⅱ	1
黑水鸡 Gallinula chloropus		+			+	LC	-	1

物种名 Species name	居留类型 Resident type					中国红色名录濒危等级 China red list endangerment level	国家重点保护物种等级 Level of key protected wild animals in China	死亡鸟类数量 Number of dead birds
物种名 Species name	R	S	W	P	*	中国红色名录濒危等级 China red list endangerment level	国家重点保护物种等级 Level of key protected wild animals in China	死亡鸟类数量 Number of dead birds
白腹鸫 Turdus pallidus			+	+		LC	-	1
白鹭 Egretta garzetta		+	+	+	+	LC	-	5
鹗 Pandion haliaetus			+	+		NT	Ⅱ	1
灰背鸫 Turdus hortulorum				+		LC	-	1
喜鹊 Pica pica	+				+	LC	-	1
蓝翡翠 Halcyon pileata				+		LC	-	1
珠颈斑鸠 Streptopelia chinensis	+				+	LC	-	3
棕背伯劳 Lanius schach	+				+	LC	-	1
夜鹭 Nycticorax nycticorax		+	+		+	LC	-	6
环颈雉 Phasianus colchicus	+				+	LC	-	19
红角鸮 Otus sunia	+				+	LC	Ⅱ	1
黑水鸡 Gallinula chloropus		+			+	LC	-	1

生境类型 Habitat type	风机点位数量 Number of wind turbine sites	死亡鸟类数量 Number of dead birds	每个风机点位平均死亡鸟类数量 Average number of dead birds per wind turbine site
农田 Farmland	20	19	0.95
农田防护林 Farmland shelterbelt	5	7	1.4
鱼塘 Fishpond	15	15	1
滩涂 Mudflat	10	0	0

生境类型 Habitat type	风机点位数量 Number of wind turbine sites	死亡鸟类数量 Number of dead birds	每个风机点位平均死亡鸟类数量 Average number of dead birds per wind turbine site
农田 Farmland	20	19	0.95
农田防护林 Farmland shelterbelt	5	7	1.4
鱼塘 Fishpond	15	15	1
滩涂 Mudflat	10	0	0
