Patterns and environmental drivers of the butterfly diversity in the western region of Qinling Mountains

doi:10.17520/biods.2022272

Abstract

Abstract:

Aims: The present work aims to analyze the environmental drivers of diversity in the butterfly community in the western Qinling Mountains.

Methods: In the autumn of 2020 and spring and summer of 2021, we investigated butterfly diversity in the western region of Qinling Mountains using line transects across multiple habitat types in 15 sampling areas. We used trend and extrapolation analyses for estimating α diversity, and non-metric multidimensional scaling (NMDS) and cluster analyses for β diversity. For determining drivers of butterfly diversity, we fit environmental factors to diversity indices using a generalized additive model (GAM).

Results: We observed a total of 8,898 individuals representing 169 species, 84 genera, and 5 families. Of these families, the highest number of individuals were from Pieridae (N = 3,671), and the most number of species were from Nymphalidae (N = 80). We found that α diversity was highest during the summer and in coniferous and broad-leaved forests. For β diversity, we found the highest degree of similarity between coniferous and broad-leaved forest and deciduous broad-leaved forest, the low similarity between seasons, and that species are concentrated in spring and summer but relatively dispersed in autumn. The GAM fitted curves demonstrated several key relationships between environmental factors and butterfly diversity, including: (1) plant heterogeneity was correlated with butterfly community diversity; (2) an ambient temperature between 24℃ and 30℃ underlined a higher Pielou evenness index and a more stable butterfly community structure; and (3) humidity between 70% and 85% was associated with a higher Simpson index.

Conclusion: Butterfly community composition and diversity in the western region of Qinling Mountains were closely related to habitat type and have a distinct chronological relationship with seasons. Plant cover, abundance, humidity, and temperature are important factors in maintaining the diversity of butterfly species on a regional scale.

Key words: butterfly, species diversity, community composition, habitat, season, Qinling Mountains

Chao Zhang, Juan Li, Haiyun Cheng, Jiachong Duan, Zhao Pan. Patterns and environmental drivers of the butterfly diversity in the western region of Qinling Mountains[J]. Biodiv Sci, 2023, 31(1): 22272.

Add to citation manager EndNote|Ris|BibTeX

URL: https://www.biodiversity-science.net/EN/10.17520/biods.2022272

https://www.biodiversity-science.net/EN/Y2023/V31/I1/22272

Figures/Tables 8

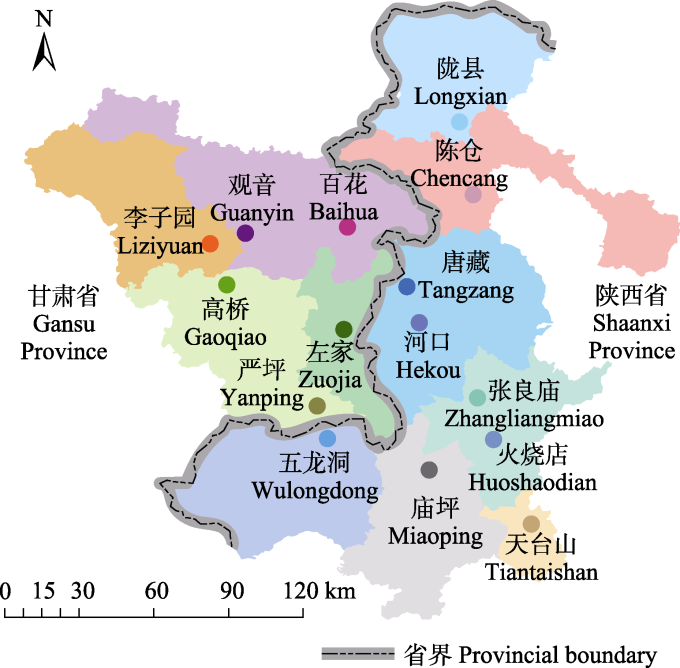

Fig. 1 Sampling areas of investigation

Table 1 Species composition and individual number of butterfly community in the western region of Qinling Mountains

科 Families	属 Genera	种 Species	个体数 Individuals	百分比 Percent (%)
蛱蝶科 Nymphalidae	37	80	2,465	27.70
粉蝶科 Pieridae	9	28	3,671	41.26
凤蝶科 Papilionidae	6	15	626	7.04
弄蝶科 Hesperiidae	16	23	329	3.70
灰蝶科 Lycaenidae	16	23	1,807	20.30
合计 Total	84	169	8,898	100

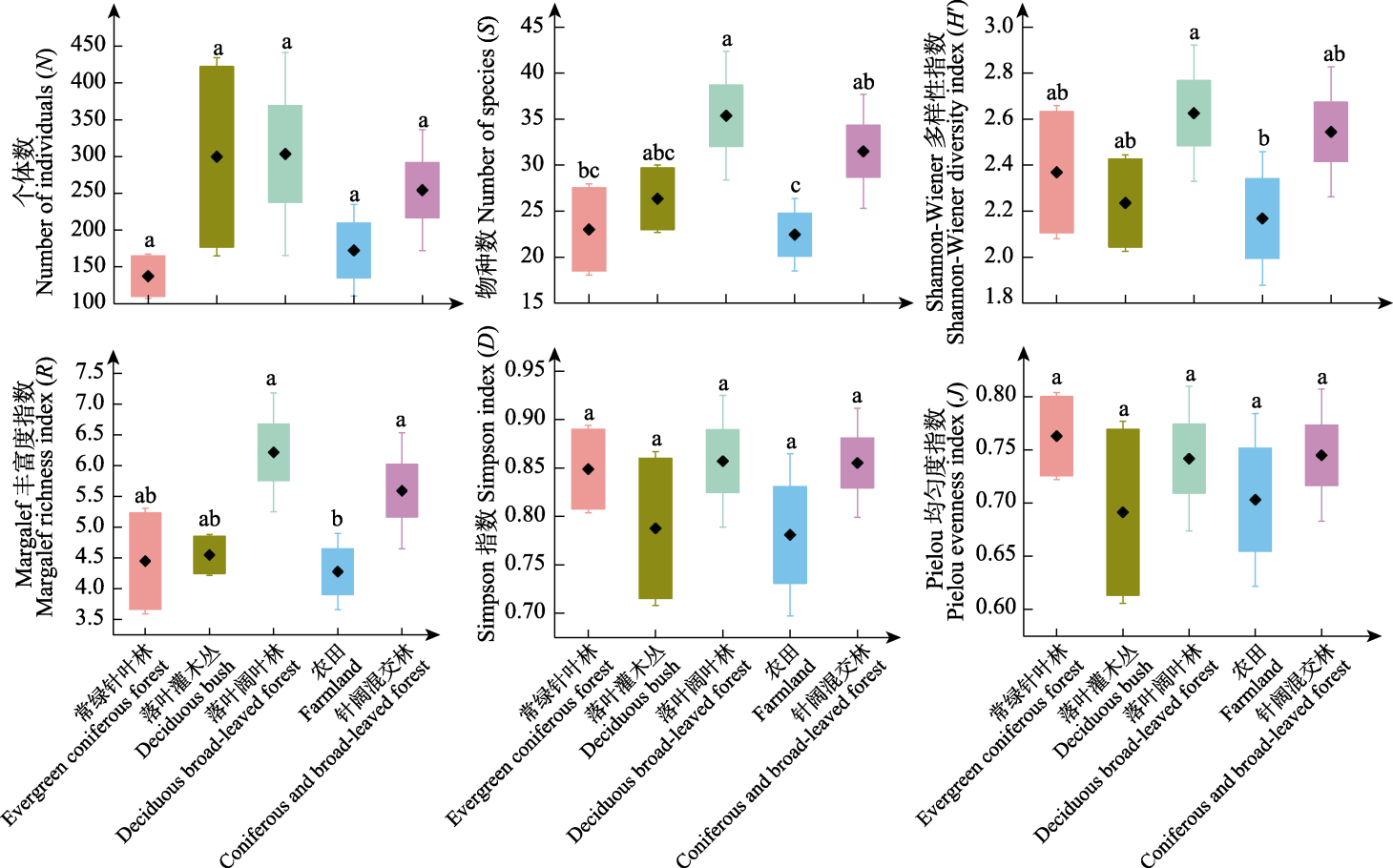

Fig.2 Species diversity of butterflies under different habitats in the western region of Qinling Mountains. Different lowercase letters indicate significant differences in different habitats for diversity index.

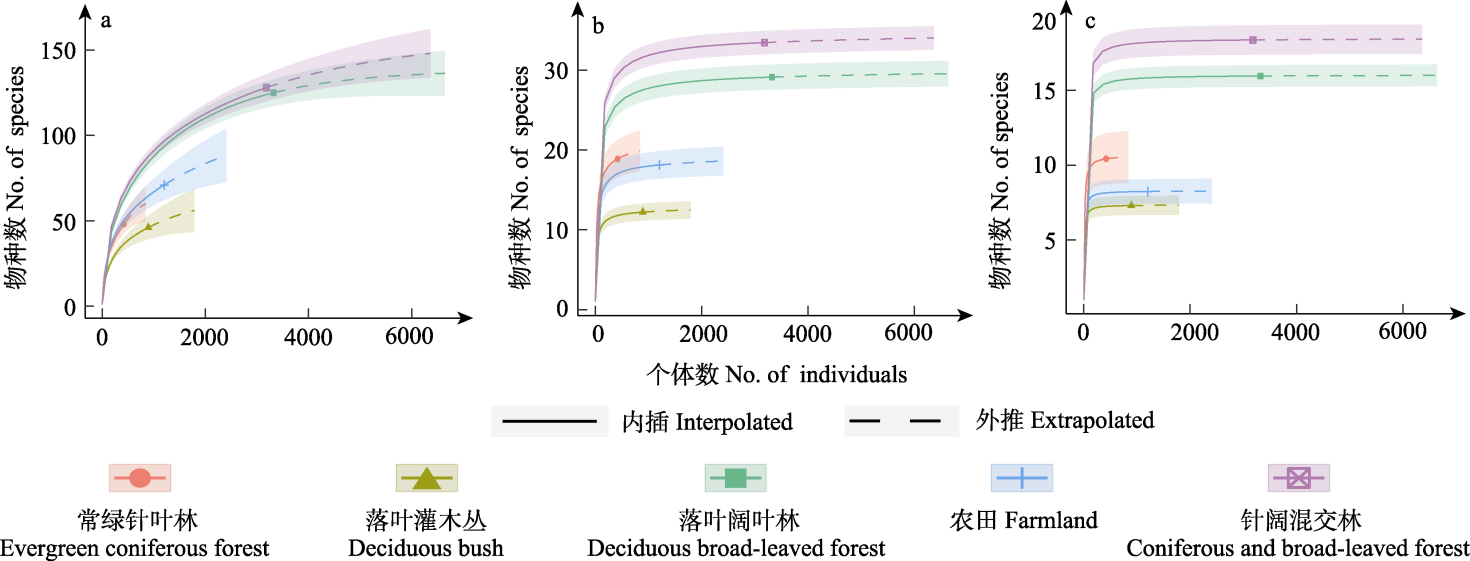

Fig. 3 Species diversity extrapolated analysis results of butterflies under different habitats in the western region of Qinling Mountains. (a) Species richness; (b) Shannon-Wiener diversity; (c) Simpson diversity.

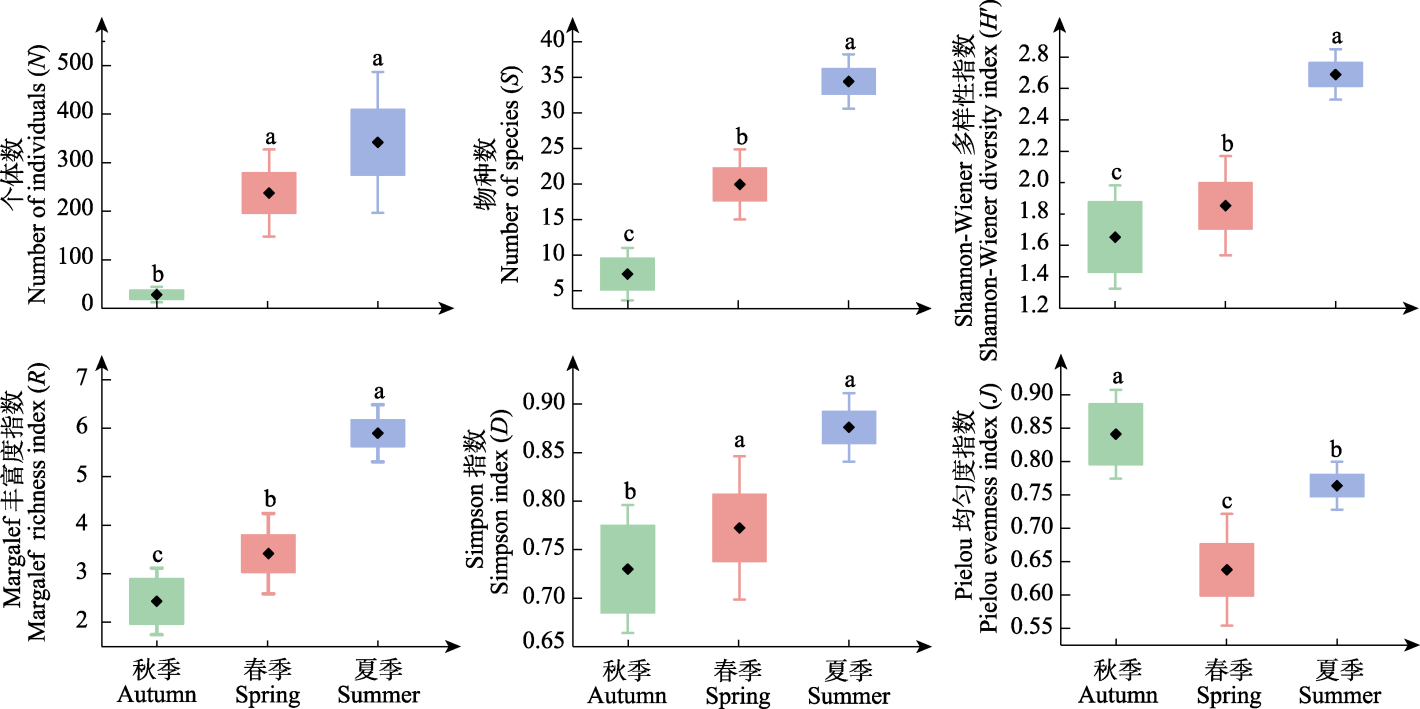

Fig. 4 Species diversity of butterflies under different seasons in the western region of Qinling Mountains. Different lowercase letters indicate significant differences in different seasons for diversity index.

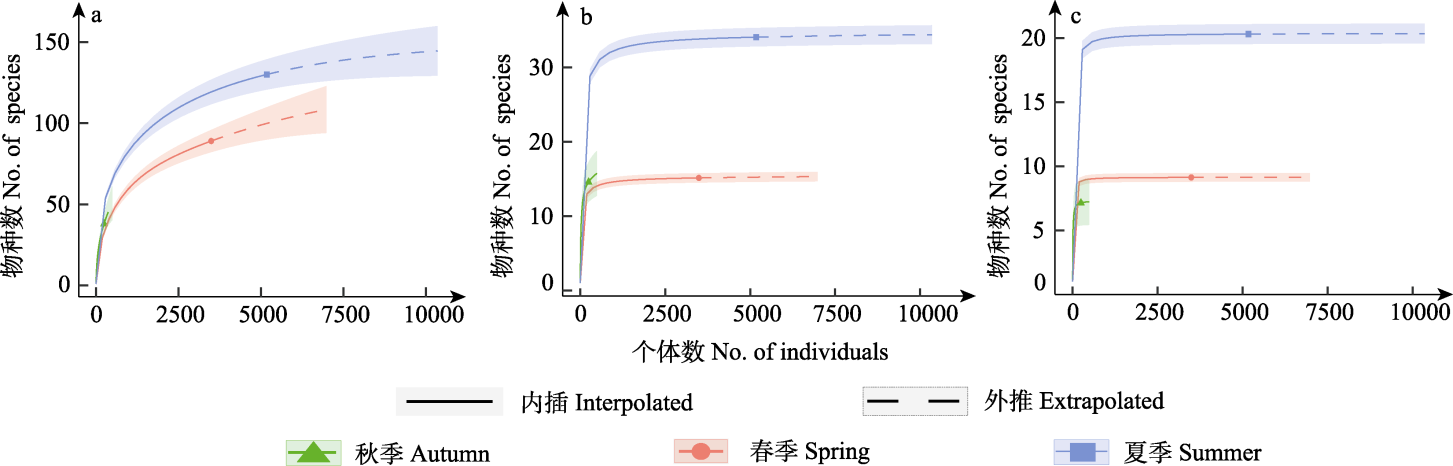

Fig. 5 Species diversity extrapolated analysis results of butterflies under different seasons in the western region of Qinling Mountains. (a) Species richness; (b) Shannon-Wiener diversity; (c) Simpson diversity.

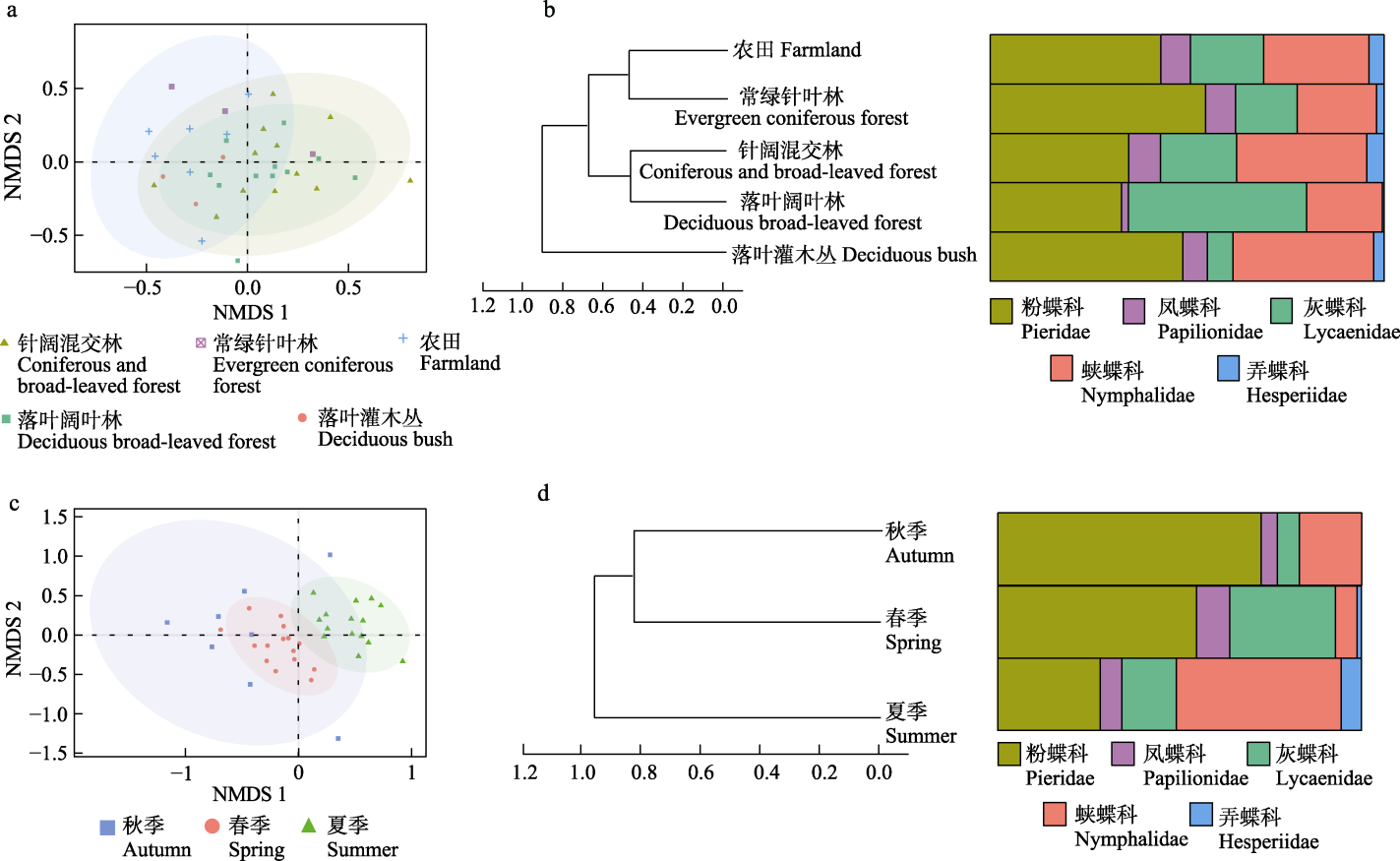

Fig. 6 β diversity analysis of butterfly community. (a) NMDS analysis of butterflies in different habitats; (b) UPGMA cluster of butterflies in different habitats; (c) NMDS analysis of butterflies in different seasons; (d) UPGMA cluster of butterflies in different seasons.

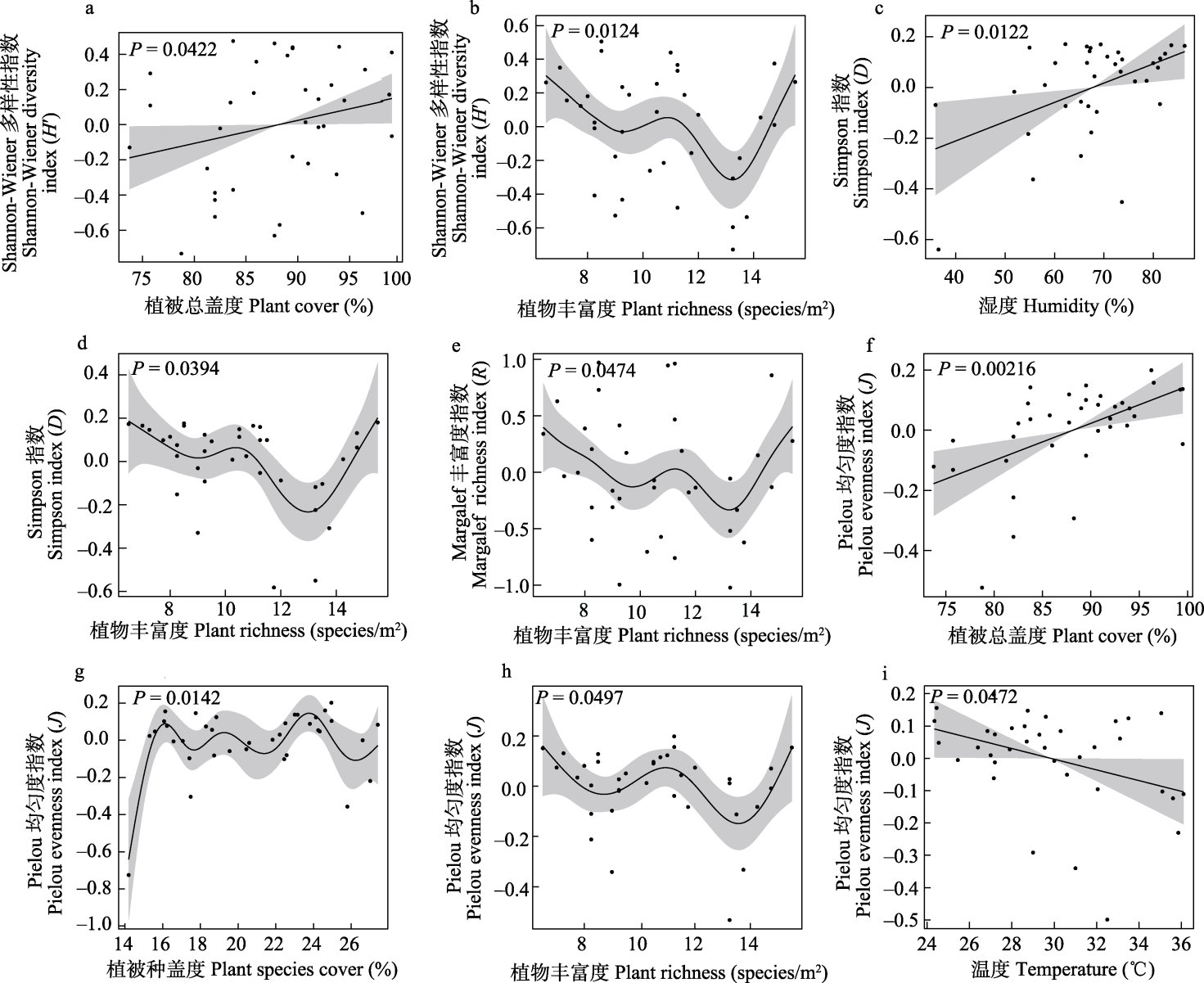

Fig. 7 Fitting curve of generalized additive model of butterfly community diversity to environmental factors

References 72

[1]	Acharya BK, Vijayan L (2015) Butterfly diversity along the elevation gradient of Eastern Himalaya. Ecological Research, 30, 909-919. DOI URL
[2]	Auguie B (2015) Misscellaneous Functions for “Grid” Graphics. https://mran.microsoft.com/snapshot/2015-11-30/web/packages/gridExtra/gridExtra.pdf. (accessed on 2022-05-01)
[3]	Baguette M, Clobert J, Schtickzelle N (2011) Metapopulation dynamics of the bog fritillary butterfly: Experimental changes in habitat quality induced negative density- dependent dispersal. Ecography, 34, 170-176. DOI URL
[4]	Basset Y, Cizek L, Cuénoud P, Didham RK, Guilhaumon F, Missa O, Novotny V, Ødegaard F, Roslin T, Schmidl J, Tishechkin AK, Winchester NN, Roubik DW, Aberlenc HP, Bail J, Barrios H, Bridle JR, Castaño-Meneses G, Corbara B, Curletti G, Duarte da Rocha W, de Bakker D, Delabie JHC, Dejean A, Fagan LL, Floren A, Kitching RL, Medianero E, Miller SE, Gama de Oliveira E, Orivel J, Pollet M, Rapp M, Ribeiro SP, Roisin Y, Schmidt JB, Sørensen L, Leponce M (2012) Arthropod diversity in a tropical forest. Science, 338, 1481-1484. DOI PMID
[5]	Beck J (2008) Phylogenetic and ecological correlates with male adult life span of rainforest butterflies. Evolutionary Ecology, 22, 507-517. DOI URL
[6]	Beirão MV, Neves FS, Fernandes GW (2021) Climate and plant structure determine the spatiotemporal butterfly distribution on a tropical mountain. Biotropica, 53, 191-200. DOI URL
[7]	Borcard D, Gillet F, Legendre P, (translated by Lai JS) (2014) Numerical Ecology with R, 2nd edn. Higher Education Press, Beijing. (in Chinese)
	[赖江山译(2014) 数量生态学: R语言的应用(第二版). 高等教育出版社, 北京.]
[8]	Bried J, Tear T, Shirer R, Zimmerman C, Gifford N, Campbell S, O’Brien K (2014) A framework to integrate habitat monitoring and restoration with endangered insect recovery. Environmental Management, 54, 1385-1398. DOI PMID
[9]	Cai JZ, Yang QL, Mou ST (2011) Monograph of Butterflies in Xiaolongshan Mts., Gansu Province. Gansu Science & Technology Press, Lanzhou. (in Chinese)
	[蔡继增, 杨庆林, 牟顺泰 (2011) 甘肃省小陇山蝶类志. 甘肃科学技术出版社, 兰州.]
[10]	Caldas A, Robert RK (2003) Modified Pollard transects for assessing tropical butterfly abundance and diversity. Biological Conservation, 110, 211-219. DOI URL
[11]	Caruso T, Pigino G, Bernini F, Bargagli R, Migliorini M (2007) The Berger-Parker index as an effective tool for monitoring the biodiversity of disturbed soils: A case study on Mediterranean oribatid (Acari: Oribatida) assemblages. Biodiversity and Conservation, 16, 3277-3285. DOI URL
[12]	Chao A, Gotelli NJ, Hsieh TC, Sander EL, Ma KH, Colwell RK, Ellison AM (2014) Rarefaction and extrapolation with Hill numbers: A framework for sampling and estimation in species diversity studies. Ecological Monographs, 84, 45-67. DOI URL
[13]	Colwell RK, Chao A, Gotelli NJ, Lin SY, Mao CX, Chazdon RL, Longino JT (2012) Models and estimators linking individual-based and sample-based rarefaction, extrapolation and comparison of assemblages. Journal of Plant Ecology, 5, 3-21. DOI URL
[14]	Corbet SA (2000) Butterfly nectaring flowers: Butterfly morphology and flower form. Entomologia Experimentalis et Applicata, 96, 289-298. DOI URL
[15]	De Vries A (2012) Using the ggdendro Package for Plotting Dendrograms and Tree Diagrams. http://www2.uaem.mx/r-mirror/web/packages/ggdendro/vignettes/ggdendro.pdf. (accessed on 2022-05-01)
[16]	Dennis RLH, Hodgson JG, Grenyer R, Shreeve TG, Roy DB (2004) Host plants and butterfly biology. Do host-plant strategies drive butterfly status? Ecological Entomology, 29, 12-26.
[17]	Driscoll DA, Banks SC, Barton PS, Lindenmayer DB, Smith AL (2013) Conceptual domain of the matrix in fragmented landscapes. Trends in Ecology & Evolution, 28, 605-613.
[18]	Fang LJ, Zhang YJ, Xing XY (2020) Butterfly community structure and diversity in Qinling National Botanical Garden, China. Biodiversity Science, 28, 965-972. (in Chinese with English abstract) DOI URL
	[房丽君, 张宇军, 邢小宇 (2020) 秦岭国家植物园蝴蝶群落结构与多样性. 生物多样性, 28, 965-972.]
[19]	Ge XY, Hong XM, Ma FZ, Liu B, Li JL (2018) The species diversity of butterfly community in Saihanwula Nature Reserve of Inner Mongolia. Chinese Journal of Ecology, 37, 2376-2383. (in Chinese with English abstract)
	[戈昕宇, 洪雪萌, 马方舟, 刘波, 李俊兰 (2018) 内蒙古赛罕乌拉自然保护区蝶类群落多样性. 生态学杂志, 37, 2376-2383.]
[20]	Gezon ZJ, Lindborg RJ, Savage A, Daniels JC (2018) Drifting phenologies cause reduced seasonality of butterflies in response to increasing temperatures. Insects, 9, 174. DOI URL
[21]	Gu X, Ren GD (2011) Study on community diversity of butterfly in Xiaowutai Mountain State Nature Reserves. Journal of Agricultural University of Hebei, 34(6), 74-78. (in Chinese with English abstract)
	[顾欣, 任国栋 (2011) 河北小五台山自然保护区蝶类群落多样性. 河北农业大学学报, 34(6), 74-78.]
[22]	Hamer KC, Hill JK, Benedick S, Mustaffa N, Chey VK, Maryati M (2006) Diversity and ecology of carrion- and fruit-feeding butterflies in Bornean rain forest. Journal of Tropical Ecology, 22, 25-33. DOI URL
[23]	Han YR, Xue QQ, Song HJ, Qi JY, Gao RH, Cui SP, Men LN, Zhang ZW (2022) Diversity and influencing factors of flower-visiting insects in the Yanshan area. Biodiversity Science, 30, 21448. (in Chinese with English abstract) DOI
	[韩艺茹, 薛琪琪, 宋厚娟, 祁靖宇, 高瑞贺, 崔绍朋, 门丽娜, 张志伟 (2022) 燕山地区访花昆虫多样性及其影响因子. 生物多样性, 30, 21448.] DOI
[24]	Hong XM, Ge XY, Li JL (2018) Butterfly diversity and its influencing factors in Saihanwula Nature Reserve. Biodiversity Science, 26, 590-600. (in Chinese with English abstract) DOI
	[洪雪萌, 戈昕宇, 李俊兰 (2018) 赛罕乌拉自然保护区蝶类多样性及其影响因素. 生物多样性, 26, 590-600.] DOI
[25]	Hsieh TC, Ma KH, Chao A (2016) iNEXT: An R package for rarefaction and extrapolation of species diversity (Hill numbers). Methods in Ecology and Evolution, 7, 1451-1456. DOI URL
[26]	Huang DY, Huang SG, Wang JH, Li HY, Dou FY, Zhang K, Zhu XL, Ma FZ (2020) Diversity of butterfly communities in the Qiyunshan National Nature Reserve. Biodiversity Science, 28, 958-964. (in Chinese with English abstract) DOI URL
	[黄敦元, 黄世贵, 王建皓, 李红英, 窦飞越, 张可, 朱祥龙, 马方舟 (2020) 齐云山国家级自然保护区蝴蝶群落多样性. 生物多样性, 28, 958-964.]
[27]	Iserhard CA, Romanowski HP, Richter A, de Souza Mendonça M (2017) Monitoring temporal variation to assess changes in the structure of subtropical Atlantic forest butterfly communities. Environmental Entomology, 46, 804-813. DOI PMID
[28]	Jia YZ, Zhao XH, Meng QF (2010) Effects of temperature and rainfall on composition and diversity of butterflies in broad-leaved and Korean pine mixed forests in the Changbai Mountains, China. Chinese Journal of Applied Environmental Biology, 16, 7-12. DOI URL
[29]	Kitahara M, Yumoto M, Kobayashi T (2008) Relationship of butterfly diversity with nectar plant species richness in and around the Aokigahara primary woodland of Mount Fuji, central Japan. Biodiversity and Conservation, 17, 2713-2734. DOI URL
[30]	Kremen C (1992) Assessing the indicator properties of species assemblages for natural areas monitoring. Ecological Applications, 2, 203-217. DOI URL
[31]	Kumar S, Simonson SE, Stohlgren TJ (2009) Effects of spatial heterogeneity on butterfly species richness in Rocky Mountain National Park, CO, USA. Biodiversity and Conservation, 18, 739-763. DOI URL
[32]	Li M (2011) Studies on Conservation Biology of Butterfly in Wuyunjie National Nature Reserve. PhD dissertation, Hunan Agricultural University, Changsha. (in Chinese with English abstract)
	[李密 (2011) 乌云界国家级自然保护区蝴蝶保护生物学研究. 博士学位论文, 湖南农业大学, 长沙.]
[33]	Lin YX, Wang DX, Liu XL, Yang HY, Yuan YC (2012) Climatic elements and their variation characteristics of Xiaolongshan forest region in western Qinling Mountains. Journal of Northwest Forestry University, 27(3), 23-26. (in Chinese with English abstract)
	[蔺岩雄, 王得祥, 刘小林, 杨海裕, 袁一超 (2012) 秦岭西段小陇山林区气候要素及其变化特征研究. 西北林学院学报, 27(3), 23-26.]
[34]	Lin ZY, Yang C, Zhu EJ, Ren XP, Zhang ZW, He QJ, Yi CH (2019) Study on the diversity of butterflies in Xichou County, Yunnan Province. Journal of Sichuan Agricultural University, 37, 404-410. (in Chinese with English abstract)
	[林中阳, 杨晨, 朱恩骄, 任曦鹏, 张正旺, 和秋菊, 易传辉 (2019) 云南省西畴县蝴蝶群落结构与多样性. 四川农业大学学报, 37, 404-410.]
[35]	Liu LW, Pan CC, Liu JL, He L (2015) Resources and fauna of butterflies in Jiulongshan Mountain National Nature Reserve. Chinese Journal of Ecology, 34, 3438-3442. (in Chinese with English abstract)
	[刘立伟, 潘成椿, 刘菊莲, 何亮 (2015) 九龙山国家级自然保护区蝶类资源与区系. 生态学杂志, 34, 3438-3442.]
[36]	Liu XL, Chen ZN, Yang XH, Li ZL, Liu ZC (2018) Diversity and faunal analysis of butterfly species in Xishan National Forest Park in Kunming. Journal of Kunming University, 40(3), 90-94. (in Chinese with English abstract)
	[刘小龙, 陈子牛, 杨晓虹, 李仲立, 刘子超 (2018) 昆明西山国家森林公园蝶类多样性及区系分析. 昆明学院学报, 40(3), 90-94.]
[37]	Ma FZ, Xu HG, Chen MM, Tong WJ, Wang CB, Cai L (2018) Progress in construction of China butterfly diversity observation network (China BON-Butterflies). Journal of Ecology and Rural Environment, 34, 27-36. (in Chinese with English abstract)
	[马方舟, 徐海根, 陈萌萌, 童文君, 王晨彬, 蔡蕾 (2018) 全国蝴蝶多样性观测网络(China BON-Butterflies)建设进展. 生态与农村环境学报, 34, 27-36.]
[38]	Ma KP (1994) Measurement of biotic community diversity I. α diversity (Part 1). Chinese Biodiversity, 2, 162-168. (in Chinese)
	[马克平 (1994) 生物群落多样性的测度方法I. α多样性的测度方法(上). 生物多样性, 2, 162-168.]
[39]	Ma KP, Liu YM (1994) Measurement of biotic community diversity I. α diversity (Part 2). Chinese Biodiversity, 2, 231-239. (in Chinese)
	[马克平, 刘玉明 (1994) 生物群落多样性的测度方法I. α多样性的测度方法(下). 生物多样性, 2, 231-239.]
[40]	Ma KP, Qian YQ (1998) Biodiversity conservation and its research progress. Chinese Journal of Applied and Environmental Biology, 4, 96-100. (in Chinese with English abstract)
	[马克平, 钱迎倩 (1998) 生物多样性保护及其研究进展. 应用与环境生物学报, 4, 96-100.]
[41]	Ma Q, Li AM, Deng HL (2012) The analysis of grade diversity indices of butterfly community in the Three Gorges Reservoir Area of Yangtze River. Acta Ecologica Sinica, 32, 1458-1470. (in Chinese with English abstract) DOI URL
	[马琦, 李爱民, 邓合黎 (2012) 长江三峡库区蝶类群落的等级多样性指数. 生态学报, 32, 1458-1470.]
[42]	Manwar N, Wankhade V (2014) Seasonal variation in diversity and abundance of butterfly at Sawanga Vithoba Lake area district Amravati, Maharashtra India. Journal of Biological Sciences, 14, 485-493. DOI URL
[43]	Margalef DR (1958) Information theory in ecology. General Systematics, 3, 36-71.
[44]	Matter SF, Ezzeddine M, Duermit E, Mashburn J, Hamilton R, Lucas T, Roland J (2009) Interactions between habitat quality and connectivity affect immigration but not abundance or population growth of the butterfly, Parnassius smintheus. Oikos, 118, 1461-1470. DOI URL
[45]	Mei J, Ran H, Yang TY, Xu QZ (2015) Species diversity of butterflies in Fanjing Mountain National Nature Reserve of Guizhou. Chinese Journal of Ecology, 34, 504-509. (in Chinese with English abstract)
	[梅杰, 冉辉, 杨天友, 许勤智 (2015) 贵州梵净山国家级自然保护区蝴蝶多样性. 生态学杂志, 34, 504-509.]
[46]	Nie SR (1981) Physical Geography of Shaanxi. Shaanxi People’s Publishing House, Xi’an. (in Chinese)
	[聂树人 (1981) 陕西自然地理. 陕西人民出版社, 西安.]
[47]	Öckinger E, Lindborg R, Sjödin NE, Bommarco R (2012) Landscape matrix modifies richness of plants and insects in grassland fragments. Ecography, 35, 259-267. DOI URL
[48]	Oksanen J, Blanchet FG, Kindt R, Legendrre P, O’Hara B, Simpson GL, Solymos P, Stevens MHH, Wangner H (2015) Vegan: Community Ecology Package. https://www.researchgate.net/publication/313502495. (accessed on 2022-05-01)
[49]	Pielou EC (1975) Ecological Diversity. John Wiley & Sons Inc., New Jersey.
[50]	Pu ZY, Shi JY, Yao J, Yang L, Zhou DQ (2013) Butterfly diversity dynamics in different seasons at the Jindian National Forest Park, Kunming, Yunnan. Acta Prataculturae Sinica, 22(2), 109-116. (in Chinese with English abstract)
	[蒲正宇, 史军义, 姚俊, 杨玲, 周德群 (2013) 昆明金殿国家森林公园蝶类多样性季节性变化研究. 草业学报, 22(2), 109-116.]
[51]	Pu ZY, Zhou DQ, Wang PH, Shi JY, Yao J (2012) Butterfly diversity of different types of habitats in Jindian National Forest Park, Kunming. Journal of Northeast Forestry University, 40(7), 128-130, 134. (in Chinese with English abstract)
	[蒲正宇, 周德群, 王鹏华, 史军义, 姚俊 (2012) 昆明金殿国家森林公园不同生境类型蝶类多样性. 东北林业大学学报, 40(7), 128-130, 134.]
[52]	Qian HG, Wang XN, Lü XH, Bai XS (2018) The community diversity analysis of butterflies in Wula Mountain region from Inner Mongolia. Journal of Inner Mongolia Normal University (Natural Science Edition), 47, 517-521. (in Chinese with English abstract)
	[钱宏革, 王旭娜, 吕秀华, 白晓拴 (2018) 内蒙古乌拉山地区蝴蝶群落多样性分析. 内蒙古师范大学学报(自然科学版), 47, 517-521.]
[53]	Ren BZ, Shang LN, Gao Y, Wang XS, Lu Y, Dong Q (2012) Relationship between floral scent of the major nectar source plants and their flower visitors in Changbai Mountain region. Journal of Jilin Agricultural University, 34, 24-30, 36. (in Chinese with English abstract)
	[任炳忠, 尚利娜, 高毅, 王雪松, 鲁莹, 董琴 (2012) 长白山地区优势蜜源植物花的气味与访花昆虫种类的关系. 吉林农业大学学报, 34, 24-30, 36.]
[54]	Soga M, Kawahara T, Fukuyama K, Sayama K, Kato T, Shimomura M, Itoh T, Yoshida T, Ozaki K (2015) Landscape versus local factors shaping butterfly communities in fragmented landscapes: Does host plant diversity matter? Journal of Insect Conservation, 19, 781-790. DOI URL
[55]	Tews J, Brose U, Grimm V, Tielbörger K, Wichmann MC, Schwager M, Jeltsch F (2004) Animal species diversity driven by habitat heterogeneity/diversity: The importance of keystone structures. Journal of Biogeography, 31, 79-92. DOI URL
[56]	Topp EN, Loos J (2019) Local and landscape level variables influence butterfly diversity in critically endangered South African renosterveld. Journal of Insect Conservation, 23, 225-237. DOI URL
[57]	Tudor O, Dennis RLH, Greatorex-Davies JN, Sparks TH (2004) Flower preferences of woodland butterflies in the UK: Nectaring specialists are species of conservation concern. Biological Conservation, 119, 397-403. DOI URL
[58]	Vu LV, Bonebrake TC, Vu MQ, Nguyen NT (2015) Butterfly diversity and habitat variation in a disturbed forest in northern Vietnam. Pan-Pacific Entomologist, 91, 29-38. DOI URL
[59]	Vu LV, Quang Vu C (2011) Diversity pattern of butterfly communities (Lepidoptera, Papilionoidae) in different habitat types in a tropical rain forest of southern Vietnam. ISRN Zoology, 2011, 818545.
[60]	Wepprich T, Adrion JR, Ries L, Wiedmann J, Haddad NM (2019) Butterfly abundance declines over 20 years of systematic monitoring in Ohio, USA. PLoS ONE, 14, e0216270.
[61]	Whittaker RH (1972) Evolution and measurement of species diversity. Taxon, 21, 213-251. DOI URL
[62]	Wickham H (2009) Ggplot2:Elegant Graphics for Data Analysis. Springer-Verlag, New York.
[63]	Wood S (2022) Mixed GAM Computation Vehicle with Automatic Smoothness Estimation. https://cran.r-project.org/web/packages/mgcv/mgcv.pdf. (accessed on 2022-05-01)
[64]	Wu CS, Xu YF (2017) Butterflies of China. The Straits Publishing House, Fuzhou. (in Chinese)
	[武春生, 徐堉峰 (2017) 中国蝴蝶图鉴. 海峡出版发行集团, 福州.]
[65]	Wu YH, Gu CB, Li WB, Liu NY, Han DM, Fang J (2016) The influence of urbanization on butterfly diversity in Hefei, Anhui Province. Chinese Journal of Ecology, 35, 992-996. (in Chinese with English abstract)
	[吴云鹤, 顾成波, 李文博, 刘乃一, 韩德民, 方杰 (2016) 城市化对合肥蝶类多样性的影响. 生态学杂志, 35, 992-996.]
[66]	Xu JJ, Wang GX (2016) Investigation on butterfly resources in Taizi Mountain National Forest Park. Hubei Forestry Science and Technology, 45(3), 48-52. (in Chinese with English abstract)
	[徐静静, 王国秀 (2016) 太子山国家森林公园蝶类资源调查. 湖北林业科技, 45(3), 48-52.]
[67]	Yang XK (2005) Insect Fauna of Middle-West Qinling Range and South Mountains of Gansu Province. Science Press, Beijing. (in Chinese)
	[杨星科 (2005) 秦岭西段及甘南地区昆虫. 科学出版社, 北京.]
[68]	Yang XK (2018) Insect Fauna of the Qinling Mountains. World Publishing Corporation, Xi’an. (in Chinese)
	[杨星科 (2018) 秦岭昆虫志. 世界图书出版社, 西安.]
[69]	Yuan CX, Liu CH, Xu SC, Zhao YL (2012) Faunal analysis of butterflies in Pingheliang Nature Reserve of Shaanxi Province. Journal of Anhui Agricultural Sciences, 40, 4478-4481. (in Chinese with English abstract)
	[苑彩霞, 刘长海, 徐世才, 赵盈利 (2012) 陕西省平河梁自然保护区蝶类资源调查及区系研究. 安徽农业科学, 40, 4478-4481.]
[70]	Zhang CD, Lin F, Jiang LN, Liu J, Liu Y, Zhou CH, Li YJ (2017) Study on species diversity and host plant of butterfly in Qufu City. Journal of Qufu Normal University (Natural Science), 43(2), 74-77. (in Chinese with English abstract)
	[张承德, 林芳, 蒋丽娜, 刘建, 刘颖, 周长花, 李玉建 (2017) 曲阜地区蝴蝶物种多样性及其寄主植物调查研究. 曲阜师范大学学报(自然科学版), 43(2), 74-77.]
[71]	Zhang LW, Zhang HY (2016) Research progress in butterfly as indicators for habitat change. Journal of Biology, 33(3), 88-91. (in Chinese with English abstract)
	[张立微, 张红玉 (2016) 蝶类对生境的指示作用研究进展. 生物学杂志, 33(3), 88-91.]
[72]	Zhou GY, Gu MB, Gong YN, Wang SK, Wu ZM, Xie GG (2016) Diversity and fauna of butterflies in Nanling National Nature Reserve. Journal of Environmental Entomology, 38, 971-978. (in Chinese with English abstract)
	[周光益, 顾茂彬, 龚粤宁, 王胜坤, 吴仲民, 谢国光 (2016) 南岭国家级自然保护区蝴蝶多样性与区系研究. 环境昆虫学报, 38, 971-978.]
