北京中心城区公园中生物声对植被三维结构的响应

doi:10.17520/biods.2025218

生物多样性 ›› 2026, Vol. 34 ›› Issue (4): 25218. DOI: 10.17520/biods.2025218 cstr: 32101.14.biods.2025218

• 研究报告: 动物多样性 • 下一篇

北京中心城区公园中生物声对植被三维结构的响应

白梓彤¹^,²(), 王成¹^,²^,^*()(), 齐志勇³()

¹ 中国林业科学研究院林业研究所, 北京 100091
² 国家林业和草原局城市森林研究中心, 北京 100091
³ 北京大学地球与空间科学学院遥感与地理信息系统研究所, 北京 100871

收稿日期:2025-06-10 接受日期:2025-08-29 出版日期:2026-04-20 发布日期:2026-05-28
通讯作者: 王成
基金资助:
中央级公益性科研院所基本科研业务费专项资金(CAFYBB2020ZB008);国家重点研发计划(2021YFE0193200)

Biophony responses to different vegetation structure in urban central parks of Beijing

Zitong Bai¹^,²(), Cheng Wang¹^,²^,^*()(), Zhiyong Qi³()

¹ Research Institute of Forestry, Chinese Academy of Forestry, Beijing 100091, China
² Urban Forestry Research Center, National Forestry and Grassland Administration, Beijing 100091, China
³ Institute of Remote Sensing and Geographic Information System, School of Earth and Space Sciences, Peking University, Beijing 100871, China

Received:2025-06-10 Accepted:2025-08-29 Online:2026-04-20 Published:2026-05-28
Contact: Cheng Wang
Supported by:
National Non-Profit Research Institutions of the Chinese Academy of Forestry(CAFYBB2020ZB008);National Key Research and Development Program of China(2021YFE0193200)

1. 附录.pdf(876KB)

摘要/Abstract

摘要：

植被三维结构显著影响公园绿地中声景的形成与空间分布, 生物声作为声景的重要组成部分, 能够间接反映区域的生物多样性水平及生态系统健康状况。然而, 目前关于城市公园生物声对植被三维结构特征的响应机制仍缺乏系统的研究。本研究于2024年夏季在北京城市中心公园的52个样点中同步采集了声音数据和背包激光雷达植被数据。基于现场录制的声音计算了6个典型声学指数, 并从激光雷达点云中提取了42个植被结构变量。利用主成分分析和XGBoost-SHAP模型, 识别对生物声产生显著影响的关键植被结构变量及其重要性, 并使用广义加性模型(generalized additive model, GAM)量化边际贡献与生物声特征之间的非线性响应关系。主要结果如下: (1)不同生物声频段的功率谱密度(power spectral density, PSD)夏季的日变化模式存在差异, PSD2-4 kHz与PSD4-6 kHz频段表现出相似的日节律特征, 而PSD6-10 kHz则呈现出错峰鸣唱的时间分布。(2)平均胸径、冠层起伏比和粗糙度指数是驱动各频段生物声表达的重要植被结构因子; 而林下植被结构和冠层覆盖度则对声学复杂度指数(acoustic complexity index, ACI)、声学多样性指数(acoustic diversity index, ADI)和生物声多样性指数(bioacoustic index, BIO)的调控起到关键作用。(3)适度疏透的林分结构与中等尺度的林木胸径更有利于鸟鸣声的增加, 冠层表面形态对昆虫声具有显著调控作用, 冠层起伏比的增加普遍促进生物声的表达。(4)林下植被过密, 寡光区体积过大不利于多声源的共存与传播, 会削弱声景的多样性。本研究系统揭示了植被三维结构对生物声的复杂影响机制, 明确了在生物声营造中的关键植被结构因子, 为城市绿地中的声景优化和生物多样性保护提供了科学依据。

关键词: 声景监测, 声学指数, 激光雷达, 城市森林, 公园

Abstract

Aims: The three-dimensional structure of vegetation is crucial for the formation and spatial distribution of soundscapes in green spaces. Biophony, a key component of soundscapes, indirectly reflects regional biodiversity and ecosystem health. However, the complex relationship between vegetation structure and biophony in urban parks is not well understood.
Methods: During the summer of 2024, we simultaneously collected high-resolution acoustic recordings and backpack LiDAR data from 52 sampling sites in central Beijing parks. Six acoustic indices and 42 vegetation structural variables were calculated from these datasets. We used principal component analysis (PCA) and the XGBoost-SHAP model to identify and assess the importance of key vegetation variables influencing biophony. A generalized additive model (GAM) was then used to quantify the nonlinear relationships between these variables and biophony characteristics.
Results: Our key findings are as follows: (1) The power spectral density (PSD) of different biophony frequency bands showed distinct diurnal patterns. PSD at 2-4 kHz and 4-6 kHz exhibited similar circadian rhythms, while the 6-10 kHz band showed a staggered vocalization pattern. (2) Mean diameter at breast height (DBH), canopy relief ratio (CRR), and rumple index (RI) were key drivers of biophony across all frequency bands. Understory structure and canopy cover (CC) were dominant factors in regulating overall soundscape indices (acoustic complexity index, acoustic diversity index, and bioacoustic index). (3) Forest stands with a euphotic volume over 50% and medium-sized trees were more favorable for bird vocal activity. Increased CRR and canopy surface morphology significantly enhanced biophony, particularly insect sounds. (4) Excessive understory density and a large proportion of oligophotic volume were detrimental to the coexistence and propagation of multiple sound sources, which can reduce soundscape diversity.
Conclusions: This study systematically reveals how three-dimensional vegetation structure influences biophony, identifies key structural factors for biophony patterns, and provides a scientific basis for soundscape optimization and biodiversity conservation in urban green spaces.

Key words: soundscape monitoring, acoustic index, LiDAR, urban forest, parks

白梓彤, 王成, 齐志勇 (2026) 北京中心城区公园中生物声对植被三维结构的响应. 生物多样性, 34, 25218. DOI: 10.17520/biods.2025218.

Zitong Bai, Cheng Wang, Zhiyong Qi (2026) Biophony responses to different vegetation structure in urban central parks of Beijing. Biodiversity Science, 34, 25218. DOI: 10.17520/biods.2025218.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.biodiversity-science.net/CN/10.17520/biods.2025218

https://www.biodiversity-science.net/CN/Y2026/V34/I4/25218

图/表 9

参考文献 65

[1]	Aylor D (1972) Noise reduction by vegetation and ground. The Journal of the Acoustical Society of America, 51, 197-205.
[2]	Bai ZT, Meng LY, Qi ZY, Jiang SS, Jin JL, Wang C (2026) Inter-annual and campaign-based diel dynamics of spring bird vocal activity in a central urban park. Urban Forestry & Urban Greening, 120, 129391.
[3]	Bai ZT, Qi ZY, Wang C, Hao ZZ, Guo QH (2025) Elucidating the influence of vegetation spatial characteristics on bio-anthrophonic soundscapes in urban parks using LiDAR data. Urban Forestry & Urban Greening, 114, 129131.
[4]	Bai ZT, Wang C, Zhao YL, Hao ZZ, Sun ZK (2021) Characteristics and temporal variation of spring anthrophony in urban parks in Beijing. Chinese Landscape Architecture, 37(4), 99-104.(in Chinese with English abstract)
	[白梓彤, 王成, 赵伊琳, 郝泽周, 孙振凯 (2021) 北京城市公园春季人工声景构成及其变化. 中国园林, 37(4), 99-104.]
[5]	Bai ZT, Wang C, Zhao YL, Sun ZK, Yin LQ (2023) Soundscape characteristics of urban park in winter in Beijing. Journal of Applied Acoustics, 42, 333-339.(in Chinese with English abstract)
	[白梓彤, 王成, 赵伊琳, 孙振凯, 殷鲁秦 (2023) 北京城市公园冬季声景特征. 应用声学, 42, 333-339.]
[6]	Beason RD, Riesch R, Koricheva J (2023) Investigating the effects of tree species diversity and relative density on bird species richness with acoustic indices. Ecological Indicators, 154, 110652.
[7]	Bennet-Clark HC (1998) How cicadas make their noise. Scientific American, 278, 58-61.
[8]	Bian Q, Wang C, Hao ZZ (2021) Application of ecoacoustic monitoring in the field of biodiversity science. Chinese Journal of Applied Ecology, 32, 1119-1128.(in Chinese with English abstract)
	[边琦, 王成, 郝泽周 (2021) 生物声音监测研究在生物多样性领域的应用. 应用生态学报, 32, 1119-1128.]
[9]	Bian Q, Wang C, Sun ZK, Yin LQ, Jiang SS, Cheng H, Zhao YL (2022) Research on spatiotemporal variation characteristics of soundscapes in a newly established suburban forest park. Urban Forestry & Urban Greening, 78, 127766.
[10]	Boelman NT, Asner GP, Hart PJ, Martin RE (2007) Multi-trophic invasion resistance in Hawaii: Bioacoustics, field surveys, and airborne remote sensing. Ecological Applications, 17, 2137-2144.
[11]	Chen TQ, Guestrin C (2016) XGBoost: A scalable tree boosting system.In: Proceedings of the 22nd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, pp. 785-794. ACM, New York.
[12]	Chen YF, Luo YH, Mammides C, Cao KF, Zhu SD, Goodale E (2021) The relationship between acoustic indices, elevation, and vegetation, in a forest plot network of Southern China. Ecological Indicators, 129, 107942.
[13]	Daryaei A, Trailovic Z, Sohrabi H, Atzberger C, Hochbichler E, Immitzer M (2025) Optimal integration of forest inventory data and aerial image-based canopy height models for forest stand management. Forest Ecosystems, 13, 100299.
[14]	Davison CW, Assmann JJ, Normand S, Rahbek C, Morueta Holme N (2023) Vegetation structure from LiDAR explains the local richness of birds across Denmark. Journal of Animal Ecology, 92, 1332-1344.
[15]	Do Nascimento LA, Campos-Cerqueira M, Beard KH (2020) Acoustic metrics predict habitat type and vegetation structure in the Amazon. Ecological Indicators, 117, 106679.
[16]	Dröge S, Martin DA, Andriafanomezantsoa R, Burivalova Z, Fulgence TR, Osen K, Rakotomalala E, Schwab D, Wurz A, Richter T, Kreft H (2021) Listening to a changing landscape: Acoustic indices reflect bird species richness and plot-scale vegetation structure across different land-use types in north-eastern Madagascar. Ecological Indicators, 120, 106929.
[17]	Fairbairn AJ, Meyer ST, Mühlbauer M, Jung K, Apfelbeck B, Berthon K, Frank A, Guthmann L, Jokisch J, Kerler K, Müller N, Obster C, Unterbichler M, Webersberger J, Matejka J, Depner P, Weisser WW (2024) Urban biodiversity is affected by human-designed features of public squares. Nature Cities, 1, 706-715.
[18]	Fang CF, Ling DL (2003) Investigation of the noise reduction provided by tree belts. Landscape and Urban Planning, 63, 187-195.
[19]	Farina A, Gage SH (2017) Ecoacoustics: The Ecological Role of Sounds. John Wiley & Sons, Hoboken.
[20]	Farina A, Pieretti N (2014) Sonic environment and vegetation structure: A methodological approach for a soundscape analysis of a Mediterranean maqui. Ecological Informatics, 21, 120-132.
[21]	Fuller S, Axel AC, Tucker D, Gage SH (2015) Connecting soundscape to landscape: Which acoustic index best describes landscape configuration? Ecological Indicators, 58, 207-215.
[22]	Ghadiri Khanaposhtani M, Gasc A, Francomano D, Villanueva-Rivera LJ, Jung J, Mossman MJ, Pijanowski BC (2019) Effects of highways on bird distribution and soundscape diversity around Aldo Leopold’s shack in Baraboo, Wisconsin, USA. Landscape and Urban Planning, 192, 103666.
[23]	Gogala M, Riede K (1995) Time sharing of song activity by cicadas in Temengor Forest Reserve, Hulu Perak, and in Sabah, Malaysia. Malayan Nature Journal, 48, 297-305.
[24]	Guo C, Yan ER, Cornelissen JHC (2022) Size matters for linking traits to ecosystem multifunctionality. Trends in Ecology & Evolution, 37, 803-813.
[25]	Guo QH, Hu TY, Jiang YX, Jin SC, Wang R, Guan HC, Yang QL, Li YM, Wu FF, Zhai QP, Liu J, Su YJ (2018) Advances in remote sensing application for biodiversity research. Biodiversity Science, 26, 789-806.(in Chinese with English abstract)
	[郭庆华, 胡天宇, 姜媛茜, 金时超, 王瑞, 关宏灿, 杨秋丽, 李玉美, 吴芳芳, 翟秋萍, 刘瑾, 苏艳军 (2018) 遥感在生物多样性研究中的应用进展. 生物多样性, 26, 789-806.]
[26]	Hao ZZ, Wang C, Sun ZK, Zhao DX, Sun BQ, Wang HJ, Konijnendijk van den Bosch C (2021) Vegetation structure and temporality influence the dominance, diversity, and composition of forest acoustic communities. Forest Ecology and Management, 482, 118871.
[27]	Hao ZZ, Zhang CY, Li L, Sun B, Luo SX, Liao JY, Wang QF, Wu RC, Xu XH, Lepczyk CA, Pei NC (2024) Can urban forests provide acoustic refuges for birds? Investigating the influence of vegetation structure and anthropogenic noise on bird sound diversity. Journal of Forestry Research, 35, 33.
[28]	He XL, Deng Y, Dong AR, Lin LX (2022) The relationship between acoustic indices, vegetation, and topographic characteristics is spatially dependent in a tropical forest in southwestern China. Ecological Indicators, 142, 109229.
[29]	Joo W, Gage SH, Kasten EP (2011) Analysis and interpretation of variability in soundscapes along an urban-rural gradient. Landscape and Urban Planning, 103, 259-276.
[30]	Joo W, Napoletano B, Qi J, Gage SH, Biswas S (2007) Soundscape characteristics of an environment:A new ecological indicator of ecosystem health. In: Wetland and Water Resource Modeling and Assessment (ed. Ji W), pp. 201-211. CRC Press, Boca Raton.
[31]	Kamoske AG, Dahlin KM, Stark SC, Serbin SP (2019) Leaf area density from airborne LiDAR: Comparing sensors and resolutions in a temperate broadleaf forest ecosystem. Forest Ecology and Management, 433, 364-375.
[32]	Kane VR, McGaughey RJ, Bakker JD, Gersonde RF, Lutz JA, Franklin JF (2010) Comparisons between field- and LiDAR-based measures of stand structural complexity. Canadian Journal of Forest Research, 40, 761-773.
[33]	Lin MQ, Chau CK, Hou HY, Tang SK (2025) Development of an interpretable machine-learning model for capturing nonlinear dynamics of multisensory interactions in public open spaces. Building and Environment, 280, 113072.
[34]	Lundberg SM, Erion G, Chen H, DeGrave A, Prutkin JM, Nair B, Katz R, Himmelfarb J, Bansal N, Lee SI (2020) From local explanations to global understanding with explainable AI for trees. Nature Machine Intelligence, 2, 56-67.
[35]	Lundberg SM, Lee SI (2017) A unified approach to interpreting model predictions. In:Proceedings of the 31st International Conference on Neural Information Processing Systems, pp. 4768-4777. Currant Associates Inc., New York.
[36]	Ma HG, Fan PL (2023) Application, progress, and future perspective of passive acoustic monitoring in terrestrial mammal research. Biodiversity Science, 31, 22374.(in Chinese with English abstract)
	[马海港, 范鹏来 (2023) 被动声学监测技术在陆生哺乳动物研究中的应用、进展和展望. 生物多样性, 31, 22374.]
[37]	Martens MJM, Michelsen A (1981) Absorption of acoustic energy by plant leaves. The Journal of the Acoustical Society of America, 69, 303-306.
[38]	Mitchell SL, Bicknell JE, Edwards DP, Deere NJ, Bernard H, Davies ZG, Struebig MJ (2020) Spatial replication and habitat context matters for assessments of tropical biodiversity using acoustic indices. Ecological Indicators, 119, 106717.
[39]	Ouyang S, Gou MM, Lei PF, Liu Y, Chen L, Deng XW, Zhao ZH, Zeng YL, Hu YT, Peng CH, Xiang WH (2023) Plant functional trait diversity and structural diversity co-underpin ecosystem multifunctionality in subtropical forests. Forest Ecosystems, 10, 100093.
[40]	Pekin BK, Jung J, Villanueva-Rivera LJ, Pijanowski BC, Ahumada JA (2012) Modeling acoustic diversity using soundscape recordings and LiDAR-derived metrics of vertical forest structure in a Neotropical rainforest. Landscape Ecology, 27, 1513-1522.
[41]	Pieretti N, Farina A, Morri D (2011) A new methodology to infer the singing activity of an avian community: The acoustic complexity index (ACI). Ecological Indicators, 11, 868-873.
[42]	Pijanowski BC, Farina A, Gage SH, Dumyahn SL, Krause BL (2011a) What is soundscape ecology? An introduction and overview of an emerging new science. Landscape Ecology, 26, 1213-1232.
[43]	Pijanowski BC, Villanueva-Rivera LJ, Dumyahn SL, Farina A, Krause BL, Napoletano BM, Gage SH, Pieretti N (2011b) Soundscape ecology: The science of sound in the landscape. BioScience, 61, 203-216.
[44]	Priyadarshani N, Castro I, Marsland S (2018) The impact of environmental factors in birdsong acquisition using automated recorders. Ecology and Evolution, 8, 5016-5033.
[45]	Rodriguez A, Gasc A, Pavoine S, Grandcolas P, Gaucher P, Sueur J (2014) Temporal and spatial variability of animal sound within a neotropical forest. Ecological Informatics, 21, 133-143.
[46]	Roussel JR, Auty D, Coops NC, Tompalski P, Goodbody TRH, Meador AS, Bourdon JF, de Boissieu F, Achim A (2020) LidR: An R package for analysis of airborne laser scanning (ALS) data. Remote Sensing of Environment, 251, 112061.
[47]	Sethi SS, Bick A, Ewers RM, Klinck H, Ramesh V, Tuanmu MN, Coomes DA (2023) Limits to the accurate and generalizable use of soundscapes to monitor biodiversity. Nature Ecology & Evolution, 7, 1373-1378.
[48]	Sheppard LW, Mechtley B, Walter JA, Reuman DC (2020) Self-organizing cicada choruses respond to the local sound and light environment. Ecology and Evolution, 10, 4471-4482.
[49]	Stadtler S, Betancourt C, Roscher R (2022) Explainable machine learning reveals capabilities, redundancy, and limitations of a geospatial air quality benchmark dataset. Machine Learning and Knowledge Extraction, 4, 150-171.
[50]	Sun YF, Wang SZ, Feng JW, Wang TM (2023) Diel and seasonal variability of the forest soundscape in the Northeast China Tiger and Leopard National Park. Biodiversity Science, 31, 22523.(in Chinese with English abstract)
	[孙翊斐, 王士政, 冯佳伟, 王天明 (2023) 东北虎豹国家公园森林声景的昼夜和季节变化. 生物多样性, 31, 22523.]
[51]	Taki H, Inoue T, Tanaka H, Makihara H, Sueyoshi M, Isono M, Okabe K (2010) Responses of community structure, diversity, and abundance of understory plants and insect assemblages to thinning in plantations. Forest Ecology and Management, 259, 607-613.
[52]	Tao SL, Wu FF, Guo QH, Wang YC, Li WK, Xue BL, Hu XY, Li P, Tian D, Li C, Yao H, Li YM, Xu GC, Fang JY (2015) Segmenting tree crowns from terrestrial and mobile LiDAR data by exploring ecological theories. ISPRS Journal of Photogrammetry and Remote Sensing, 110, 66-76.
[53]	Wang M, Li YX, Yuan HJ, Zhou SQ, Wang YK, Adnan Ikram RM, Li JJ (2023) An XGBoost-SHAP approach to quantifying morphological impact on urban flooding susceptibility. Ecological Indicators, 156, 111137.
[54]	Waser PM, Brown CH (1986) Habitat acoustics and primate communication. American Journal of Primatology, 10, 135-154.
[55]	Welch P (1967) The use of fast Fourier transform for the estimation of power spectra: A method based on time averaging over short, modified periodograms. IEEE Transactions on Audio and Electroacoustics, 15, 70-73.
[56]	Wiley RH, Richards DG (1978) Physical constraints on acoustic communication in the atmosphere: Implications for the evolution of animal vocalizations. Behavioral Ecology and Sociobiology, 3, 69-94.
[57]	Xiao ZS (2024) Application of passive acoustic methods in biodiversity monitoring and research. Biodiversity Science, 32, 24462.(in Chinese with English abstract)
	[肖治术 (2024) 被动声学技术在生物多样性监测与研究中的应用. 生物多样性, 32, 24462.]
[58]	Xiao ZS, Cui JG, Wang DP, Wang ZT, Luo JH, Xie J (2023) Interdisciplinary development trends of contemporary bioacoustics and the opportunities for China. Biodiversity Science, 31, 22423.(in Chinese with English abstract)
	[肖治术, 崔建国, 王代平, 王志陶, 罗金红, 谢捷 (2023) 现代生物声学的学科发展趋势及中国机遇. 生物多样性, 31, 22423.]
[59]	Yang HT, Su YJ, Li BG, Guo QH (2025) Synchronizing 3D LiDAR-based reconstruction of animals and environment for in situ ecosystem characterization. Information Geography, 1, 100019.
[60]	Yang YF, Chen YX, Ye ZW, Song ZQ, Xiong Y (2024) Springtime spatio-temporal distribution of bird diversity in urban parks based on acoustic indices. Global Ecology and Conservation, 53, e02995.
[61]	Young AM (1976) Notes on the faunstic complexity of cicadas (Homoptera; Cicadidae) in Northern Costa Rica. Revista de Biología Tropical, 24, 267-279.
[62]	Zhang W, Qi J, Wan P, Wang H, Xie D, Wang X, Yan G (2016) An easy-to-use airborne LiDAR data filtering method based on cloth simulation. Remote Sensing, 8, 501.
[63]	Zhao YL, Bai ZT, Wang C, Yin LQ, Sun ZK, Zhang C, Sun RL, Xu S, Bian Q, Sun BQ (2021) Urban parks soundscape and its relationship with vegetation structure: A pilot study. Acta Ecologica Sinica, 41, 8040-8051.(in Chinese with English abstract)
	[赵伊琳, 白梓彤, 王成, 殷鲁秦, 孙振凯, 张昶, 孙睿霖, 徐诗, 边琦, 孙宝强 (2021) 城市公园春季声景观与植被结构的关系. 生态学报, 41, 8040-8051.]
[64]	Zhao YL, Sun ZK, Bai ZT, Jin JL, Wang C (2025) How vegetation structure shapes the soundscape: Acoustic community partitioning and its implications for urban forestry management. Forests, 16, 669.
[65]	Zhao Z, Xu ZY, Bellisario K, Zeng RW, Li N, Zhou WY, Pijanowski BC (2019) How well do acoustic indices measure biodiversity? Computational experiments to determine effect of sound unit shape, vocalization intensity, and frequency of vocalization occurrence on performance of acoustic indices. Ecological Indicators, 107, 105588.

生物声指标 Biophony indices		含义 Explanations
平均功率谱密度 Power spectral density (PSD)	PSD2-4	用于表征频率2-4 kHz中声学群落的能量(Watts/kHz), 多集中分布着低频鸟鸣声(Joo et al., 2007; 赵伊琳等, 2021)。与常见鸣禽的活动与数量相关性较强 This metric represents the acoustic energy (Watts/kHz) of sound communities within the 2-4 kHz frequency range, which primarily corresponds to low-frequency bird vocalizations (Joo et al., 2007; Zhao et al., 2021) and is strongly associated with the activity and abundance of common songbird species
	PSD4-6	用于表征频率4-6 kHz中声学群落的能量(Watts/kHz), 主要分布着中频的鸟鸣声和部分昆虫声。往往与更丰富的鸣禽谱系或活跃的宣告或求偶行为相关 This metric represents the acoustic energy (Watts/kHz) of sound communities within the 4-6 kHz frequency range, which is mainly composed of mid-frequency bird vocalizations along with some insect sounds. It is often associated with a richer assemblage of songbird taxa or heightened levels of territorial or courtship vocal activity
	PSD6-10	用于表征频率6-10 kHz中声学群落的能量(Watts/kHz), 在夏秋季多集中分布着高频虫鸣声(Joo et al., 2007; Pijanowski et al., 2011a), 尤其是以蝉鸣为代表的虫鸣声(Bennet-Clark, 1998) This metric represents the acoustic energy (Watts/kHz) of sound communities within the 6-10 kHz frequency range, which during summer and autumn is predominantly characterized by high-frequency insect vocalizations (Joo et al., 2007; Pijanowski et al., 2011a), particularly cicada calls that dominate this acoustic band (Bennet-Clark, 1998)
声学指数 Acoustic index (AIS)	生物声多样性指数 Bioacoustic index (BIO)	基于soundecology包的bioacoustic_index函数, 计算每个频率(Hz)曲线在最小分贝值(dB)以上的区域, 频率阈值设定在2-11 kHz之间(Boelman et al., 2007)。反映生物声活动的总强度, 较高的BIO值通常表示该区域内生物发声活动频繁, 可能与物种丰富度或个体活跃度相关(Bai et al., 2026) Using the bioacoustic_index function in the soundecology package, the area above the minimum decibel threshold (dB) is calculated for each frequency curve, with the frequency range set between 2-11 kHz (Boelman et al., 2007). This index reflects the overall intensity of biophonic activity; higher BIO values generally indicate more frequent biological vocalizations within the area and may be associated with greater species richness or higher levels of individual activity (Bai et al., 2026)
	声学复杂度指数 Acoustic complexity index (ACI)	基于soundecology包中的acoustic_complexity函数, 频率阈值设置在2-11 kHz之间, FFT=1,024, 通过计算声强的变异性来表征声音群落在时间维度的多变性(Pieretti et al., 2011)。反映声音强度的变化, 较高的ACI值通常表示声音活动复杂度更高, 声音强度变化显著 Using the acoustic_complexity function in the soundecology package, with a frequency threshold set between 2-11 kHz and FFT size of 1,024, this index quantifies temporal variability in sound intensity to characterize the dynamism of acoustic communities (Pieretti et al., 2011). Higher ACI values generally indicate greater complexity in acoustic activity and more pronounced fluctuations in sound intensity
	声学多样性指数 Acoustic diversity index (ADI)	基于soundecology包中的acoustic_diversity函数, 通过Shannon指数来计算光谱复杂性(Pekin et al., 2012)。能较好反映多频段占用的情况, 较高的ADI值表示声音在多个频段中分布更均匀, 而较强的单一声源出现时, ADI下降 Using the acoustic_diversity function in the soundecology package, spectral complexity is quantified based on the Shannon index (Pekin et al., 2012). This index effectively reflects the degree of multi-band occupancy, where higher ADI values indicate that sounds are more evenly distributed across multiple frequency bands, whereas the presence of a dominant single sound source leads to a decrease in ADI

生物声指标 Biophony indices		含义 Explanations
平均功率谱密度 Power spectral density (PSD)	PSD2-4	用于表征频率2-4 kHz中声学群落的能量(Watts/kHz), 多集中分布着低频鸟鸣声(Joo et al., 2007; 赵伊琳等, 2021)。与常见鸣禽的活动与数量相关性较强 This metric represents the acoustic energy (Watts/kHz) of sound communities within the 2-4 kHz frequency range, which primarily corresponds to low-frequency bird vocalizations (Joo et al., 2007; Zhao et al., 2021) and is strongly associated with the activity and abundance of common songbird species
	PSD4-6	用于表征频率4-6 kHz中声学群落的能量(Watts/kHz), 主要分布着中频的鸟鸣声和部分昆虫声。往往与更丰富的鸣禽谱系或活跃的宣告或求偶行为相关 This metric represents the acoustic energy (Watts/kHz) of sound communities within the 4-6 kHz frequency range, which is mainly composed of mid-frequency bird vocalizations along with some insect sounds. It is often associated with a richer assemblage of songbird taxa or heightened levels of territorial or courtship vocal activity
	PSD6-10	用于表征频率6-10 kHz中声学群落的能量(Watts/kHz), 在夏秋季多集中分布着高频虫鸣声(Joo et al., 2007; Pijanowski et al., 2011a), 尤其是以蝉鸣为代表的虫鸣声(Bennet-Clark, 1998) This metric represents the acoustic energy (Watts/kHz) of sound communities within the 6-10 kHz frequency range, which during summer and autumn is predominantly characterized by high-frequency insect vocalizations (Joo et al., 2007; Pijanowski et al., 2011a), particularly cicada calls that dominate this acoustic band (Bennet-Clark, 1998)
声学指数 Acoustic index (AIS)	生物声多样性指数 Bioacoustic index (BIO)	基于soundecology包的bioacoustic_index函数, 计算每个频率(Hz)曲线在最小分贝值(dB)以上的区域, 频率阈值设定在2-11 kHz之间(Boelman et al., 2007)。反映生物声活动的总强度, 较高的BIO值通常表示该区域内生物发声活动频繁, 可能与物种丰富度或个体活跃度相关(Bai et al., 2026) Using the bioacoustic_index function in the soundecology package, the area above the minimum decibel threshold (dB) is calculated for each frequency curve, with the frequency range set between 2-11 kHz (Boelman et al., 2007). This index reflects the overall intensity of biophonic activity; higher BIO values generally indicate more frequent biological vocalizations within the area and may be associated with greater species richness or higher levels of individual activity (Bai et al., 2026)
	声学复杂度指数 Acoustic complexity index (ACI)	基于soundecology包中的acoustic_complexity函数, 频率阈值设置在2-11 kHz之间, FFT=1,024, 通过计算声强的变异性来表征声音群落在时间维度的多变性(Pieretti et al., 2011)。反映声音强度的变化, 较高的ACI值通常表示声音活动复杂度更高, 声音强度变化显著 Using the acoustic_complexity function in the soundecology package, with a frequency threshold set between 2-11 kHz and FFT size of 1,024, this index quantifies temporal variability in sound intensity to characterize the dynamism of acoustic communities (Pieretti et al., 2011). Higher ACI values generally indicate greater complexity in acoustic activity and more pronounced fluctuations in sound intensity
	声学多样性指数 Acoustic diversity index (ADI)	基于soundecology包中的acoustic_diversity函数, 通过Shannon指数来计算光谱复杂性(Pekin et al., 2012)。能较好反映多频段占用的情况, 较高的ADI值表示声音在多个频段中分布更均匀, 而较强的单一声源出现时, ADI下降 Using the acoustic_diversity function in the soundecology package, spectral complexity is quantified based on the Shannon index (Pekin et al., 2012). This index effectively reflects the degree of multi-band occupancy, where higher ADI values indicate that sounds are more evenly distributed across multiple frequency bands, whereas the presence of a dominant single sound source leads to a decrease in ADI

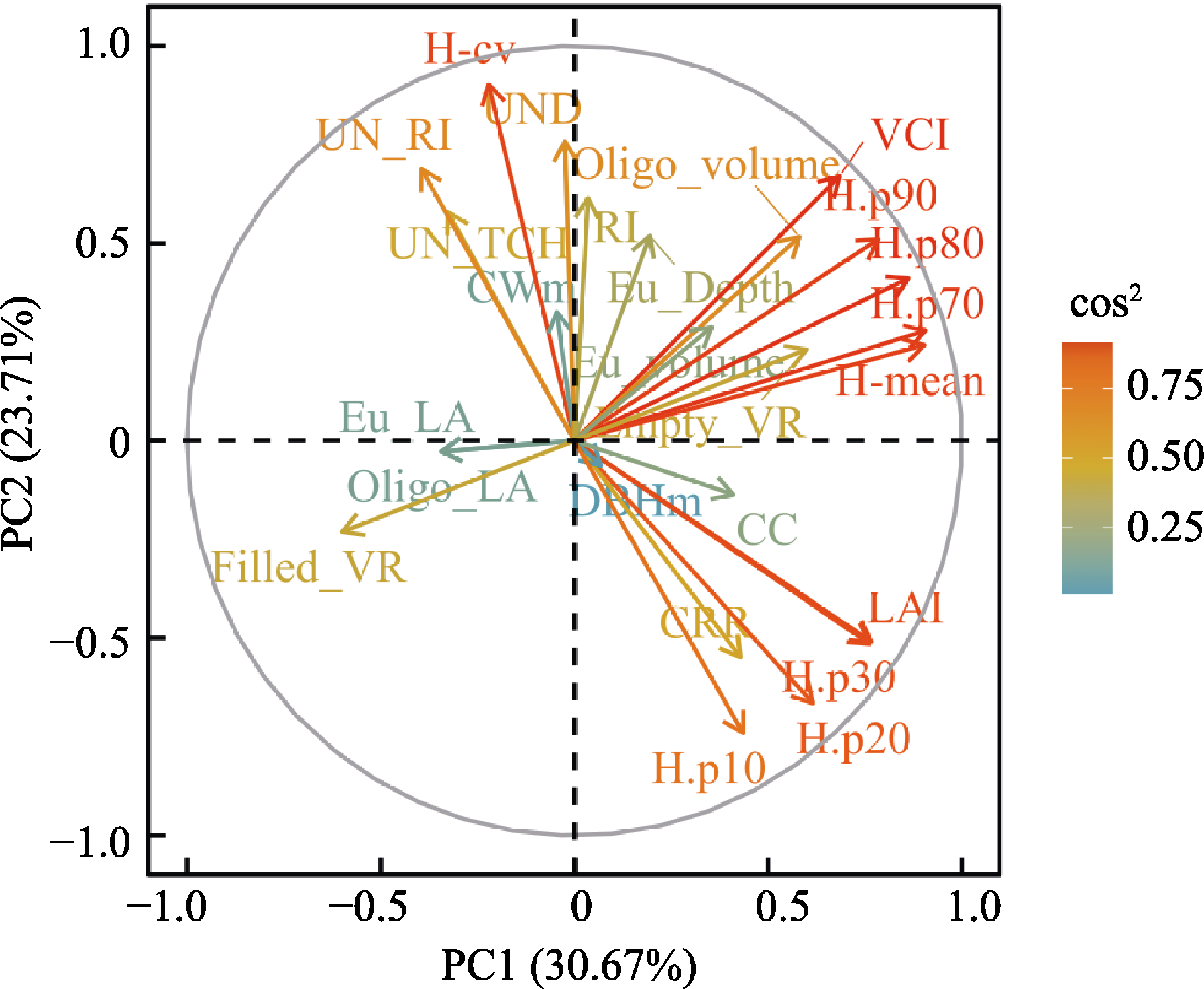

主成分 PC	成分1 Component 1	成分2 Component 2	成分3 Component 3	成分4 Component 4	成分5 Component 5	累积方差 Cumulative variance (%)
PC1	H.p80	H.p70	H.p90	H-mean	VCI	30.67
PC2	H-cv	LAI	H.p20	H.p30	CRR	54.38
PC3	Oligo_LA	Eu_LA	Oligo_volume	DBHm	CC	66.43
PC4	Eu_Depth	Eu_volume	CWm	Filled_VR	Empty_VR	75.93
PC5	UN_TCH	UN_RI	UND	RI	H.p10	82.70

主成分 PC	成分1 Component 1	成分2 Component 2	成分3 Component 3	成分4 Component 4	成分5 Component 5	累积方差 Cumulative variance (%)
PC1	H.p80	H.p70	H.p90	H-mean	VCI	30.67
PC2	H-cv	LAI	H.p20	H.p30	CRR	54.38
PC3	Oligo_LA	Eu_LA	Oligo_volume	DBHm	CC	66.43
PC4	Eu_Depth	Eu_volume	CWm	Filled_VR	Empty_VR	75.93
PC5	UN_TCH	UN_RI	UND	RI	H.p10	82.70

声景指标Soundscape indices	决定系数 Coefficient of determination (R²)	相对均方根误差 Relative root mean square error (rRMSE, %)	相对平均绝对误差 Relative mean absolute error (rMAE, %)
PSD2-4	0.82	8.39	6.13
PSD4-6	0.83	10.25	7.45
PSD6-10	0.88	10.69	7.76
ACI	0.69	19.25	14.10
ADI	0.77	20.37	15.72
BIO	0.78	19.74	25.93
