Biodiversity Science ›› 2017, Vol. 25 ›› Issue (4): 409-417.doi: 10.17520/biods.2016331

• Original Papers: Animal Diversity • Previous Article     Next Article

Diversity investigation and application of DNA barcoding of Acridoidea from Baiyangdian Wetland

Jinfeng Hao, Xiaohong Zhang, Yusong Wang, Jinlin Liu, Yongchao Zhi, Xinjiang Li*()

  1. The Key Laboratory of Zoological Systematics and Application, College of Life Sciences, Hebei University, Baoding, Hebei 071002
  • Received:2016-11-22 Accepted:2017-04-10 Online:2017-04-20
  • Li Xinjiang E-mail:hbulxj@163.com

Both the species diversity and distribution pattern of the superfamily Acridoidea of the suborder Caelifera have important contributions to understanding the local biodiversity of the Baiyangdian Wetland. This research tries to study the species diversity and distribution pattern of the superfamily Acridoidea within the Baiyangdian Wetland and test the feasibility of DNA barcoding in species identification for this superfamily. Sequences of the cox1 gene were obtained from 97 individuals of 21 species of the superfamily Acridoidea. Phylogenetic, genetic distance and sequence difference threshold analyses using the Neighbor Joining (NJ), Automatic Barcode Gap Discovery (ABGD) and Molecular Defined Operational Taxonomic Units (MOTU) methods, respectively, were performed for these and the 25 additional sequences of 10 species downloaded from GenBank. The results indicate that there are 34 species, 23 genera, and 6 families of the superfamily Acridoidea insects around the farmland, dam, and grassland of the Baiyangdian Wetland, including a new-record genus, Euchorthippus, and three new-record species, Euchorthippus unicolor, Atractomorpha psittacina and Oxya japonica. The DNA barcoding technology therefore is very efficient and helpful for identifying the species of the superfamily Acridoidea, although the morphological approach is still playing a key role in the species identifications.

Key words: Orthoptera, Acridoidea, Baiyangdian Wetland, diversity, DNA barcoding

Fig. 1

The collecting localities of grasshoppers from Baiyangdian Wetland"

Table 1

Species checklist of Acridoidea from Baiyangdian Wetland with the specimen information"

科名
Family
属名
Genus
种名
Species
采集地点
Collection location
采集时间
Collection time
癞蝗科 Pamphagidae 笨蝗属 Haplotropis 笨蝗 Haplotropis brunneriana
锥头蝗科
Pyrgomorphidae
负蝗属 Atractomorpha 短额负蝗 Atractomorpha sinensis 寨里 Zhaili
崔公堤 Cuigongdi
大王镇 Dawangzhen
大树刘庄 Dashuliuzhuang
2011.8
2014.9
2015.8
2015.9
柳枝负蝗 Atractomorpha psittacina 宋庄 Songzhuang
杨庄子 Yangzhuangzi
赵北口 Zhaobeikou
2015.8
2011.8
2014.9
令箭负蝗 Atractomorpha sagittaris 南曲堤 Nanqudi
大树刘庄 Dashuliuzhuang
端村 Duancun
2011.8
2015.9
2014.9
长额负蝗 Atractomorpha lata 圈头 Quantou
崔公堤 Cuigongdi
杨庄子 Yangzhuangzi
宋庄 Songzhuang
2011.8
2014.9
2011.8
2015.8
斑腿蝗科 Catantopidae 稻蝗属 Oxya 日本稻蝗 Oxya japonica 寨里 Zhaili
大王镇 Dawangzhen
端村 Duancun
2011.8
2015.8
2014.9
中华稻蝗 Oxya chinensis 圈头 Quantou
南曲堤 Nanqudi
大树刘庄 Dashuliuzhuang
2011.8
2011.8
2015.9
蔗蝗属 Hieroglyphus 斑角蔗蝗 Hieroglyphus annulicornis
棉蝗属 Chondracris 棉蝗 Chondracris rosea rosea
黄脊蝗属 Patanga 日本黄脊蝗 Patanga japonica
星翅蝗属 Calliptamus 短星翅蝗 Calliptamus abbreviatus 杨庄子 Yangzhuangzi
赵北口 Zhaobeikou
大王镇 Dawangzhen
2011.8
2014.9
2015.8
素木蝗属 Shirakiacris 长翅素木蝗 Shirakiacris shirakii 南曲堤 Nanqudi
大树刘庄 Dashuliuzhuang
赵北口 Zhaobeikou
2011.8
2015.9
2014.9
斑翅蝗科 Oedipodidae 飞蝗属 Locusta 东亚飞蝗
Locusta migratoria manilensis
崔公堤 Cuigongdi
大王镇 Dawangzhen
赵北口 Zhaobeikou
宋庄 Songzhuang
2014.9
2015.8
2014.9
2015.8
车蝗属 Gastrimargus 云斑车蝗 Gastrimargus marmoratus
尖翅蝗属 Epacromius 大垫尖翅蝗 Epacromius coerulipes 端村 Duancun
赵北口 Zhaobeikou
崔公堤 Cuigongdi
2014.9
2011.8
2014.9
小车蝗属 Oedaleus 黄胫小车蝗
Oedaleus infernalis infernalis
大王镇 Dawangzhen
端村 Duancun
南曲堤 Nanqudi
崔公堤 Cuigongdi
2015.8
2014.9
2011.8
2014.9
亚洲小车蝗 Oedaleus asiaticus 杨庄子 Yangzhuangzi
南曲堤 Nanqudi
崔公堤 Cuigongdi
赵北口 Zhaobeikou
端村 Duancun
2011.8
2011.8
2014.9
2014.9
2014.9
赤翅蝗属 Celes 大赤翅蝗 Celes skalozubovi akitanus
疣蝗属 Trilophidia 疣蝗 Trilophidia annulata 崔公堤 Cuigongdi
赵北口 Zhaobeikou
杨庄子 Yangzhuangzi
2014.9
2014.9
2011.8
绿纹蝗属 Aiolopus 花胫绿纹蝗 Aiolopus tamulus 崔公堤 Cuigongdi
大王镇 Dawangzhen
赵北口 Zhaobeikou
杨庄子 Yangzhuangzi
2014.9
2015.8
2014.9
2011.8
异痂蝗属 Bryodemella 轮纹异痂蝗 Bryodemella tuberculatum dilutum
网翅蝗科
Arcypteridae
曲背蝗属 Pararcyptera 宽翅曲背蝗
Pararcyptera microptera meridionalis
网翅蝗属 Arcyptera 隆额网翅蝗 Arcyptera coreana
雏蝗属 Chorthippus 黑翅雏蝗 Chorthippus aethalinus
小翅雏蝗 Chorthippus fallax
北方雏蝗 Chorthippus hammarstroemi
狭翅雏蝗 Chorthippus dubius
白纹雏蝗 Chorthippus albonemus
华北雏蝗
Chorthippus brunneus huabeiensis
东方雏蝗 Chorthippus intermedius
异爪蝗属
Euchorthippus
素色异爪蝗 Euchorthippus unicolor 寨里 Zhaili
崔公堤 Cuigongdi
大王镇 Dawangzhen
2011.8
2014.9
2015.8
剑角蝗科
Acrididae
鸣蝗属
Mongolotettix
条纹鸣蝗
Mongolotettix japonicus vittatus
剑角蝗属 Acrida 中华剑角蝗 Acrida cinerea 南曲堤 Nanqudi
大树刘庄 Dashuliuzhuang
大王镇 Dawangzhen
崔公堤 Cuigongdi
寨里 Zhaili
2011.8
2015.9
2015.8
2014.9
2011.8
戛蝗属 Gonista 二色戛蝗 Gonista bicolor 崔公堤 Cuigongdi
大王镇 Dawangzhen
寨里 Zhaili
2014.9
2015.8
2011.8

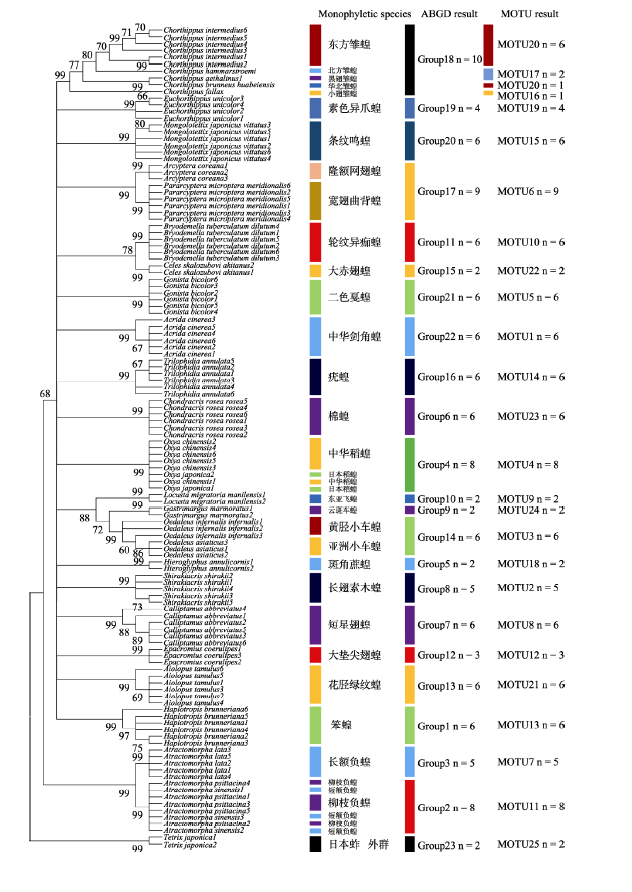

Fig. 2

NJ Phylogenetic tree, ABGD result and MOTU result of Acridoidea from Baiyangdian Wetland based on cox1 gene sequences"

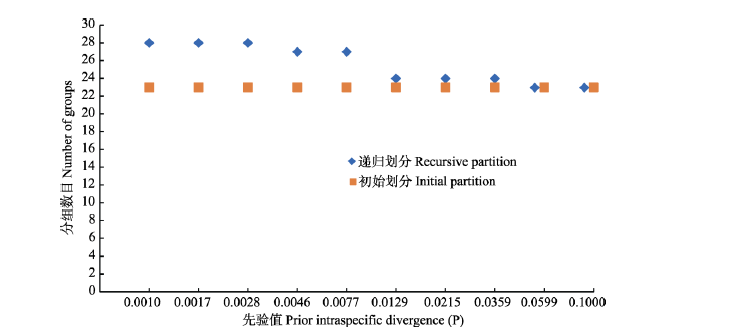

Fig. 3

Automatic partition results of ABGD in 122 samples based on prior intraspecific divergence range of 0.001-0.1"

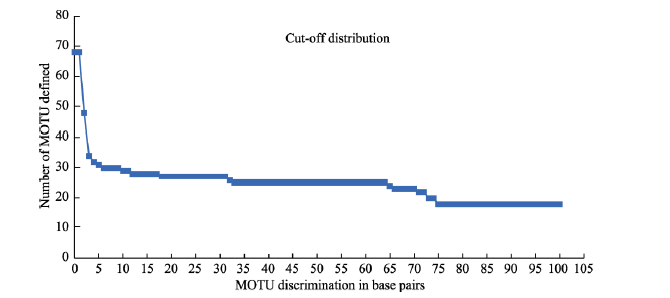

Fig. 4

Variation in the number of MOTUs defined at 0 to100 cut-off values for DNA barcodings"

1 Aljanabi SM, Martinez I (1997) Universal and rapid salt- extraction of high quality genomic DNA for PCR-based techniques. Nucleic Acids Research, 25, 4692-4693.
2 Allegrucci G, Rampini M, Russo CD, Lana E, Cocchi S, Sbordoni V (2014) Phylogeography and systematics of the westernmost Italian Dolichopoda species (Orthoptera, Rhaphidophoridae). Zookeys, 437, 1-23.
3 Arnot DE, Roper C, Bayoumi RAL (1993) Digital codes from hypervariable tandemly repeated DNA sequences in the Plasmodium falciparum circumsporozoite gene can genetically barcode isolates. Molecular and Biochemical Parasitology, 61, 15-24.
4 Blaxter M, Mann J, Chapman T, Thomas F, Whitton C, Floyd R, Abebe E (2005) Defining operational taxonomic units using DNA barcoding data. Philosophical Transactions of the Royal Society B: Biological Sciences, 360, 1935-1943.
5 Derocles SAP, Evans DM, Nichols PC, Evans SA, Lunt DH (2015) Determining plant-leaf miner-parasitoid interactions: a DNA barcoding approach. PLoS ONE, 10, e0117872.
6 Floyd R, Abebe E, Papert A, Blaxter M (2002) Molecular barcodes for soil nematode identification. Molecular Ecology, 11, 839-850.
7 He JC, Hu LL, Guo CH, Zhang F (2016) Molecular identification of crab spider from Xiaowutai Mountains, China with DNA barcoding. Journal of Hebei University (Natural Science Edition), 36, 286-292. (in Chinese with English abstract)
[何静超, 胡岚岚, 郭晨辉, 张锋 (2016) 小五台山蟹蛛DNA条形码分子鉴定. 河北大学学报(自然科学版), 36, 286-292.]
8 Hebert PDN, Ratnasingham S, Dewaard JR (2003) Barcoding animal life: cytochrome coxidase subunit 1 divergences among closely related species. Proceedings of the Royal Society B: Biological Sciences, 270(Suppl.1), 96-99.
9 Huang JH, Zhang AB, Mao SL, Huang Y (2013) DNA barcoding and species boundary delimitation of selected species of Chinese Acridoidea (Orthoptera: Caelifera). PLoS ONE, 8, 243-265.
10 Kimura M (1980) A simple method for estimating evolutionary rates of base substitutions through comparative studies of nucleotide sequences. Journal of Molecular Evolution, 16, 111-120.
11 Kolesik P, Butterill PT (2014) New gall midges (Diptera: Cecidomyiidae) from Papua New Guinea. Austral Entomology, 54, 79-86.
12 Li HC, Xia KL (2006) Fauna Sinica, Insecta, Vol. 43, Orthoptera, Acridoidea, Catantopidae. Science Press, Beijing. (in Chinese)
[李鸿昌, 夏凯龄 (2006) 中国动物志昆虫纲第四十三卷直翅目蝗总科斑腿蝗科. 科学出版社, 北京.]
13 Liu Y, Song Y, Li XY (2010) Application of mtDNA cox1 barcodes on molecular identification of insects. Plant Quarantine, 2(24), 46-50. (in Chinese)
[刘勇, 宋毓, 李晓宇 (2010) 基于线粒体cox1基因的DNA条形码技术在昆虫分子鉴定中的应用. 植物检疫, 2(24), 46-50.]
14 Ma C, Liu CX, Yang PC, Kang L (2009) The complete mitochondrial genomes of two band-winged grasshoppers, Gastrimargus marmoratus and Oedaleus asiaticus. BMC Genomics, 10, 550-551.
15 Mcfadden CS, Benayahu Y, Pante E, Thoma JN, Nevarez PA, France SC (2011) Limitations of mitochondrial gene barcoding in Octocorallia. Molecular Ecology Resources, 11, 19-31.
16 Meyer CP, Paulay G (2005) DNA barcoding: error rates based on comprehensive sampling. PLoS Biology, 3, 2229-2238.
17 Oba Y, Ohira H, Murase Y, Moriyama A, Kumazawa Y (2015) DNA barcoding of Japanese click beetles (Coleoptera, Elateridae). PLoS ONE, 10, e0116612.
18 Pan CY, Hu J, Zhang X, Huang Y (2006) The DNA barcoding application of mtDNA COI genes in seven species of Catantopidae (Orthoptera). Entomotaxonomia, 28, 103-110. (in Chinese with English abstract)
[潘程莹, 胡婧, 张霞, 黄原 (2006) 斑腿蝗科(Catantopidae)七种蝗虫线粒体COI基因的DNA条形码研究. 昆虫分类学报, 28, 103-110.]
19 Puillandre N, Lambert A, Brouillet S, Achaz G (2011) ABGD, automatic barcode gap discovery for primary species delimitation. Molecular Ecology, 21, 1864-1877.
20 Ren CG (2009) Governance of Grasshoppers in Baiyangdian. China Agricultural Science and Technology Press, Beijing. (in Chinese)
[任春光 (2009) 白洋淀的蝗虫与治理. 中国农业科学技术出版社, 北京.]
21 Song SB, Shi ZY, Jin Q, Han HL, Liu XF, Hao MD, Zhang AB (2014) Species identification of Noctuidae moths (Insecta: Lepidoptera) from Baoding and Langfang, Hebei, China with DNA barcoding and establishment of a local DNA barcoding library. Chinese Journal of Applied Entomology, 51, 156-168. (in Chinese with English abstract)
[宋韶彬, 石志勇, 金倩, 韩辉林, 刘晓枫, 郝梦迪, 张爱兵 (2014) DNA条形码技术在河北保定、廊坊地区鳞翅目昆虫上的应用及小型区域数据库的构建. 应用昆虫学报, 51, 156-168.]
22 Tamura K, Aotsuka T (1988) Rapid isolation method of animal mitochondrial DNA by the alkaline lysis procedure. Biochemical Genetics, 26, 815-819.
23 Tamura K, Stecher G, Peterson D, Filipski A, Kumar S (2013) MEGA6: molecular evolutionary genetics analysis version 6.0. Molecular Biology and Evolution, 30, 2725-2729.
24 Thompson JD, Gibson TJ, Plewniak F, Jeanmougin F, Higgins DG (1997) The Clustal X windows interface: flexible strategies for multiple sequence alignment aided by quality analysis tools. Nucleic Acids Research, 25, 4876-4882.
25 Velzen RV, Weitschek E, Felici G, Bakker FT (2012) DNA barcoding of recently diverged species: relative performance of matching methods. PLoS ONE, 7, e30490.
26 Vences M, Thomas M, Bonett RM, Vieites DR (2005) Deciphering amphibian diversity through DNA barcoding: chances and challenges. Philosophical Transactions of the Royal Society B: Biological Sciences, 360, 1859-1868.
27 Wiemers M, Fiedler K (2007) Does the DNA barcoding gap exist?-A case study in blue butterflies (Lepidoptera: Lycaenidae). Frontiers in Zoology, 4, 64-68.
28 Xia KL (1994) Fauna Sinica, Insecta, Vol. 4, Orthoptera, Acridoidea, Pamphagidae, Chrotogonidae, Pyrgomorphidae. Science Press, Beijing. (in Chinese)
[夏凯龄 (1994) 中国动物志昆虫纲第四卷直翅目蝗总科癞蝗科瘤锥蝗科锥头蝗科. 科学出版社, 北京.]
29 Yin XC, Xia KL (2003) Fauna Sinica, Insecta, Vol. 32, Orthoptera, Acridoidea, Gomphoceridae, Acrididae. Science Press, Beijing. (in Chinese)
[印象初, 夏凯龄 (2003) 中国动物志昆虫纲第三十二卷直翅目蝗总科槌角蝗科剑角蝗科. 科学出版社, 北京.]
30 Zhao L, Zhao L, Li Q, Ren JL (2015) DNA barcoding of nymph grasshoppers from Xinjiang. Xinjiang Agricultural Sciences, 52, 785-794. (in Chinese with English abstract)
[赵玲, 赵莉, 李琴, 任金龙 (2015) 基于DNA条形码技术识别新疆蝗蝻. 新疆农业科学, 52, 785-794.]
31 Zheng ZM, Xia KL (1998) Fauna Sinica, Insecta, Vol. 10, Orthoptera, Acridoidea, Oedipodidae, Arcypteridae. Science Press, Beijing. (in Chinese)
[郑哲民, 夏凯龄 (1998) 中国动物志昆虫纲第十卷直翅目蝗总科斑翅蝗科网翅蝗科. 科学出版社, 北京.]
