Insect diversity in different stand types of urban forest: A case study at the southern foot of Zijin Mountain, Nanjing

doi:10.17520/biods.2022357

Abstract

Abstract:

Aims: This research aimed to clarify the correlation between various environmental factors, such as anthropogenic impacts, and the insect diversity in urban forests, which can lead to the elucidation of key factors that can affect insect diversity in urban forests. Furthermore, this could result in the development and implementation of more efficient conservation guidelines and conservation strategies for the protection of urban species diversity.

Methods: From late July 2020 to early July 2021, with the use of sweeping method and Malaise traps, we collected insects from six habitats with different stand types from Zijin Mountain, Nanjing, including greenway in artificial broadleaf forest, greenway in broadleaf-conifer mixed forest, wetland in broadleaf-conifer mixed forest, as well as woodlands in artificial coniferous forest, broadleaf-conifer mixed forest, and broadleaf mixed forest. Insects were identified using morphological guides from taxonomic monographs. Shannon-Wiener diversity index, Pielou evenness index, Margalef richness index, and Simpson diversity index were used to evaluate α-diversity. Differences between insect diversity in different habitats and taxonomic orders were evaluated by Kruskal-Wallis analyses. Insect diversity in different habitats was estimated by rarefaction and extrapolation analyses. Bray-Curtis distance was calculated to evaluate the similarity of insect diversity and richness between different habitats. The influence of different environmental variables, both abiotic and biotic, on insect diversity was evaluated by redundancy analysis and Pearson correlation. Both samplings of the whole year and a part of summer were used.

Results: A total of 59,648 insects belonging to 145 species in 78 families and 9 orders were collected. Among these, the orders Lepidoptera, Hemiptera, Hymenoptera, and Diptera had the highest number of species and relative abundance. Most species were captured between July and September. Rarefaction and extrapolation analyses showed that the collections of specimens can represent the insect communities of each habitat. The α-diversity analyses indicated that woodland in broadleaf mixed forest had the highest insect diversity among sampled habitats, while woodland in artificial coniferous forest had the lowest. Although most habitats do not differ significantly in α-diversity, in terms of species composition, only the wetland in broadleaf-conifer mixed forest was moderately similar to the woodland in broadleaf mixed forest. Other habitats were all moderately dissimilar or very dissimilar to each other. The redundancy analyses showed that artificial interference of vegetation, pedestrian volume, altitude, temperature, sunshine duration, and precipitation were the major variables that significantly impacted insect diversity at the southern foot of Zijin Mountain. In addition, Pearson analyses indicated that most variables are correlated to insect diversity. Despite the different effects environmental variables have on the α-diversity of major insect orders, artificial interference of vegetation had the most significant effect, as our results showed that insect diversity significantly decreased with the increase of artificial interference of vegetation. Considering the correlations between insect diversity and other variables that can be attributed to artificial interferences, we determined that vegetation structure was the variable that has the highest degree of influence on insect diversity in urban forests.

Conclusion: This study clarifies key factors affecting insect diversity in urban forests. This could potentially provide theoretical guidance in urban species diversity conservation. Scientific planning and management of vegetation structure may be the key to preserving insect diversity in urban forests. It is thus suggested that more research on the dominant factors affecting the diversity of the major insect groups be carried out. This, even at a smaller scale according to local conditions, could greatly benefit the dynamic management of urban forests.

Key words: urban forest, insect diversity, influencing factors, artificial interference, Zijin Mountain

Chufei Tang, Cheng Ge, Ye Cao, Hongyi Cao, Xiaoxiao Song, Huaijian Liao. Insect diversity in different stand types of urban forest: A case study at the southern foot of Zijin Mountain, Nanjing[J]. Biodiv Sci, 2023, 31(2): 22357.

Add to citation manager EndNote|Ris|BibTeX

URL: https://www.biodiversity-science.net/EN/10.17520/biods.2022357

https://www.biodiversity-science.net/EN/Y2023/V31/I2/22357

Figures/Tables 8

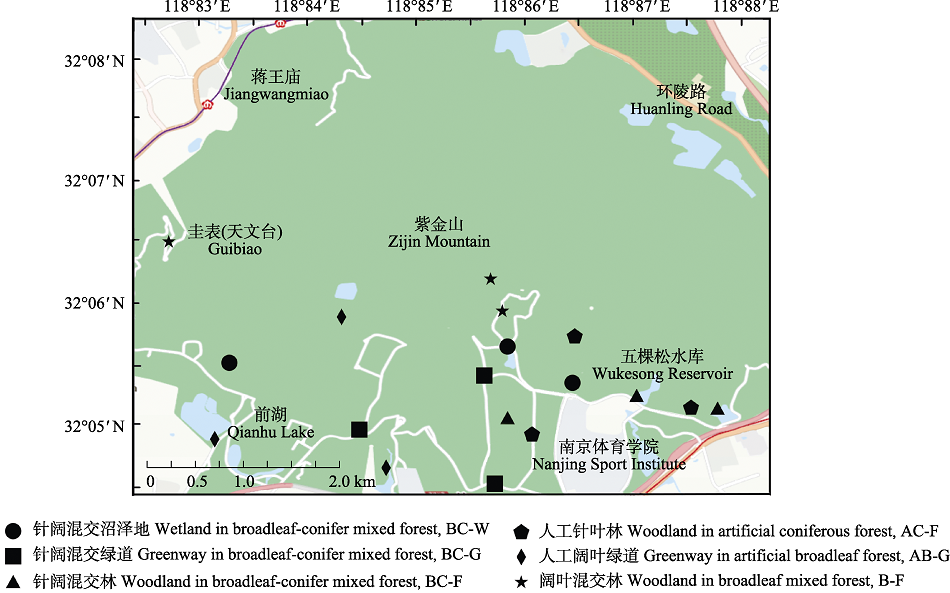

Fig. 1 Distribution of sampling sites for insect diversity survey at the southern foot of Zijin Mountain

Table 1 Insect communities of different sampling periods at the southern foot of Zijin Mountain

类群 Order	科数 No. of families		种数 No. of species		个体数 No. of individuals
类群 Order	7月下旬至9月 Late July to the end of September	全年 Whole year	7月下旬至9月 Late July to the end of September	全年 Whole year	7月下旬至9月 Late July to the end of September	全年 Whole year
膜翅目 Hymenoptera	7	8	13	13	2,740	9,679
鞘翅目 Coleoptera	7	9	15	17	232	1,698
半翅目 Hemiptera	14	14	20	20	1,645	6,807
直翅目 Orthoptera	5	11	7	12	25	245
螳螂目 Mantodea	1	1	1	1	4	4
鳞翅目 Lepidoptera	10	10	29	30	1,861	4,155
蜻蜓目 Odonata	3	3	7	7	59	98
脉翅目 Neuroptera	2	3	2	3	25	30
双翅目 Diptera	19	19	40	42	5,176	36,932
合计 Total	68	78	134	145	11,767	59,648

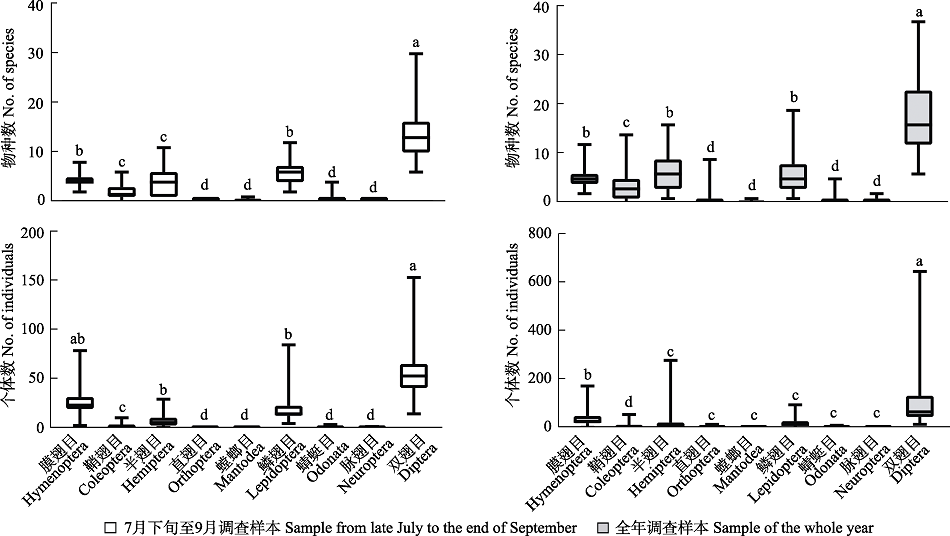

Fig. 2 Number of species and individuals of each insect order at the southern foot of Zijin Mountain. Each box represents the number of species or individuals of an order collected in every sample. No significant difference exists between the number of species/individuals of two orders when they share the same letters. The difference in letters indicates a significant difference between orders (P < 0.05).

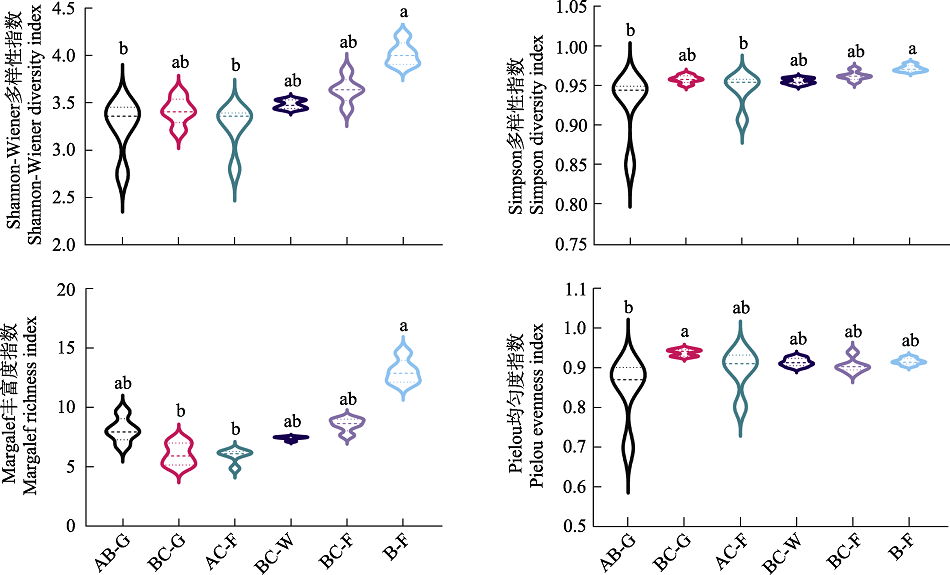

Fig. 3 Insect diversity in different habitats at the southern foot of Zijin Mountain. Each violin represents the diversity index of each sample in each habitat. No significant difference exists between the number of species/individuals of two habitats when they share the same letters. The difference in letters indicates a significant difference between habitats (P < 0.05). The meanings of habitat abbreviations are shown in Fig. 1.

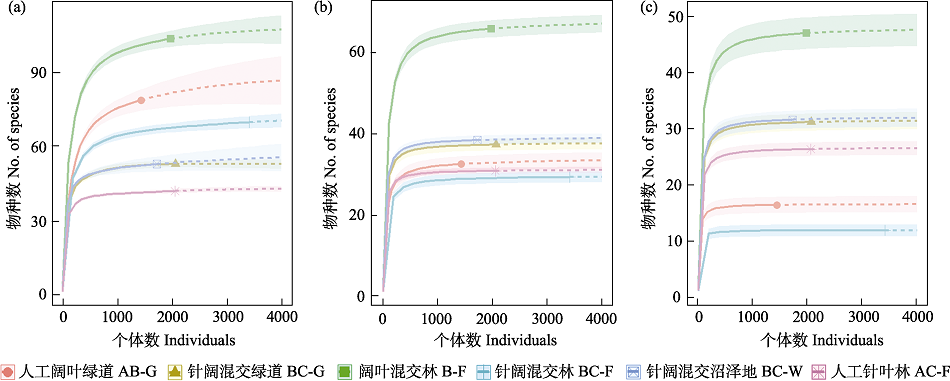

Fig. 4 Estimation of insect diversity in different habitats at the southern foot of Zijin Mountain based on rarefaction and extrapolation analyses. (a) Estimation based on Shannon-Wiener diversity index; (b) Estimation based on Margalef richness index; (c) Estimation based on Simpson diversity index. The solid curves were plotted based on interpolated data and the dashed curves were based on extrapolated data. The meanings of habitat abbreviations are shown in Fig. 1.

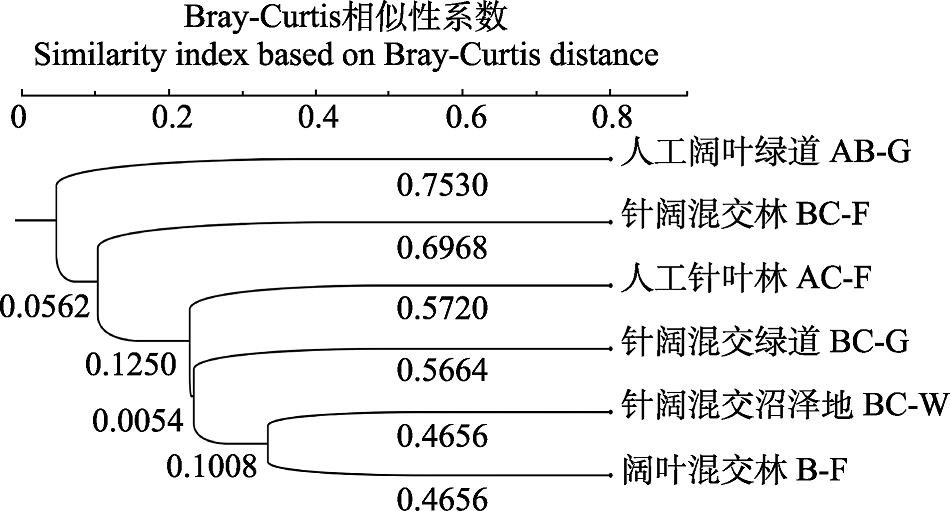

Fig. 5 Similarity cluster of insect communities in different habitats at the southern foot of Zijin Mountain. The meanings of habitat abbreviations are shown in Fig. 1.

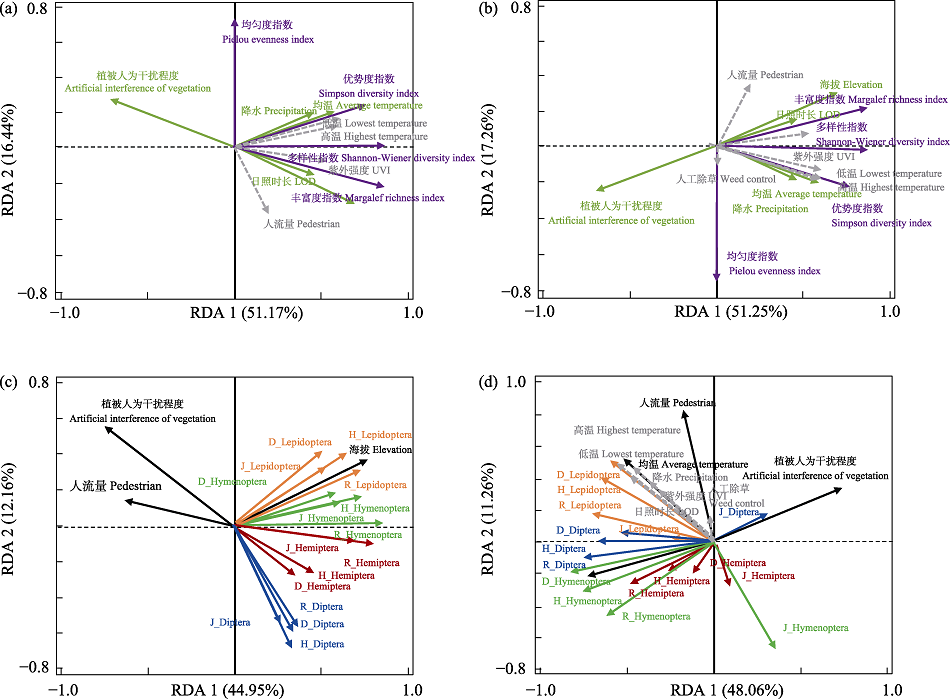

Fig. 6 RDA (Redundancy analysis) sequence diagram of community diversity of insects and environmental factors at the southern foot of the Zijin Mountain. (a) Results based on samplings of Insecta from late July to the end of September; (b) Results based on the whole-year samplings of Insecta; (c) Results based on samplings of Diptera, Lepidoptera, Hymenoptera, and Hemiptera from late July to the end of September; (d) Results based on the whole year samplings of Diptera, Lepidoptera, Hymenoptera, and Hemiptera. LOD, Length of daytime; UVI, Ultra-violet index. For figures a-b, diversity indices are in purple. Factors significantly affected insect diversity are in green. Factors irrelevant to insect diversity are in grey. For figures c-d, factors significantly affected insect diversity are in black. Factors irrelevant to insect diversity are in grey. Diversity indices are in colors. Orange corresponds to Lepidoptera, green corresponds to Hymenoptera, red corresponds to Hemiptera, and blue corresponds to Diptera. ‘D’ represents the Simpson diversity index. ‘H’ represents the Shannon-Wiener diversity index. ‘J’ represents the Pielou evenness index. ‘R’ represents the Margalef richness index.

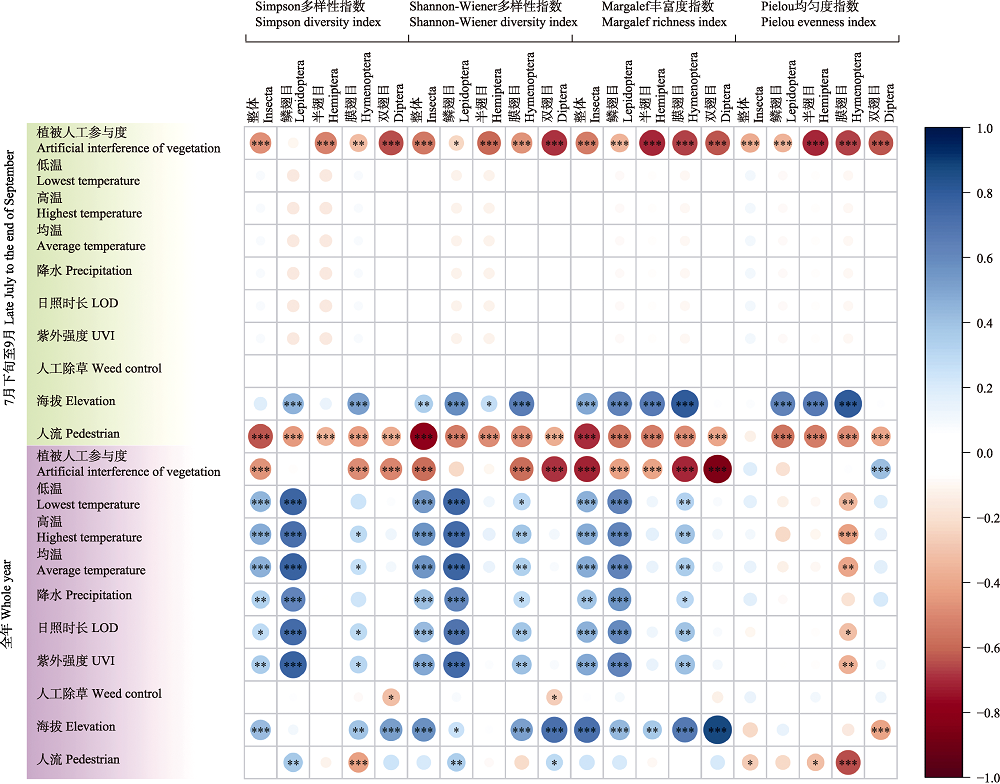

Fig. 7 The correlation between insect diversity and environmental factors from samplings of the southern foot of the Zijin Mountain. The area and color of the circles refer to the strength of correlations. The stronger the correlation is, the larger and deeper the circle is. Circles are in blue if the correlation is positive and in red if the correlation is negative. LOD, Length of daytime; UVI, Ultra-violet index. ‘*’ refer to significance at the 0.05 level. ‘**’ refer to significance at the 0.01 level. ‘***’ refer to significance at the 0.001 level.

References 53

[1]	Ampoorter E, Barbaro L, Jactel H, Baeten L, Boberg J, Carnol M, Castagneyrol B, Charbonnier Y, Dawud SM, Deconchat M, De Smedt P, De Wandeler H, Guyot V, Hӓttenschwiler S, Joly FX, Koricheva J, Milligan H, Muys B, Nguyen D, Ratcliffe S, Raulund-Rasmussen K, Scherer-Lorenzen M, van der Plas F, Keer JV, Verheyen K, Vesterdal L, Allan E (2020) Tree diversity is key for promoting the diversity and abundance of forest-associated taxa in Europe. Oikos, 129, 133-146. DOI URL
[2]	Axmacher JC, Brehm G, Hemp A, Tünte H, Lyaruu HVM, Müller-Hohenstein K, Fiedler K (2009) Determinants of diversity in Afrotropical herbivorous insects (Lepidoptera: Geometridae): Plant diversity, vegetation structure or abiotic factors? Journal of Biogeography, 36, 337-349. DOI URL
[3]	Berthon K, Thomas F, Bekessy S (2021) The role of ‘nativeness’ in urban greening to support animal biodiversity. Landscape and Urban Planning, 205, 103959. DOI URL
[4]	Bispo PC, Branco CCZ, Novaes MC, Costa LSM, Yokoyama E, Barfield M, Holt RD (2021) Partitioning and drivers of aquatic insect beta diversity in mountain streams. Freshwater Science, 40, 644-658. DOI URL
[5]	Cai BH, Cai XM, Huang FS (2017) Insect Taxonomy (revised edition). Chemical Industrial Press, Beijing. (in Chinese)
	[蔡邦华, 蔡晓明, 黄复生 (2017) 昆虫分类学(修订版). 化学工业出版社, 北京.]
[6]	Cepeliauskaite G, Stasiskiene Z (2020) The framework of the principles of sustainable urban ecosystems development and functioning. Sustainability, 12, 720. DOI URL
[7]	Chatelain P, Plant A, Soulier-Perkins A, Daugeron C (2018) Diversity increases with elevation: Empidine dance flies (Diptera, Empididae) challenge a predominant pattern. Biotropica, 50, 633-640. DOI URL
[8]	Chi Y, Zheng W, Shi HH, Sun JK, Fu ZY (2018) Spatial heterogeneity of estuarine wetland ecosystem health influenced by complex natural and anthropogenic factors. Science of the Total Environment, 634, 1445-1462. DOI URL
[9]	Ding SG, Shen SY, Liu KD, Huang XH (2022) A study on the resident distribution and tourist behavior of Zijin Mountain greenway in Nanjing. Landscape Architecture Academic Journal, 39(5), 20-29. (in Chinese with English abstract)
	[丁绍刚, 沈书钰, 刘恺迪, 黄欣虹 (2022) 南京紫金山绿道驻点分布及其游人游赏行为特征研究. 园林, 39(5), 20-29.]
[10]	Dixon P (2003) VEGAN, a package of R functions for community ecology. Journal of Vegetation Science, 14, 927-930. DOI URL
[11]	Dong YQ, Liu QQ, Peng XN, Weng ZY, Liu X, Xu HB, Dai KL, Dong LN, Zhang JC (2022) Effect of human trampling on soil infiltration of natural secondary forest in Zijin Mountain, Nanjing. Journal of Nanjing Forestry University (Natural Sciences Edition), 46(1), 163-170. (in Chinese with English abstract)
	[董一桥, 刘倩倩, 彭孝楠, 翁泽宇, 刘鑫, 徐海兵, 戴康龙, 董丽娜, 张金池 (2022) 人为践踏对南京紫金山天然次生林土壤渗透性的影响. 南京林业大学学报(自然科学版), 46(1), 163-170.]
[12]	Gimesi L, Homoródi R, Szabóki CS, Hufnagel L (2012) The effect of climate change on the phenology of moth abundance and diversity. Applied Ecology and Environmental Research, 10, 349-363. DOI URL
[13]	González-Césped C, Alaniz AJ, Vergara PM, Chiappa E, Zamorano J, Mandujano V (2021) Effects of urban environmental conditions and landscape structure on taxonomic and functional groups of insects. Urban Forestry & Urban Greening, 58, 126902.
[14]	Green OO, Garmestani AS, Albro S, Ban NC, Berland A, Burkman CE, Gardiner MM, Gunderson L, Hopton ME, Schoon ML, Shuster WD (2016) Adaptive governance to promote ecosystem services in urban green spaces. Urban Ecosystems, 19, 77-93. DOI URL
[15]	Han YR, Xue QQ, Song HJ, Qi JY, Gao RH, Cui SP, Men LN, Zhang ZW (2022) Diversity and influencing factors of flower-visiting insects in the Yanshan area. Biodiversity Science, 30, 21448. (in Chinese with English abstract) DOI
	[韩艺茹, 薛琪琪, 宋厚娟, 祁靖宇, 高瑞贺, 崔绍朋, 门丽娜, 张志伟 (2022) 燕山地区访花昆虫多样性及其影响因子. 生物多样性, 30, 21448.] DOI
[16]	Hong ZM (2015) Construction theory of community structure and approaches of landscape optimization for urban forest. Journal of Nanjing Forestry University (Humanities and Social Sciences Edition), 15(1), 106-114. (in Chinese with English abstract)
	[洪志猛 (2015) 城市森林群落结构构建理论与景观优化途径分析. 南京林业大学学报(人文社会科学版), 15(1), 106-114.]
[17]	Hsieh TC, Ma KH, Chao A (2016) iNEXT: An R package for rarefaction and extrapolation of species diversity (Hill numbers). Methods in Ecology and Evolution, 7, 1451-1456. DOI URL
[18]	Jiang LH, Wang BX, Chen AQ, Lan CJ (2009) Effects of benthic macro-invertebrate on decomposition of Acer buergerianum leaf litter in streams. Chinese Journal of Applied Ecology, 20, 1184-1189. (in Chinese with English abstract)
	[姜丽红, 王备新, 陈爱卿, 兰策介 (2009) 大型底栖无脊椎动物对溪流中三角枫落叶分解的影响. 应用生态学报, 20, 1184-1189.]
[19]	Ju F, Song HL, Chen X, Liu SW, Wan ZZ, Dong LN, Cheng Y, Xie Q (2009) Community structure of moth and its dynamic in Zijin Mountain, Nanjing. China Forestry Science and Technology, 23(3), 66-74. (in Chinese with English abstract)
	[居峰, 宋伙林, 陈希, 刘曙雯, 万志洲, 董丽娜, 程岩, 解奇 (2009) 南京紫金山夏季蛾类群落结构及其动态分析. 林业科技开发, 23(3), 66-74.]
[20]	Ju F, Wang PS, Liu SW, Xie Q, Dong LN, Chen X, Song HL, Cheng Y (2010) Change and analysis of species and fauna of butterfly in Zijin Mountain. Journal of Anhui Agricultural Sciences, 38, 1279-1284. (in Chinese with English abstract)
	[居峰, 王鹏善, 刘曙雯, 解奇, 董丽娜, 陈希, 宋伙林, 程岩 (2010) 紫金山蝶类区系种类变化及分析. 安徽农业科学, 38, 1279-1284.]
[21]	Ke A, Sibiya MD, Reynolds C, McCleery RA, Monadjem A, Fletcher RJ (2018) Landscape heterogeneity shapes taxonomic diversity of non-breeding birds across fragmented savanna landscapes. Biodiversity and Conservation, 27, 2681-2698. DOI
[22]	Li XC, Wan ZZ, Huang LB, Xu HB, Liu SW (2006) Patterns of uneven aged stands for scenic forest in Zijin Mountain. Journal of Chinese Urban Forestry, (4), 9-12. (in Chinese with English abstract)
	[李晓储, 万志洲, 黄利斌, 徐海兵, 刘署雯 (2006) 紫金山风景林林相改造异龄复层混交模式研究. 中国城市林业, (4), 9-12.]
[23]	Li YJ, Zhang JD, Bai WK, Ouyang ZY (2018) Insect community composition and diversity of different green spaces in Beijing, China. Ecology and Environmental Sciences, 27, 1044-1051. (in Chinese with English abstract)
	[李玉杰, 张晋东, 白文科, 欧阳志云 (2018) 北京不同功能绿地昆虫群落组成和生物多样性特征. 生态环境学报, 27, 1044-1051.]
[24]	Lundquist MJ, Zhu WX (2019) Aquatic insect diversity in streams across a rural-urban land-use discontinuum. Hydrobiologia, 837, 15-30. DOI
[25]	Ma KP, Huang JH, Yu SL, Chen LZ (1995) Plant community diversity in Dongling Mountain, Beijing, China. II. Species richness, evenness and species diversities. Acta Ecologica Sinica, 15, 268-277. (in Chinese with English abstract)
	[马克平, 黄建辉, 于顺利, 陈灵芝 (1995) 北京东灵山地区植物群落多样性的研究. II. 丰富度、均匀度和物种多样性指数. 生态学报, 15, 268-277.]
[26]	Mendez-Rojas DMM, Cultid-Medina C, Escobar F (2021) Influence of land use change on rove beetle diversity: A systematic review and global meta-analysis of a mega-diverse insect group. Ecological Indicators, 122, 107239. DOI URL
[27]	Miao BG, Peng YQ, Yang DR, Kubota Y, Economo EP, Liu C (2021) Climate and land-use interactively shape butterfly diversity in tropical rainforest and savanna ecosystems of southwestern China. Insect Science, 28, 1109-1120.
[28]	Paradis E, Claude J, Strimmer K (2004) APE: Analyses of phylogenetics and evolution in R language. Bioinformatics, 20, 289-290. DOI PMID
[29]	Qian YQ, Ma KP (1994) Principles and Methods of Biodiversity Research. China Science & Technology Press, Beijing. (in Chinese)
	[钱迎倩, 马克平 (1994) 生物多样性研究的原理与方法. 中国科学技术出版社, 北京.]
[30]	Raupp MJ, Shrewsbury PM, Herms DA (2010) Ecology of herbivorous arthropods in urban landscapes. Annual Review of Entomology, 55, 19-38. DOI PMID
[31]	Reyes-Riveros R, Altamirano A, De la Barrera F, Rozas- Vasquez D, Vieli L, Meli P (2021) Linking public urban green spaces and human well-being: A systematic review. Urban Forestry & Urban Greening, 61, 127105.
[32]	Ricotta C, Podani J (2017) On some properties of the Bray-Curtis dissimilarity and their ecological meaning. Ecological Complexity, 31, 201-205. DOI URL
[33]	Ridzuan NH, Farouk SA, Razak SA, Avicor SW, Taib N, Hamzah SN (2022) Insect biodiversity of urban green spaces in Penang Island, Malaysia. International Journal of Tropical Insect Science, 42, 275-284. DOI
[34]	Shao X, Zhang Q, Yang X (2021) Spatial patterns of insect herbivory within a forest landscape: The role of soil type and forest stratum. Forest Ecosystems, 8, 69. DOI
[35]	Skvarla MJ, Larson JL, Fisher JR, Dowling APG (2020) A review of terrestrial and canopy Malaise traps. Annals of the Entomological Society of America, 114, 27-47. DOI URL
[36]	Steenberg JWN, Millward AA, Nowak DJ, Robinson PJ (2017a) A conceptual framework of urban forest ecosystem vulnerability. Environmental Reviews, 25, 115-126. DOI URL
[37]	Steenberg JWN, Millward AA, Nowak DJ, Robinson PJ (2017b) Forecasting urban forest ecosystem structure, function, and vulnerability. Environmental Management, 59, 373-392. DOI URL
[38]	Tamara MEL, Latty T, Threlfall CG, Hochuli DF (2021) Major insect groups show distinct responses to local and regional attributes of urban green spaces. Landscape and Urban Planning, 216, 104238. DOI URL
[39]	ter Braak CJF (1988) CANOCO—An extension of DECORNA to analyze species-environment relationships. Vegetatio, 75, 159-160. DOI
[40]	Tong LL (2007) Studies on Community Structure and Optimized Models of Urban Forest in Nanjing. PhD dissertation, Nanjing Forestry University, Nanjing. (in Chinese with English abstract)
	[童丽丽 (2007) 南京城市森林群落结构及优化模式研究. 博士学位论文, 南京林业大学, 南京.]
[41]	Topp EN, Loos J (2019) Local and landscape level variables influence butterfly diversity in critically endangered south African renosterveld. Journal of Insect Conservation, 23, 225-237. DOI
[42]	Wang JM, Zheng LJ, Liu H, Xu BW, Zou ZC (2020) The effects of habitat network construction and urban block unit structure on biodiversity in semiarid green spaces. Environmental Monitoring and Assessment, 192, 179. DOI PMID
[43]	Wang M, Liu C, Li XL, Gao JH, Li X, Dong L (2022) Biodiversity characteristics in near-natural community parks: A case study in the central area of Beijing. Acta Ecologica Sinica, 42, 8254-8264. (in Chinese with English abstract)
	[王沫, 刘畅, 李晓璐, 高俊宏, 李霞, 董丽 (2022) 近自然社区公园的生物多样性特征研究——以北京市中心城区为例. 生态学报, 42, 8254-8264.]
[44]	Wang MN, Lu XL, Cui Y, Wang MR, Ding SY (2018) Effects of woodland types with different levels of human disturbance on pollinators: A case study in Gongyi, Henan, China. Acta Ecologica Sinica, 38, 464-474. (in Chinese with English abstract)
	[王美娜, 卢训令, 崔洋, 王梦茹, 丁圣彦 (2018) 不同人为干扰下林地类型对传粉昆虫的影响——以河南省巩义市为例. 生态学报, 38, 464-474.]
[45]	Wintergerst J, Kӓstner T, Bartel M, Schmidt C, Nuss M (2021) Partial mowing of urban lawns supports higher abundances and diversities of insects. Journal of Insect Conservation, 25, 797-808. DOI
[46]	Wu LF, Jiang WH, Liu Y, Li ZL, Liu JX (2017) Effects of different forest stand types on diversity of insect community. Acta Ecologica Sinica, 37, 2217-2224. (in Chinese with English abstract)
	[吴龙飞, 姜文虎, 刘洋, 李忠玲, 刘军侠 (2017) 不同林分类型对昆虫群落多样性的影响. 生态学报, 37, 2217-2224.]
[47]	Xue WQ, Zhao JM (1996) Flies of China. Liaoning Science and Technology Press, Shenyang. (in Chinese)
	[薛万琦, 赵建铭 (1996) 中国蝇类. 辽宁科学技术出版社, 沈阳.]
[48]	Yan J, Ji HL, Zhang Y (2020) Study on Nanjing Purple Mountain National Forest Park influenced by rain-flood in city based on DEM and NDVI. Journal of Anhui Agricultural University, 47, 192-199. (in Chinese with English abstract)
	[严军, 季慧林, 张园 (2020) 基于DEM和NDVI的南京紫金山国家森林公园雨洪影响研究. 安徽农业大学学报, 47, 192-199.]
[49]	Yuan ZX, Guan QW, Li JJ, Han MH, Jin XM, Chen X (2022) Effect of various vegetation restoration types on soil physio-chemical properties. Journal of Northeast Forestry University, 50(1), 52-57. (in Chinese with English abstract)
	[袁在翔, 关庆伟, 李俊杰, 韩梦豪, 金雪梅, 陈霞 (2022) 不同植被恢复模式对紫金山森林土壤理化性质的影响. 东北林业大学学报, 50(1), 52-57.]
[50]	Zhang C, Fang Y, Yan Y, Li K (2011) A study on insect biodiversity of Zhenhai Industrial Estate in Ningbo, Zhejiang Province. Chinese Journal of Applied Entomology, 48, 1087-1093. (in Chinese with English abstract)
	[张萃, 方燕, 严莹, 李恺 (2011) 浙江宁波镇海工业园区昆虫多样性研究. 应用昆虫学报, 48, 1087-1093.]
[51]	Zhang JY, Xian JP, Zhu HX, Shi DH, Hu HB (2012) The investigation on secondary forest community in the south slope of the Purple Mountain. Journal of Northwest Normal University (Natural Science), 48(3), 95-103. (in Chinese with English abstract)
	[张家洋, 鲜靖苹, 朱红霞, 师冬宏, 胡海波 (2012) 紫金山南坡次生林群落调查研究. 西北师范大学学报(自然科学版), 48(3), 95-103.]
[52]	Zhou LY, Ding SY, Lu XL, Liu YM (2020) Effects of anthropogenic disturbance on species diversity and niche of dominant group in pollinators community. Acta Ecologica Sinica, 40, 2111-2121. (in Chinese with English abstract)
	[周立垚, 丁圣彦, 卢训令, 刘娅萌 (2020) 人为干扰对传粉昆虫群落物种多样性及其优势类群生态位的影响. 生态学报, 40, 2111-2121.]
[53]	Zhou Y (2000) Monograph of Chinese Butterflies. Henan Science and Technology Press, Zhengzhou. (in Chinese)
	[周尧 (2000) 中国蝶类志. 河南科学技术出版社, 郑州.]
