Biodiversity Science ›› 2016, Vol. 24 ›› Issue (1): 30-39.doi: 10.17520/biods.2015207

• Orginal Article • Previous Article     Next Article

Responses of spatial pattern of woody plants’ basal area to topographic factors in a tropical karst seasonal rainforest in Nonggang, Guangxi, southern China

Yili Guo1, 2, Bin Wang1, 2, Wusheng Xiang1, 2, Tao Ding1, 2, Shuhua Lu1, 2, Fuzhao Huang1, 2, Shujun Wen1, 2, Dongxing Li1, 2, Yunlin He1, 2, Xiankun Li1, 2, *()

  1. 1 Guangxi Key Laboratory of Plant Conservation and Restoration Ecology in Karst Terrain, Guangxi Institute of Botany, Guangxi Zhuang Autonomous Region and Chinese Academy of Sciences, Guilin, Guangxi 541006
    2 Guangxi Youyiguan Forest Ecosystem National Research Station, Pingxiang, Guangxi 532699
  • Received:2015-07-18 Accepted:2015-11-02 Online:2016-06-12
  • Li Xiankun

Spatial patterns of aboveground biomass are important aspect of species distribution patterns, whereas the environmental heterogeneity caused by the topographical differences in the scope of local scales is the environmental basis for the formation and evolution of this pattern in natural forest systems. In this study, we examined the spatial patterns of total basal area of woody plants, to quantitatively analyze the response mechanisms of the spatial patterns of total basal area to the seven topographic factors using a generalized additive model in a fully mapped 15 ha permanent plot in a northern tropical seasonal rainforest in a karst landscape in southern China. We used the total basal area of all the individuals and each DBH class in each 20 m × 20 m quadrat as a standard to measure the value of aboveground biomass of woody plants. Results showed that the hillside had the highest total basal area but the lowest was found at the ridge of the three habitat types. The total basal area of the ridge was significantly different between the hillside and the depression. Topographic factors had definite effects on the total basal area of woody plants, with the following sequence: elevation > aspect > convexity > rock-bareness rate (RBR) > altitude above channel (ACH) > slope > topographic wetness index (TWI). All topographical factors were statistically significant with the exception of the TWI and slope showing marginally significant. The relationships between the spatial variation of total basal area of woody plants and topographic factors reflected the response mechanisms and growth strategies of woody plants in a tropical seasonal rainforest under the effects of the redistribution of soil, water and light conditions.

Key words: pattern, basal area, topographic factors, contribution rate, Nonggang Dynamics Forest Plot, tropical karst seasonal rainforest

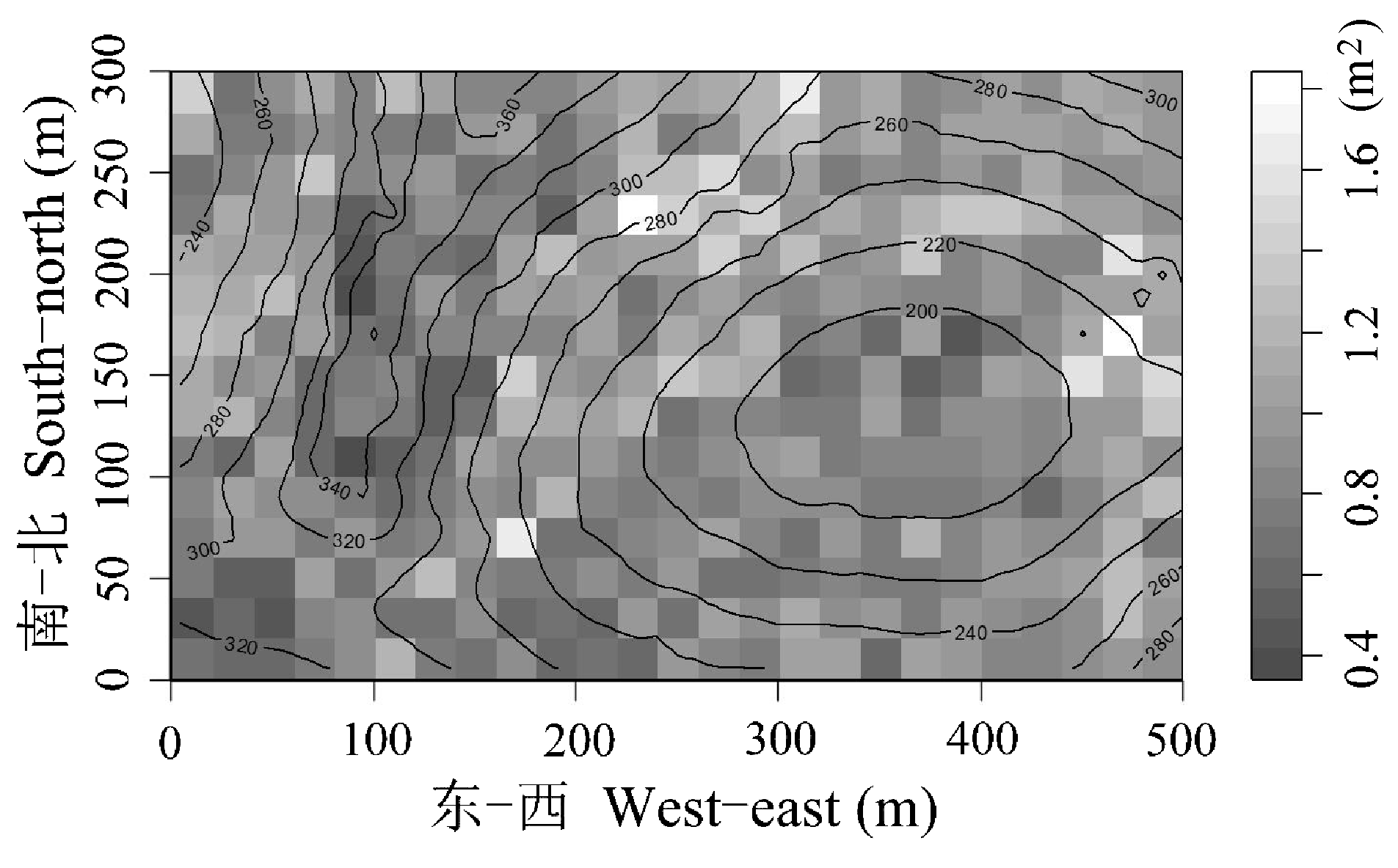

Fig. 1

Spatial patterns of total basal area of karst seasonal rainforest in Nonggang, Guangxi"

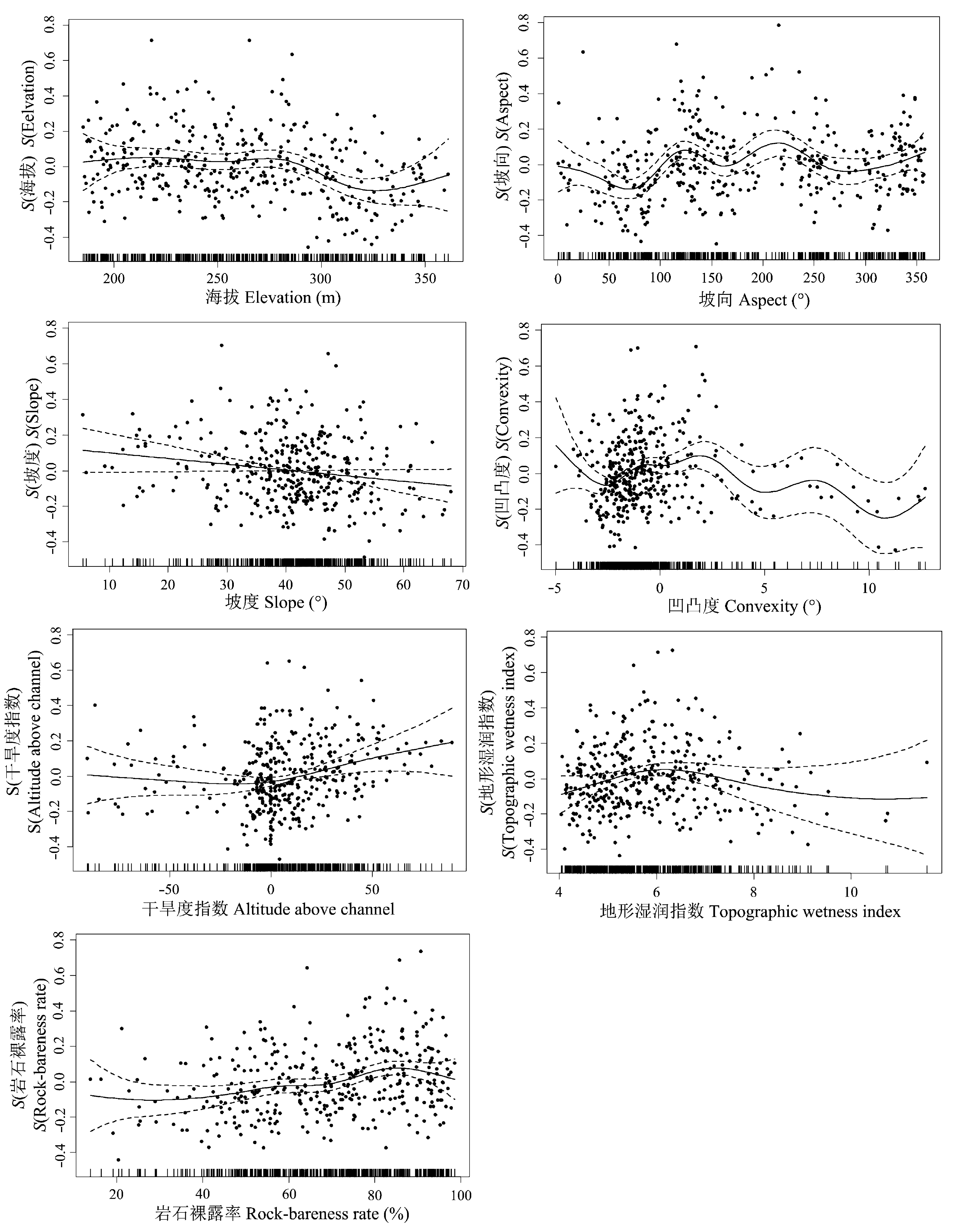

Fig. 2

Results of generalized additive models (GAM) regression between different topographic factors and total basal area of the karst seasonal rainforest in Nonggang, Guangxi. S(topographic factor) is the fitted value of smoothing spline functions, which represent their impacts on the total basal area. The solid lines represent the expected values of total basal area; the dotted lines represent the 95% confidence intervals of equations."

Table 1

Tests of generalized additive models (GAM) for modeling total basal area in the Nonggang karst seasonal rainforest and topographic factors"

径级 DBH
Class (cm)
Environmental parameters
r2adj 累计解释偏差
Cumulative explained deviation (%)
赤池信息准则Akaike Information Criterion (AIC)
All individuals
海拔 Elevation 0.148 16.1 -88.071
坡向 Aspect 0.256 28.4 -130.984
凹凸度 Convexity 0.291 33.1 -142.770
岩石裸露率 Rock-bareness rate 0.313 36.0 -148.860
地形湿润指数Topographic wetness index 0.314 36.4 -149.909
坡度 Slope 0.322 37.4 -152.044
干旱度指数 Altitude above channel 0.336 39.4 -156.461
DBH < 2.5 海拔 Elevation 0.113 12.6 -2,416.026
坡向 Aspect 0.153 18.4 -2,425.371
凹凸度 Convexity 0.193 22.8 -2,441.038
岩石裸露率 Rock-bareness rate 0.266 29.7 -2,477.055
地形湿润指数Topographic wetness index 0.303 34.0 -2,492.105
坡度 Slope 0.311 34.9 -2,495.940
干旱度指数 Altitude above channel 0.328 36.3 -2,506.965
2.5 ≤ DBH < 7.5 海拔 Elevation 0.412 42.1 -1,340.583
坡向 Aspect 0.432 44.7 -1,348.138
凹凸度 Convexity 0.462 48.9 -1,360.737
岩石裸露率 Rock-bareness rate 0.481 51.1 -1,371.831
地形湿润指数Topographic wetness index 0.505 53.1 -1,390.343
坡度 Slope 0.540 57.6 -1,407.893
干旱度指数 Altitude above channel 0.540 57.8 -1,410.145
7.5 ≤ DBH < 22.5 海拔 Elevation 0.194 21.0 -448.036
坡向 Aspect 0.267 29.5 -476.660
凹凸度 Convexity 0.305 34.4 -490.249
岩石裸露率 Rock-bareness rate 0.316 36.2 -492.008
地形湿润指数Topographic wetness index 0.334 38.0 -498.367
坡度 Slope 0.339 38.5 -507.223
干旱度指数 Altitude above channel 0.381 43.6 -522.046
22.5 ≤ DBH 海拔 Elevation 0.263 27.4 -193.325
坡向 Aspect 0.321 34.7 -216.574
凹凸度 Convexity 0.326 35.4 -216.982
岩石裸露率 Rock-bareness rate 0.335 36.5 -220.844
地形湿润指数Topographic wetness index 0.345 37.8 -225.257
坡度 Slope 0.392 42.8 -250.109
干旱度指数 Altitude above channel 0.398 43.7 -251.184

Table 2

The Spearman correlations (rho values) between different topographic factors"

坡度 Slope (SLO) 凹凸度 Convexity (CON) 坡向 Aspect (ASP) 地形湿润指数Topographic wetness index (TWI) 干旱度指数 Altitude above channel (ACH) 岩石裸露率 Rock-bareness rate (RBR) 胸高断面积之和
Total basal area
海拔 Elevation (ELE) 0.578** 0.466** 0.052 -0.701** 0.289** 0.450** -0.147*
SLO 0.336** 0.205* -0.631** 0.220** 0.509** -0.080
CON 0.025 -0.564** 0.518** 0.300** 0.051
ASP -0.098 -0.159* 0.140* 0.134*
TWI -0.629** -0.326** 0.035
ACH -0.016 0.083
RBR 0.044
1 Alves LF, Vieira SA, Scaranello MA, Camargo PB, Santos FAM, Joly CA, Martinelli LA (2010) Forest structure and live aboveground biomass variation along an elevational gradient of tropical Atlantic moist forest (Brazil). Forest Ecology and Management, 260, 679-691.
2 Burnham KP, Anderson DR (2002) Model Selection and Multimodel Inference: A Practical Information-Theoretic Approach, 2nd edn. Springer, New York.
3 Cantón Y, Del Barrio G, Solé-Benet A, Lázaro R (2004) Topographic controls on the spatial distribution of ground cover in the Tabernas badlands of SE Spain. Catena, 55, 341-365.
4 Chauvel A, Lucas Y, Boulet R (1987) On the genesis of the soil mantle of the region of Manaus, Central Amazonia. Brazil Experientia, 43, 234-241.
5 Clements R, Sodhi N S, Schilthuizen M, Ng PK (2006) Limestone karsts of Southeast Asia: imperiled arks of biodiversity. BioScience, 56, 733-742.
6 Condit R (1998) Tropical Forest Census Plots: Methods and Results from Barro Colorado Island, Panama and a Comparison with Other Plots. Springer, Berlin.
7 Deng JM, Qin BQ, Wang BW (2015) Quick implementing of generalized additive models using R and its application in bluegreen algal bloom forecasting. Chinese Journal of Ecology, 34, 835-842. (in Chinese with English abstract)
[邓建明, 秦伯强, 王博雯 (2015) 广义可加模型在R中的快捷实现及蓝藻水华预测分析中的应用. 生态学杂志, 34, 835-842.]
8 Deng ZQ (1988) Report on the investigation of karst geology from Nonggang Natural Reserve. Guihaia, (S1), 1-16. (in Chinese)
[邓自强 (1988) 广西弄岗自然保护区综合考察报告. 广西植物, S1, 1-16.]
9 Dong X, Bennion H, Maberly SC, Sayer CD, Simpson GL, Battarbee RW (2012) Nutrients exert a stronger control than climate on recent diatom communities in Esthwaite Water: evidence from monitoring and palaeolimnological records. Freshwater Biology, 57, 2044-2056.
10 Engelbrecht BMJ, Kursar TA, Tyree MT (2005) Drought effects on seedling survival in a tropical moist forest. Trees: Structure and Function, 19, 312-321.
11 Guisan A, Edwards Jr TC, Hastie T (2002) Generalized linear and generalized additive models in studies of species distributions: setting the scene. Ecological Modelling, 157, 89-100.
12 Guo FT, Hu HQ, Jin S, Ma ZH, Zhang Y (2010) Relationship between forest lighting fire occurrence and weather factors in Daxing’an Mountains based on negative binomial model and zero-inflated negative binomial models. Chinese Journal of Plant Ecology, 34, 571-577. (in Chinese with English abstract)
[郭福涛, 胡海清, 金森, 马志海, 张扬 (2010) 基于负二项和零膨胀负二项回归模型的大兴安岭地区雷击火与气象因素的关系. 植物生态学报, 34, 571-577.]
13 Guo YL, Wang B, Xiang WS, Ding T, Lu SH, Huang FZ, Li DX, Wen SJ, He YL, Li XK (2015a) Sprouting characteristics of tree species in 15 ha northern tropical karst seasonal rain forest dynamics plot in Nonggang, Guangxi, southern China. Chinese Journal of Ecology, 34, 955-961. (in Chinese with English abstract)
[郭屹立, 王斌, 向悟生, 丁涛, 陆树华, 黄甫昭, 李冬兴, 文淑均, 何运林, 李先琨 (2015a) 弄岗北热带喀斯特季节性雨林15 ha样地萌生特征分析. 生态学杂志, 34, 955-961.]
14 Guo YL, Wang B, Xiang WS, Ding T, Lu SH, Huang FZ, Li DX, Wen SJ, He YL, Li XK (2015b) Dynamics of density-dependent effects of tree species in a 15 ha seasonal rain forest plot in northern tropical karst in Nonggang, Guangxi, southern China. Chinese Science Bulltin, 60, 1602-1611. (in Chinese with English abstract)
[郭屹立, 王斌, 向悟生, 丁涛, 陆树华, 黄甫昭, 李冬兴, 文淑均, 何运林, 李先琨 (2015b) 弄岗喀斯特季节性雨林15 ha样地密度制约效应分析. 科学通报, 60, 1602-1611.]
15 Harms KE, Condit R, Hubbell SP, Foster RB (2001) Habitat associations of trees and shrubs in a 50-ha neotropical forest plot. Journal of Ecology, 89, 947-959.
16 Hastie TJ, Tibshirani RJ (1990) Generalized Additive Models. CRC Press, Boca Raton.
17 Huang FZ, Wang B, Ding T, Xiang WS, Li XK, Zhou AP (2014) Numerical classification of associations in a northern tropical karst seasonal rain forest and the relationships of these associations with environmental factors. Biodiversity Science, 22, 157-166. (in Chinese with English abstract)
[黄甫昭, 王斌, 丁涛, 向悟生, 李先琨, 周爱萍 (2014) 弄岗北热带喀斯特季节性雨林群丛数量分类及与环境的关系. 生物多样性, 22, 157-166.]
18 Jiang ZZ, Yuan DX (1999) Dynamics features of the epikarst zone and their significance in environment sand resources. Acta Geoscientica Sinica, 20, 302-308. (in Chinese with English abstract)
[蒋忠诚, 袁道先 (1999) 表层岩溶带的岩溶动力学特征及其环境和资源意义. 地球学报, 20, 302-308.]
19 John R, Dalling JW, Harms KE, Yavitt JB, Stallard RF, Mirabello M, Hubbell SP, Valencia R, Navarrete H, Vallejo M, Foster RB (2007) Soil nutrients influence spatial distributions of tropical tree species. Proceedings of the National Academy of Sciences, USA, 104, 864-869.
20 Kanagaraj R, Wiegand T, Comita LS, Huth A (2011) Tropical tree species assemblages in topographical habitats change in time and with life stage. Journal of Ecology, 99, 1441-1452.
21 Lai JS, Mi XC, Ren HB, Ma KP (2009) Species-habitat associations change in a subtropical forest of China. Journal of Vegetation Science, 20, 415-423.
22 Li XK, Su ZM, Lü SH, Ou ZL, Xiang WS, Qu Z, Lu SH (2003) The spatial pattern of natural vegetation in the karst regions of Guangxi and the ecological signality for ecosystem rehabilitation and reconstruction. Journal of Mountain Science, 21, 129-139. (in Chinese with English abstract)
[李先琨, 苏宗明, 吕仕洪, 欧祖兰, 向悟生, 区智, 陆树华 (2003) 广西岩溶植被自然分布规律及对岩溶生态恢复重建的意义. 山地学报, 21, 129-139.]
23 Li YB, Hou JJ, Xie DT (2002) The recent development of research on karst system of Southwest China. Scientia Geographica Sinica, 22, 365-370. (in Chinese with English abstract)
[李阳兵, 侯建筠, 谢德体 (2002) 中国西南岩溶生态研究进展. 地理科学, 22, 365-370.]
24 Lin DM, Lai JS, Muller-Landau HC, Mi XC, Ma KP (2012) Topographic variation in aboveground biomass in a subtropical evergreen broad-leaved forest in China. PLoS ONE, 7, e48244.
25 Liu HF, Xue DY, Sang WG (2012) Effect of topographic factors on the relationship between species richness and aboveground biomass in a warm temperate forest. Ecology and Environmental Sciences, 21, 1403-1407.
[刘海丰, 薛达元, 桑卫国 (2012) 地形因子对暖温带森林群落物种丰富度-地上生物量关系的影响. 生态环境学报, 21, 1403-1407.]
26 Liu XL, Shi ZM, Yang DS, Liu SR, Yang YP, Ma QY (2005) Advances in study on changes of biodiversity and productivity along elevational gradient in mountainous plant community. World Forestry Research, 18(4), 27-34. (in Chinese with English abstract)
[刘兴良, 史作民, 杨冬生, 刘世荣, 杨玉坡, 马钦彦 (2005) 山地植物群落生物多样性与生物生产力海拔梯度变化研究进展. 世界林业研究, 18(4), 27-34.]
27 Luizão RCC, Luizão FJ, Paiva RQ, Monteiro TF, Sousa LS, Kruijt B (2004) Variation of carbon and nitrogen cycling processes along a topographic gradient in a central Amazonian forest. Global Change Biology, 10, 592-600.
28 Marshall AR, Willcock S, Platts PJ, Lovetta JC, Balmfordd A, Burgessd ND, Lathama JE, Munishih PKT, Saltera R, Shirimah DD, Lewisc SL (2012) Measuring and modelling aboveground carbon and tree allometry along a tropical elevation gradient. Biological Conservation, 154, 20-33.
29 Mascaro J, Asner G P, Muller-Landau H C, van Breugel M, Hall J, Dahlin K (2011) Controls over aboveground forest carbon density on Barro Colorado Island, Panama. Biogeosciences, 8, 1615-1629.
30 McEwan RW, Lin YC, Sun IF, Hsieh CF, Su SH, Chang LW, Song GZM, Wang HH, Hwong JL, Lin KC, Yang KC, Chiang JM (2011) Topographic and biotic regulation of aboveground carbon storage in subtropical broad-leaved forests of Taiwan. Forest Ecology and Management, 262, 1817-1825.
31 McEwan RW, Muller RN (2006) Spatial and temporal dynamics in canopy dominance of an old-growth central Appalachian forest. Canadian Journal of Forest Research, 36, 1536-1550.
32 Punchi-Manage R, Getzin S, Wiegand T, Kanagaraj R, Gunatilleke CVS, Gunatilleke IAUN, Wiegand K, Huth A (2013) Effects of topography on structuring local species assemblages in a Sri Lankan mixed dipterocarp forest. Journal of Ecology, 101, 149-160.
33 R Core Team (2014) R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing, Vienna, Austria.
34 Sun HL (2005) Ecosystem of China. Science Press, Beijing. (in Chinese)
[孙鸿烈 (2005) 中国生态系统. 科学出版社, 北京.]
35 Sutherland WJ, Aveling R, Bennun L, Chapman E, Clout M, Côté IM, Depledge MH, Dicks LV, Dobson AP, Fellman L, Fleishman E, Gibbons DW, Keim B, Lickorish F, Lindenmayer DB, Monk5 KA, Norris K, Peck LS, Prior SV, Scharlemann JPW, Spalding M, Watkinson AR (2012) A horizon scan of global conservation issues for 2012. Trends in Ecology and Evolution, 27, 12-18.
36 Swartzman G, Huang CH, Kaluzny S (1992) Spatial analysis of Bering Sea groundfish survey data using generalized additive models. Canadian Journal of Fisheries and Aquatic Sciences, 49, 1366-1378.
37 Takyu M, Aiba SI, Kitayama K (2003) Changes in biomass, productivity and decomposition along topographical gradients under different geological conditions in tropical lower montane forests on Mount Kinabalu, Borneo. Oecologia, 134, 397-404.
38 Tarboton DG (1997) A new method for the determination of flow directions and upslope areas in grid digital elevation models. Water Resources Research, 33, 309-319.
39 Valencia R, Foster RB, Villa G, Condit R, Svenning JC, Hernández C, Romoleroux K, Losos E, Magård E, Balslev H (2004) Tree species distributions and local habitat variation in the Amazon: large forest plot in eastern Ecuador. Journal of Ecology, 92, 214-229.
40 Wang B, Huang YS, Li XK, Xiang WS, Ding T, Huang FZ, Lu SH, Han WH, Wen SJ, He LJ (2014) Species composition and spatial distribution of a 15 ha northern tropical karst seasonal rain forest dynamics study plot in Nonggang, Guangxi, southern China. Biodiversity Science, 22, 141-156. (in Chinese with English abstract)
[王斌, 黄俞淞, 李先琨, 向悟生, 丁涛, 黄甫昭, 陆树华, 韩文衡, 文淑均, 何兰军 (2014) 弄岗北热带喀斯特季节性雨林15 ha监测样地的树种组成与空间分布. 生物多样性, 22, 141-156.]
41 Wood SN (2001) mgcv: GAMs and generalized ridge regression for R. R News, 1, 20-25.
42 Wood SN (2004) Stable and efficient multiple smoothing parameter estimation for generalized additive models. Journal of the American Statistical Association, 99, 673-689.
43 Wood SN (2006a) Low rank scale invariant tensor product smooths for generalized additive mixed models. Biometrics, 62, 1025-1036.
44 Wood SN (2006b) Generalized Additive Models: An Introduction with R. Chapman and Hall/CRC Press, London.
