全球锹甲的几何形态学数据集

doi:10.17520/biods.2021160

生物多样性 ›› 2021, Vol. 29 ›› Issue (9): 1159-1164. DOI: 10.17520/biods.2021160

全球锹甲的几何形态学数据集

佟一杰¹^,², 张萌娜¹^,³, 万霞⁴, 杨星科¹^,⁵^,^*(), 白明¹^,^*()

1.中国科学院动物研究所动物进化与系统学重点实验室, 北京 100101
2.中国科学院大学, 北京 100049
3.深圳市方森园林花卉有限公司, 广东深圳 518055
4.安徽大学资源与工程学院, 合肥 230601
5.广东省科学院动物研究所, 广东省动物保护与资源利用重点实验室, 广东省野生动物保护与利用公共实验室, 广州 510260

收稿日期:2021-04-26 接受日期:2021-05-21 出版日期:2021-09-20 发布日期:2021-06-13
通讯作者: 杨星科,白明
作者简介:yangxk@ioz.ac.cn
* E-mail: baim@ioz.ac.cn;
第一联系人：
^#共同第一作者
基金资助:
国家科技基础资源调查专项(2019FY100400);国家自然科学基金(31961143002);中国科学院“一带一路”科技合作行动专项

A geometric morphometric dataset of stag beetles

Yijie Tong¹^,², Mengna Zhang¹^,³, Josh Jenkins Shaw¹, Xia Wan⁴, Xingke Yang¹^,⁵^,^*(), Ming Bai¹^,^*()

1 Key Laboratory of Zoological Systematics and Evolution, Institute of Zoology, Chinese Academy of Sciences, Beijing 100101
2 University of Chinese Academy of Sciences, Beijing 100049
3 Shenzhen Fangsen Gardening & Flowers Co., Ltd, Shenzhen, Guangdong 518055
4 School of Resources & Engineering, Anhui University, Hefei 230601
5 Guangdong Key Laboratory of Animal Conservation and Resource Utilization, Guangdong Public Laboratory of Wild Animal Conservation and Utilization, Institute of Zoology, Guangdong Academy of Sciences, Guangzhou 510260

Received:2021-04-26 Accepted:2021-05-21 Online:2021-09-20 Published:2021-06-13
Contact: Xingke Yang,Ming Bai
About author:First author contact:
^#Co-first authors

1. 全球锹甲的几何形态学数据集.zip(918KB)

摘要/Abstract

摘要：

几何形态学是通过定量分析手段对生物的形态特征在几何空间中的变化进行测量, 并将这些测量得到的信息转变为数字信息进行统计学分析以达到形态特征间比较的目的, 目前被越来越多地用于探索生物的特征进化和多样性研究。先前的研究通常提取、比对生物的间断性特征信息用以类群之间的划分, 针对连续性特征研究的缺乏使得有关生物进化和形态学的相关知识变得匮乏。锹甲(鞘翅目: 锹甲科)由于其性二型、雄虫多型性和独特的习性成为形态学研究的重要类群。基于此, 本研究中我们提供了一个包含1,302种锹甲成虫(涵盖全世界99%已知种)的形态学数据集, 数据集包含锹甲的典型的连续性特征, 即前胸背板和鞘翅的外轮廓形态。我们提供的数据集为甲虫的生物多样性、系统发育和进化生物学在内的多个学科的研究提供基础。

数据库(集)基本信息简介

数据库(集)名称		全球锹甲的几何形态学数据集
作者		佟一杰, 张萌娜, Josh Jenkins Shaw, 万霞, 杨星科, 白明
通迅作者		杨星科(yangxk@ioz.ac.cn), 白明(baim@ioz.ac.cn)
时间范围		2019年
地理区域		全球
文件大小		929.48 KB
数据格式		.tps,.xlsx
数据链接		http://www.dataopen.info/article/204 http://doi.org/10.24899/do.202104001 https://www.biodiversity-science.net/fileup/1005-0094/DATA/2021160.zip
数据库(集)组成		数据集共包括3个文件: (1) Morphological dataset of pronotum.zip, 是所有锹甲测试样本的前胸背板的标点数据, 数据量274.65 KB; (2) Morphological dataset of elytron.zip, 是所有锹甲测试样本的鞘翅的标点数据, 数据量499.83 KB; (3) Classification.zip, 是所有锹甲测试样本的分类信息数据, 数据量155 KB。

关键词: 几何形态学, 锹甲, 连续性特征, 前胸背板, 鞘翅

Abstract

Stag beetles (Coleoptera: Lucanidae) have become an important model group for morphological research due to their sexual dimorphism, male polymorphism, and unique behaviors. Here we present a preliminary database of geometric morphometrics for 1,302 stag beetles, which includes nearly 99% of described species from around the world. This new dataset comprises morphological information from two continuous traits, the curves of the pronotum and elytron, both of which are typical characters of stag beetles. Two curves were measured from the left contours of the pronotum and elytron to represent their external forms. Curve 1 was measured from the middle of the anterior margin of the pronotum to the middle of the posterior margin of the pronotum. Curve 2 started from the anterior margin of the left elytron and terminated at the rear edge. Each curve was resampled into 25 and 50 equally spaced semi-landmarks, respectively. Our dataset provides a baseline for future research in several disciplines, including biodiversity, phylogeny and evolutionary biology.

Database/Dataset Profile

Title	A geometric morphometric dataset of stag beetles
Authors	Yijie Tong, Mengna Zhang, Josh Jenkins Shaw, Xia Wan, Xingke Yang, Ming Bai
Corresponding authors	Xingke Yang (yangxk@ioz.ac.cn), Ming Bai (baim@ioz.ac.cn)
Time range	2019
Geographical scope	Global
File size	929.48 KB
Data format	.tps,.xlsx
Data link	http://www.dataopen.info/article/204 http://doi.org/10.24899/do.202104001 https://www.biodiversity-science.net/fileup/1005-0094/DATA/2021160.zip
Database/Dataset composition	The dataset consists of 3 subsets in total: Morphological dataset of pronotum.zip is the punctuation data of the pronotum of all stag beetle test samples, the data volume is 274.65 KB; (2) Morphological dataset of elytron.zip is the punctuation data of the elytra of all stag beetle test samples, the data volume is 499.83 KB; (3) Classification.zip is the classification information data of all the stag beetle test samples, the data volume is 155 KB.

Key words: geometric morphometrics, stag beetle, continuous characters, pronotum, elytron

佟一杰, 张萌娜, 万霞, 杨星科, 白明 (2021) 全球锹甲的几何形态学数据集. 生物多样性, 29, 1159-1164. DOI: 10.17520/biods.2021160.

Yijie Tong, Mengna Zhang, Josh Jenkins Shaw, Xia Wan, Xingke Yang, Ming Bai (2021) A geometric morphometric dataset of stag beetles. Biodiversity Science, 29, 1159-1164. DOI: 10.17520/biods.2021160.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.biodiversity-science.net/CN/10.17520/biods.2021160

https://www.biodiversity-science.net/CN/Y2021/V29/I9/1159

图/表 3

表1 测试亚科类群的取样信息

Table 1 The sampled information of each subfamily

测试亚科级类群 Test subfamily-level group	族级阶元样本量 Number of tribes sampled	属级阶元样本量 Number of genera sampled	种级阶元样本量 Number of species sampled
斑纹锹甲亚科 Aesalinae	3	7	41
金锹甲亚科 Lampriminae	2	5	11
锹甲亚科 Lucaninae	4	89	1,225
Syndesinae	0	3	25
总计 Total	10	104	1,302

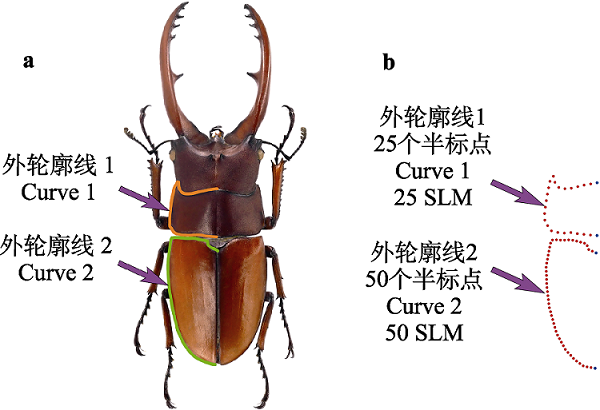

图1 几何形态学分析中的测试曲线(a)及半标点(SLM)(b)的标注(图示为Pristoderus viridipictus)

Fig. 1 Description of the curves (a) and semi-landmarks (SLM) (b) used in the geometric morphometric analysis (Pristoderus viridipictus)

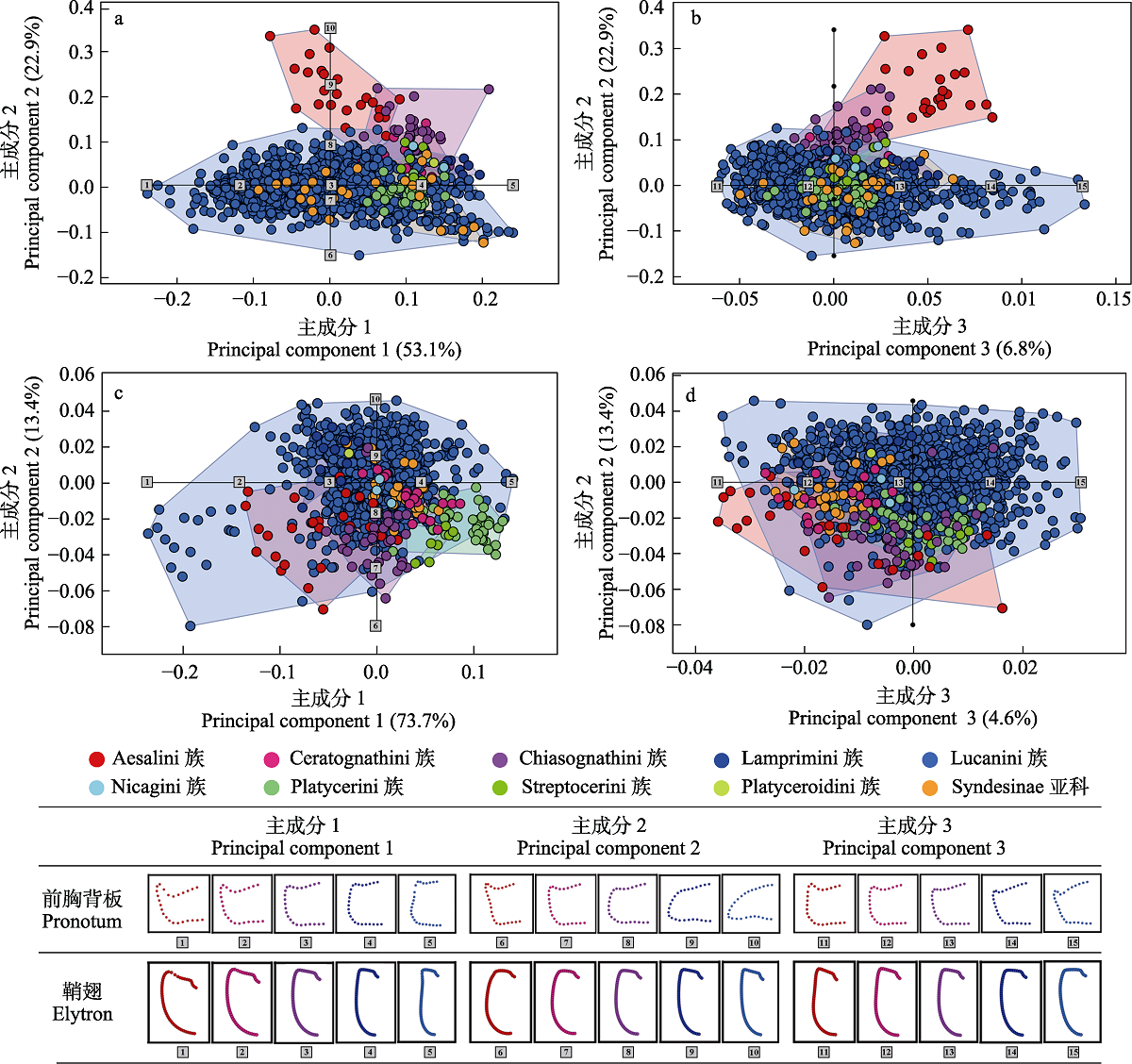

图2 锹甲科的测试特征的形态变化(族级阶元)。a, 前胸背板沿主成分轴1和主成分轴2的形态变化; b, 前胸背板沿主成分轴2和主成分轴3的形态变化; c, 鞘翅沿主成分轴1和主成分轴2的形态变化; d, 鞘翅沿主成分轴2和主成分轴3的形态变化。

Fig. 2 Deformation trend of test characters (tribe-level test) in lucanid beetles. a, Deformation trend of the pronotum along PC1 and PC2. b, Variation of the pronotum along PC2 and PC3. c, Variation of the elytron along PC1 and PC2. d, Variation of the elytron along PC2 and PC3.

参考文献 36

[1]	Akiyama K, Ohmono S (2000) The Buprestid Beetles of the World. Mushi-Sha Press, Tokyo.
[2]	Bai M, Beutel RG, Liu WG, Li S, Zhang MN, Lu YY, Song KQ, Ren D, Yang XK (2014) Description of a new species of Glaresidae (Coleoptera: Scarabaeoidea) from the Jehol Biota of China with a geometric morphometric evaluation. Arthropod Systematics & Phylogeny, 72, 223-236.
[3]	Bai M, Li S, Lu YY, Yang HD, Tong YJ, Yang XK (2015) Mandible evolution in the Scarabaeinae (Coleoptera: Scarabaeidae) and adaptations to coprophagous habits. Frontiers in Zoology, 12, 1-10. DOI URL
[4]	Benesh B (1960) Coleopterorum Catalogus. Part 8. Lucanidea. Springer, Berlin.
[5]	Beutel RG, Leschen RAB (2011) Handbook of Zoology, Vol. IV, Part 38, Coleoptera, Beetles, Vol. 1: Morphology and Systematics (Archostemata, Adephaga, Myxophaga, Polyphaga partim). Walter de Gruyter, Berlin.
[6]	Bookstein FL (1986) Size and shape spaces for landmark data in two dimensions. Statistical Science, 1, 181-222.
[7]	Bookstein FL (1989) Principal warps: Thin-plate splines and the decomposition of deformations. IEEE Transactions on Pattern Analysis and Machine Intelligence, 11, 567-585. DOI URL
[8]	Bookstein FL (1991) Thin-plate Splines and the Atlas Problem for Biomedical Images. Springer, Berlin.
[9]	Bookstein FL (1997) Morphometric Tools for Landmark Data:Geometry and Biology. Cambridge University Press, Cambridge.
[10]	Bouchard P, Bousquet Y, Davies AE, Alonso ZMA, Lawrence JF, Lyal CHC, Newton AF, Reid CAM, Schmitt M, Slipinski SA, Smith ABT (2011) Family-group names in Coleoptera (Insecta). ZooKeys, 88, 1-972. DOI URL
[11]	Chapman RF (1998) The Insects:Structure and Function. Cambridge University Press, Cambridge.
[12]	Evans MEG (1977) Locomotion in the Coleoptera Adephaga, especially Carabidae. Journal of Zoology, 181, 189-226. DOI URL
[13]	Farré M, Tuset VM, Maynou F, Recasens L, Lombarte A (2013) Geometric morphology as an alternative for measuring the diversity of fish assemblages. Ecological Indicators, 29, 159-166. DOI URL
[14]	Fisher RA (1938) The statistical utilization of multiple measurements. Annals of Eugenics, 8, 376-386. DOI URL
[15]	Francoy TM, Bonatti V, Viraktamath S, Rajankar BR (2016) Wing morphometrics indicates the existence of two distinct phenotypic clusters within population of Tetragonula iridipennis (Apidae: Meliponini) from India. Insectes Sociaux, 63, 109-115. DOI URL
[16]	Fujita H (2010) The Lucanid Beetles of the World. Mushi-Sha Press, Tokyo.
[17]	Kim SI, Farrell BD (2015) Phylogeny of world stag beetles (Coleoptera: Lucanidae) reveals a Gondwanan origin of Darwin's stag beetle. Molecular Phylogenetics and Evolution, 86, 35-48. DOI URL
[18]	Klingenberg CP (2011) MorphoJ: An integrated software package for geometric morphometrics. Molecular Ecology Resources, 11, 353-357. DOI PMID
[19]	Kozak KH, Wiens JJ (2016) What explains patterns of species richness? The relative importance of climatic-niche evolution, morphological evolution, and ecological limits in salamanders. Ecology and Evolution, 6, 5940-5949. DOI URL
[20]	MacLeod N (2017) Morphometrics: History, development methods and prospects. Zoological Systematics, 42, 4-33.
[21]	Mizunuma T (1994) The Lucanid Beetles of the World. Mushi-Sha Press, Tokyo.
[22]	Monte C, Zilioli M, Bartolozzi L (2016) Revision of the Australian species of Figulus MacLeay, 1819 (Coleoptera: Lucanidae). Zootaxa, 4189, 447-484. DOI URL
[23]	Pinratana A, Maes JM (2002) Lucanidae of Thailand. Museo Entomologico de Leon, Leon.
[24]	Polidori C, Jorge A, Nieves-Aldrey JL (2020) Comparative morphology of the antennal ‘release and spread structure' associated with sex pheromone-producing glands in male Cynipoidea. Zoomorphology, 139, 347-360. DOI URL
[25]	Rao CR (1948) The utilization of multiple measurements in problems of biological classification. Journal of the Royal Statistical Society, Series B (Methodological), 10, 159-203. DOI URL
[26]	Ricklefs RE (2012) Species richness and morphological diversity of passerine birds. Proceedings of the National Academy of Sciences, USA, 109, 14482-14487.
[27]	Rohlf FJ, Bookstein FL (1990) Proceedings of the Michigan Morphometrics Workshop. University of Michigan Museum of Zoology, Michigan.
[28]	Rohlf FJ (2005) tpsDig, digitize landmarks and outlines, Version 2.05. Department of Ecology and Evolution, State University of New York at Stony Brook, New York. http://life.bio.sunysb.edu/morph/. (accessed on 2020-09-12)
[29]	Rohlf FJ (2010) tpsUtil. Version 1.47. Suny at Stony Brook, Manhattan. https://tpsutil.software.informer.com/. (accessed on 2021-04-08)
[30]	Smith DR (1988) A synopsis of the sawflies (Hymenoptera: Symphyta) of America south of the United States: Introduction, Xyelidae, Pamphiliidae, Cimbicidae, Diprionidae, Xiphydriidae, Siricidae, Orussidae, Cephidae. Systematic Entomology, 13, 205-261. DOI URL
[31]	Suo ZY, Bai M, Li S, Yang HD, Li T, Ma DY (2015) A geometric morphometric analysis of the morphological variations among Chinese populations of Protaetia brevitarsis (Coleoptera: Scarabaeidae) with an inference of the invading source of its Xinjiang populations. Acta Entomologica Sinica, 58, 408-418. (in Chinese with English abstract)
	[索中毅, 白明, 李莎, 杨海东, 李涛, 马德英 (2015) 中国白星花金龟地理变异的几何形态学分析及其新疆种群的入侵来源推断. 昆虫学报, 58, 408-418.]
[32]	Tong YJ, Yang HD, Ma DY, Bai M (2016) Geometric morphometrics evaluation and adaptive evolution study of Scarabaeinae metendosternites. Acta Entomologica Sinica, 59, 871-879. (in Chinese with English abstract)
	[佟一杰, 杨海东, 马德英, 白明 (2016) 蜣螂后胸叉骨的几何形态学分析及其适应进化研究. 昆虫学报, 59, 871-879.]
[33]	Tong YJ, Yang HD, Josh JS, Yang XK, Bai M (2021) The relationship between genus/species richness and morphological diversity among subfamilies of jewel beetles. Insects, 12, 24. DOI URL
[34]	Van de Kamp T, Greven H (2010) On the architecture of beetle elytra. Entomologie Heute, 22, 191-204.
[35]	Vilhelmsen L (2019) Giant sawflies and their kin: Morphological phylogeny of Cimbicidae (Hymenoptera). Systematic Entomology, 44, 103-127. DOI
[36]	Zhang MN, Ruan YY, Wan X, Tong YJ, Yang XK, Bai M (2019) Geometric morphometric analysis of the pronotum and elytron in stag beetles: Insight into its diversity and evolution. ZooKeys, 833, 21-40.
