生物多样性 ›› 2014, Vol. 22 ›› Issue (6): 725-732.doi: 10.3724/SP.J.1003.2014.14079

所属专题: 野生动物的红外相机监测

• • 上一篇    下一篇

探讨基于红外相机技术对大型猫科动物及其猎物的种群评估方法

李治霖1, 康霭黎2, 郎建民3, 薛延刚3, 任毅2, 朱志文2, 马建章1, 刘培琦2, , A;*(), 姜广顺1, , A;*()

  1. 1 .东北林业大学野生动物资源学院, 国家林业局猫科动物研究中心, 哈尔滨 150040
    2 .国际野生生物保护学会(WCS)中国项目, 北京 100080
    3 .吉林珲春东北虎国家级自然保护区管理局, 吉林珲春 133300
  • 收稿日期:2014-04-14 接受日期:2014-10-08 出版日期:2014-11-20
  • 通讯作者: 刘培琦,姜广顺 E-mail:pliu@wcs.org;jgshun@126.com
  • 基金项目:
    国家自然科学基金(31272336)、国家基金委专项基金(L1322010)和WCS中国项目

On the assessment of big cats and their prey populations based on camera trap data

Zhilin Li1, Aili Kang2, Jianmin Lang3, Yangang Xue3, Yi Ren2, Zhiwen Zhu2, Jianzhang Ma1, Peiqi Liu2, *(), Guangshun Jiang1, *()

  1. 1. College of Wildlife Resources, Northeast Forestry University; The Feline Research Center of State Forestry Administra- tion, Harbin 150040
    2 .Wildlife Conservation Society (WCS), China Program, Beijing 100080
    3 .Jilin Hunchun Amur Tiger National Nature Reserve Administration, Hunchun, Jilin 133300;
  • Received:2014-04-14 Accepted:2014-10-08 Online:2014-11-20
  • Contact: Liu Peiqi,Jiang Guangshun E-mail:pliu@wcs.org;jgshun@126.com

红外相机技术的发展促进了对东北虎(Panthera tigris altaica)、东北豹(Panthera pardus orientalis)及其猎物种群的研究。本研究以珲春保护区春化和马滴达两个区域的监测结果为例, 介绍利用该技术对我国长白山区东北虎、东北豹及其猎物的种群评估方法, 包括监测位点的选择、相机的架设方式及参数设置、数据筛选、东北虎和东北豹体侧花纹个体识别方法、物种相对丰富度的计算以及捕食者与猎物丰富度关系模型的构建。最后就东北虎、东北豹体侧花纹个体识别技术的适用性、红外相机监测与传统调查方法的差异, 相机监测的误差进行了讨论。研究表明, 利用红外相机技术进行密度预测以及东北虎、东北豹个体自动识别技术还需继续完善。1对/25 km2的相机架设密度基本上满足对于珲春保护区春化至马滴达区域虎豹的监测强度要求, 但对于有蹄类则需要另外的监测方案。

关键词: 广义可加模型, 个体识别, 相对丰富度指数, 误差分析, 种群评估

The development of camera traps has improved our ability to study Amur tigers (Panthera tigris altaica), Amur leopards (Panthera pardus orientalis) and their prey populations. This research introduces camera trap monitoring methods of Amur tigers, Amur leopards and their prey populations in Chunhua and Madida areas of the Hunchun Nature Reserve, Changbai Mountains, China. A selection of monitoring positions, methods of erecting, parameter settings, and data filtering techniques are presented. Additionally, unique identifiers of Amur tigers and Amur leopards based on body patterns, calculations of relative abundance indexes (RAI), and the establishment of RAI models between the predators and prey are presented. We discuss the applicability of unique identifiers with ipsilateral patterns, the differences between camera trap monitoring and traditional survey methods, and the error of camera trap monitoring. We conclude that predicting densities of Amur tigers and Amur leopards with camera traps and automatic-individual-identifiers still needs improvement. Camera trap densities of one pair per 25 km2 can meet the needs for Amur tigers and leopards within Chunhua and Madida of the Hunchun Nature Reserve, but a separate monitoring project is needed for ungulates prey.

Key words: generalized additive models, individual identify, relative abundance index, error analysis, population evaluation

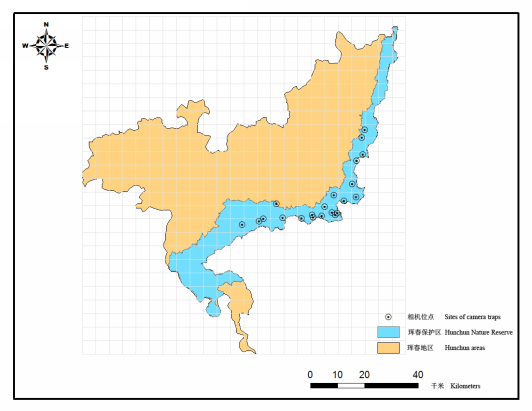

图1

吉林珲春东北虎国家级自然保护区春化至马滴达部分地区相机监测位置图"

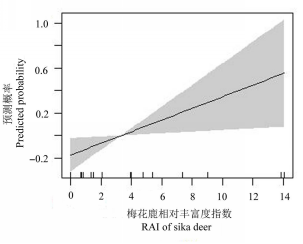

图2

梅花鹿相对丰富度指数对东北虎出现概率广义可加模型(GAM)回归示意图"

表1

东北虎及东北豹在春秋季的相对丰富度指数及丰富度差异性检验结果"

监测项目
Monitoring items
春季
Spring
秋季
Autumn
春秋合计
Spring and autumn
Mann-Whitney U (n=39)
Z P
捕食者 Predator 0.613 1.365 0.969 -0.745 0.233
东北虎 Amur tiger 0.536 1.108 0.807 -0.226 0.37
东北豹 Amur leopard 0.076 0.255 0.161 -1.165 0.109
猎物 Prey 5.228 13.136 9.288 -2.117 0.016*
野猪 Wild boar 2.147 4.009 3.028 -0.401 0.363
西伯利亚狍 Roe deer 2.300 3.582 2.907 -0.879 0.187
梅花鹿 Sika deer 1.303 5.544 3.311 -2.173 0.014*

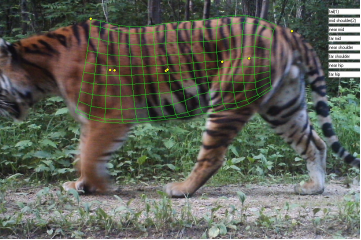

附图1

利用Extract Compare V1.20对东北虎体侧图片构建三维表面模型"

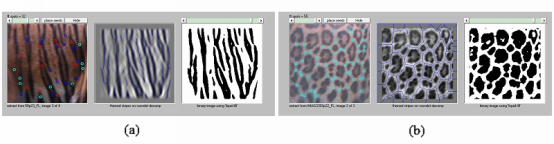

附图2

利用三维模型得到东北虎(a)与东北豹(b)的体侧平整图形并提取图形相对位置信息"

附图3

红外相机监测到的东北虎和东北豹。a, c, e为雌性东北虎个体, b, d为雄性东北虎个体, f, g为雌性东北豹个体。"

[1] Bowkett AE, Rovero F, Marshall AR (2008) The use of camera-trap data to model habitat use by antelope species in the Udzungwa Mountain forests, Tanzania.African Journal of Ecology, 46, 479-487.
[2] Carbone C, Christie S, Conforti K, Coulson T, Franklin N, Ginsberg JR, Griffiths M, Holden J, Kawanishi K, Kinnaird M, Laidlaw R, Lynam A, Macdonald DM, Martyr D, Martyr C, Nath L, O’Brien T, Seidensticker J, Smith DJL, Sunquist M, Tilson R, Wan Shahruddin WN (2001) The use of photographic rates to estimate densities of tigers and other cryptic mammals.Animal Conservation, 4, 75-79.
[3] Chen JY (陈九屹), Nasen D (那顺得力格尔), Sun QH (孙全辉), Zhang LJ (张逦嘉), Tang JR (唐继荣), Lang JM (郎建民), Liu T (刘通), Liu KP (刘昆鹏), Xiao WH (肖文宏), Bao WD (鲍伟东) (2011) Amur tiger and prey in Jilin Hunchun National Nature Reserve, China.Chinese Journal of Zoology(动物学杂志), 46(2), 46-52. (in Chinese with English abstract)
[4] Dillon A, Kelly MJ(2007) Ocelot Leopardus pardalis in Belize: the impact of trap spacing and distance moved on density estimates.Oryx, 41, 469-477.
[5] Foster RJ, Harmsen BJ (2012) A critique of density estimation from camera-trap data.Journal of Wildlife Management, 76, 224-236.
[6] Goodrich JM, Miquelle DG, Smirnov EN, Kerley LL, Quigley HB, Hornocker MG (2010) Spatial structure of Amur (Siberian) tigers (Panthera tigris altaica) on Sikhote-Alin Biosphere Zapovednik, Russia.Journal of Mammalogy, 91, 737-748.
[7] Gopalaswamy AM, Royle JA, Hines JE, Singh P, Jathanna D, Kumar NS, Karanth KU (2012) Program SPACECAP: software for estimating animal density using spatially explicit capture-recapture models.Methods in Ecology and Evolution, 3, 1067-1072.
[8] Gu JY (顾佳音), Liu H (刘辉), Jiang GS (姜广顺) (2013) A review of potential techniques for indentifying individual Amur tigers (Panthera tigris altaica).Chinese Journal of Wildlife(野生动物学报), 34, 229-237. (in Chinese with English abstract)
[9] Guisan A, Edwards Jr TC, Hastie T (2002) Generalized linear and generalized additive models in studies of species distributions: setting the scene.Ecological Modelling, 157, 89-100.
[10] Harris RB, Liu YS (刘永生), Cai GQ (蔡桂全), О’Gara BW (1992) Line transects for estimating density of musk deer pellet groups.Acta Ecologica Sinica(生态学报), 12, 302-305. (in Chinese with English abstract)
[11] Heilbrun RD, Silvy NJ, Peterson MJ, Tewes ME (2006) Estimating bobcat abundance using automatically triggered cameras.Wildlife Society Bulletin, 34, 69-73.
[12] Hiby L, Lovell P, Patil N, Kumar NS, Gopalaswamy AM, Karanth KU (2009) A tiger cannot change its stripes: using a three-dimensional model to match images of living tigers and tiger skins.Biology Letters, 5, 383-386.
[13] Karanth KU (1988) Analysis of predator-prey balance in Bandipur Tiger Reserve with reference to census reports.Journal of the Bombay Natural History Society, 85, 1-8.
[14] Karanth KU (1995) Estimating tiger (Panthera tigris) populations from camera trap data using capture-recapture models.Biological Conservation, 71, 333-338.
[15] Karanth KU, Nichols JD (1998) Estimation of tiger densities in India using photographic captures and recaptures.Ecology, 79, 2852-2862.
[16] Kerley LL, Salkina GP (2007) Using scent-matching dogs to identify individual Amur tigers from scats.Journal of Wildlife Management, 71, 1349-1356.
[17] Li B (李冰) (2010) Status of Amur Tiger and Prey Population in Hunchun Nature Reserve, China and Conservation Research (珲春自然保护区东北虎及猎物种群现状及保护研究). PhD dissertation, East China Normal University, Shanghai. (in Chinese with English abstract)
[18] Liu F (刘芳), Li DQ (李迪强), Wu JG (吴记贵) (2012) Using infra-red cameras to survey wildlife in Beijing Songshan National Nature Reserve.Acta Ecologica Sinica(生态学报), 32, 730-739. (in Chinese with English abstract)
[19] Liu H (刘辉), Jiang GS (姜广顺), Li H (李惠) (2015) A comparative study on four survey methods used in ungulate population size in winter in north China. Acta Ecologica Sinica(生态学报), doi: 10.5846/stxb201308172102. (in Chinese with English abstract)
[20] Lynam AJ, Jenks KE, Tantipisanuh N, Chutipong W, Ngoprasert D, Gale GA, Steinmetz R, Sukmasuang R, Bhumpakphan N, Grassman LI, Cutter P, KitAmura S, Reed DH, Baker MC, McShea W, Songsasen N, Leimgruber P (2013) Terrestrial activity patterns of wild cats from camera-trapping.Raffles Bulletin of Zoology, 61, 407-415.
[21] Ma JZ (马建章), Chang H (常虹), Meng XL (孟宪林) (1989) Research and application of red deer dung distribution type.Chinese Journal of Wildlife(野生动物), (6), 2. (in Chinese)
[22] Marcus A, Andrew JH, Joanna R, Rahel S, Anderas W (2012) Handbook for Wildlife Monitoring Using Camera-traps. BBEC II Secretariat Publications, Sabah.
[23] Mills LS, Citta JJ, Lair KP, Schwartz MK, Tallmon DA (2000) Estimating animal abundance using noninvasive DNA sampling: promise and pitfalls.Ecological Applications, 10, 383-394.
[24] Riordan P (1998) Unsupervised recognition of individual tigers and snow leopards from their footprints.Animal Conserva- tion, 1, 253-262.
[25] Rovero F, Marshall AR (2009) Camera trapping photographic rate as an index of density in forest ungulates.Journal of Applied Ecology, 46, 1011-1017.
[26] Rowcliffe JM, Field J, Turvey ST, Carbone C (2008) Estimating animal density using camera traps without the need for individual recognition.Journal of Applied Ecology, 45, 1228-1236.
[27] Soh YH, Carrasco LR, Miquelle DG, Jiang JS, Yang J, Stokes EJ, Tang JR, Kang AL, Liu PQ, Rao M (2014) Spatial correlates of livestock depredation by Amur tigers in Hunchun, China: relevance of prey density and implications for protected area management.Biological Conservation, 169, 117-127.
[28] Stephens PA, Zaumyslova OY, Hayward GD, Miquelle DG (2006a) Analysis of the Long-term Dynamics of Ungulates in Sikhote-Alin Reserve, Russian Far East. A report to the Sikhote-Alin Zapovednik, USDA Forest Service and WCS.
[29] Stephens PA, Zaumyslova OY, Miquelle DG, Myslenkov AI, Hayward GD (2006b) Estimating population density from indirect sign: track counts and the Formozov-Malyshev- Pereleshin formula.Animal Conservation, 9, 339-348.
[30] Wallace RB, Gomez H, Ayala G, Espinoza F (2003) Camera trapping for jaguar (Panthera onca) in the Tuichi Valley, Bolivia.Journal of Neotropical Mammal, 10, 133-139.
[31] Yin YF, Drubgyal A, Lu Z, Sanderson J (2007) First photographs in nature of the Chinese mountain cat.Cat News, 47, 6-7.
[32] Yudakov AG, Nikolaev IG (1987) Ecology of the Amur Tiger: Winter Observations During 1970-1973 in the Western Section of Central Sikhote-Alin. Nauka Press, Moscow.
[33] Zhang CZ (张常智), Zhang MH (张明海) (2011) Population status and dynamic trends of Amur tiger’s prey in Eastern Wandashan Mountain, Heilongjiang Province. Acta Ecologica Sinica(生态学报), 31, 6481-6487. (in Chinese with English abstract)
[34] Zhang SS (章书声), Bao YX (鲍毅新), Wang YN (王艳妮), Fang PF (方平福), Ye B (叶彬) (2012) Activity rhythms of black muntjac (Muntiacus crinifron) revealed with infrared camera.Acta Theriologica Sinica(兽类学报), 32, 368-372. (in Chinese with English abstract)
[35] Zhang YG (张于光), Li DQ (李迪强), Rao LQ (饶力群), Xiao QM (肖启明), Liu D (刘丹) (2003) Identification of polymorphic microsatellite DNA loci and paternity testing of Amur tiger. Acta Zoologica Sinica(动物学报), 49, 118-123. (in Chinese with English abstract)
