Process-oriented ecological modeling approach and scientific workflow system

Huijie Qiao, Congtian Lin, Jiangning Wang, Liqiang Ji*()

  1. Institute of Zoology, Chinese Academy of Sciences, Beijing 100101
  • Received:2013-12-26 Accepted:2014-05-16 Online:2014-06-04
  • Ji Liqiang

A scientific workflow system is designed specifically to organize, manage and execute a series of research steps, or a workflow, in a given runtime environment. The vision for scientific workflow systems is that the scientists around the world can collaborate on designing global-scaled experiments, sharing the data sets, experimental processes, and results on an easy-to-use platform. Each scientist can create and execute their own workflows and view results in real-time, and then subsequently share and reuse workflows among other scientists. Two case studies, using the Kepler system and BioVeL, are introduced in this paper. Ecological niche modeling process, which is a specialized form of scientific workflow system included in both Kepler system and BioVeL, was used to describe and discuss the features, developmental trends, and problems of scientific workflows.

Key words: scientific workflow, ecological modeling, ecological niche model, Kepler system, BioVeL

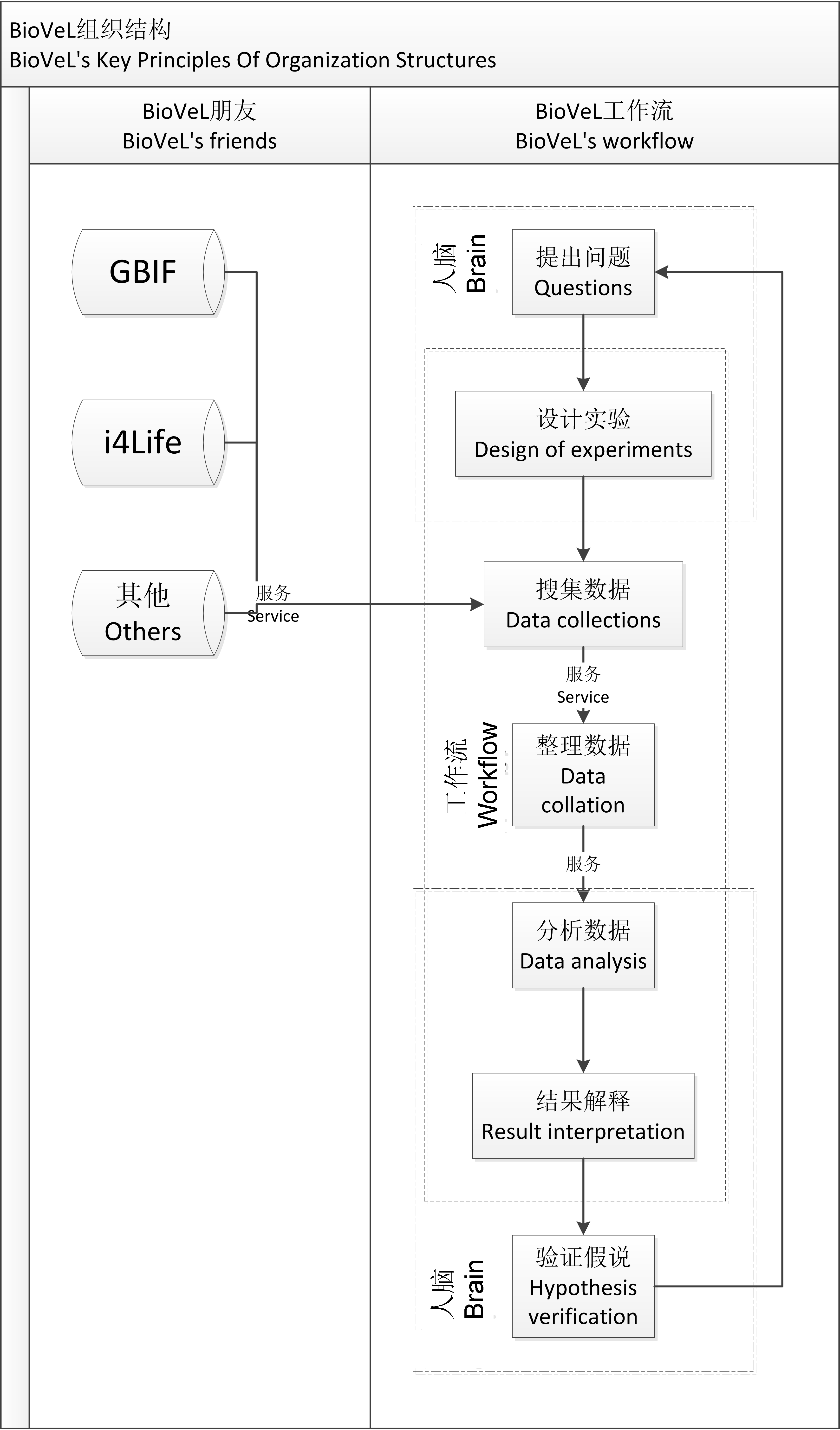

Fig. 1

The organization design and operating principles in BioVeL"

Table 1

Comparison of the two scientific workflow systems"

开普勒系统 Kepler system BioVeL
运行方式 Operating mode 单机运行 Stand-alone 在线运行 Online
是否可自由组合 Can be combined freely? 是 Yes 否 No
是否可重复使用 Can be reused? 是 Yes 是 Yes
复杂程度 Complexity 复杂, 多变, 可自由组合
Complex, varied, can be combined
复杂与否与提供的服务相关Associated with the provided services
共享方式 Way to share 通过文件 Via files 在线服务 Online services
使用方便程度 Usability 复杂 Complex 简单 Simple
已有的数量 Number of instances 丰富 Abundance 有限 Limited
用户数量 Number of users 丰富 Abundance 测试阶段, 用户数量未知 Unknown

Fig. 2

Ecological Niche Modeling Workflow in Kepler system"
