生物多样性 ›› 2014, Vol. 22 ›› Issue (3): 264-276.doi: 10.3724/SP.J.1003.2014.14012

所属专题: 生物多样性信息学专题(II)

• • 上一篇    下一篇

Scratchpads 2.0: 互联网时代的生物多样性虚拟研究环境

王利松1, , A;*(), 张红瑞1, 张宪春1

  1. 1 .中国科学院植物研究所系统与进化植物学国家重点实验室, 北京 100093
    2 .Biodiversity Informatics Group, Natural History Museum, Cromwell Road, London, SW7 5BD, UK
  • 收稿日期:2014-01-13 接受日期:2014-04-30 出版日期:2014-05-20
  • 通讯作者: 王利松 E-mail:lswang@ibcas.ac.cn
  • 基金项目:
    国家自然科学基金(30800057)和科技部基础性专项(2013FY112600)

Scratchpads 2.0: a virtual research environment for biodiversity sciences in the Internet era

Lisong Wang1, *(), Vincent S Smith2, Hongrui Zhang1, Xianchun Zhang1

  1. 1. State Key Laboratory of Systematic and Evolution Botany, Institute of Botany, Chinese Academy of Sciences, Beijing 100093, China
    2. Biodiversity Informatics Group, Natural History Museum, Cromwell Road, London, SW7 5BD, UK
  • Received:2014-01-13 Accepted:2014-04-30 Online:2014-05-20
  • Contact: Wang Lisong E-mail:lswang@ibcas.ac.cn

Scratchpads 2.0系统是支持在线环境下生物多样性基础数据的创建、管理和高效利用的虚拟研究平台。本文对该系统的研发背景和现状、系统使用的关键特征(包括个人数据和在线资源的动态整合机制、多语言内容的创建和管理、系统使用授权、动态数据追踪、团队协作, 以及数据论文的发表机制), 以及系统开发和管理者关心的主要技术问题(包括系统安装和高效维护管理、分布式系统架构、模块化开发和管理机制、相关的技术标准)进行了介绍。并针对与Scratchpads 2.0相关的生物多样性信息工具研发和应用的问题进行了讨论。Scratchpads准确的角色定位、学科业务需求的深度挖掘和优越的技术实现, 决定了它是网络时代分类学研究的重要基础设施之一, 将为世界在线植物志的实现提供重要的技术基础。

关键词: 生物多样性信息学, 数据发表, 在线植物志, 虚拟研究环境

We describe key features of the Scratchpads 2.0 Virtual Research Environment (VRE), which supports the creation, management and reuse of biodiversity data. This paper provides an introduction to recent developments and status of the Scratchpads 2.0 system, including its technical architecture. Key features include mechanisms to integrate individual research data and online resources, creation and management of multilingual content, license and authorization of system and data content, dynamic tracing of data editing history, research team cooperation, and methods of data paper publication. Important technical features include effective maintenance and installation of the system, ability to build distributed architecture, modularized function and development, and implementation of related information standards. These are put into a context with related biodiversity informatics tools. Scratchpads was designed with accurate role orientation, a deep understanding of taxonomic research requirements, and excellent technical solutions. All of these attributes contribute to Scratchpads’ importance to e-infrastrature in the Internet era for taxonomy, thereby providing us with a promising tool to complete ambitious projects like World Online Flora.

Key words: biodiversity informatics, data-publishing, online flora, virtual research environment

表1

Scratchpads 2.0的应用案例"

内容分类
Category
站点名称
Name of sites
使用的S2关键功能
Key Scratchpads features used
农业和园艺
Agriculture and horticulture
世界茄科在线
Solanaceae Source (http://solanaceae.myspecies.info/)
植物分类 Botanical taxonomy
野外调查页面 Field work pages
BRAHMS 数据导入 BRAHMS data import
物种多媒体 Taxonomic media
协同管理 Collaborator management
动物多样性
Animal biodiversity
非洲鱼类学门户
African Ichthyology Portal (http://africhthy.org/)
多语言支持(英语/法语) Multi-lingual support
(English/French)
社区论坛 Community forums
动物分类 Zoological taxonomy
学术文献 Scientific literature
物种多媒体 Taxonomic media
公众科学
Citizen science
硅藻在线
Diatoms Online (http://diatoms.myspecies.info/)
达尔文核心标准 Darwin-core specimen records
动物分类 Zoological taxonomy
多用户博客 Multi-user blogs
保护
Conservation
植物红皮书索引
IUCN Sampled Red List Index for Plants
(http://threatenedplants.myspecies.info/)
保护评估 Conservation assessments
IUCN数据整合 IUCN data integration
多元植物分类 Multiple botanical classifications
科学文献 Scientific literature
入侵种
Invasive species
认识蚂蚁
Antkey (http://antkey.org/)
多语言支持(英语/中文/印度尼西亚语)
Multi-lingual support (English/Chinese/ Indonesian)
解剖学词汇 Anatomical glossary
物种分布图 Species occurence maps
植物多样性
Plant Biodiversity
加拿大和阿拉斯加极地植物区系
Arctic Flora of Canada and Alaska (http://arcticplants.myspecies.info/)
植物分类 Botanical taxonomy
自定义页面 Custom pages
自定义数据内容 Embedded custom content
Google地图 Google Maps
专业组织
Society
国际蝽类昆虫学会
The International Heteropterists’ Society (http://ihs.myspecies.info/)
个人群组 Private organisational groups
群组交流工具 Group communication tools
科学文献 Scientific literature
动物分类 Zoological taxonomy
物种多媒体 Taxonomic media
系统学
Systematics
蚊子的分类和编目
Mosquito Taxonomic Inventory
(http://mosquito-taxonomic-inventory.info/)
解剖学词汇 Anatomical glossary
动物分类 Zoological taxonomy
物种多媒体 Taxonomic media
图库 Galleries
科学文献 Scientific literature

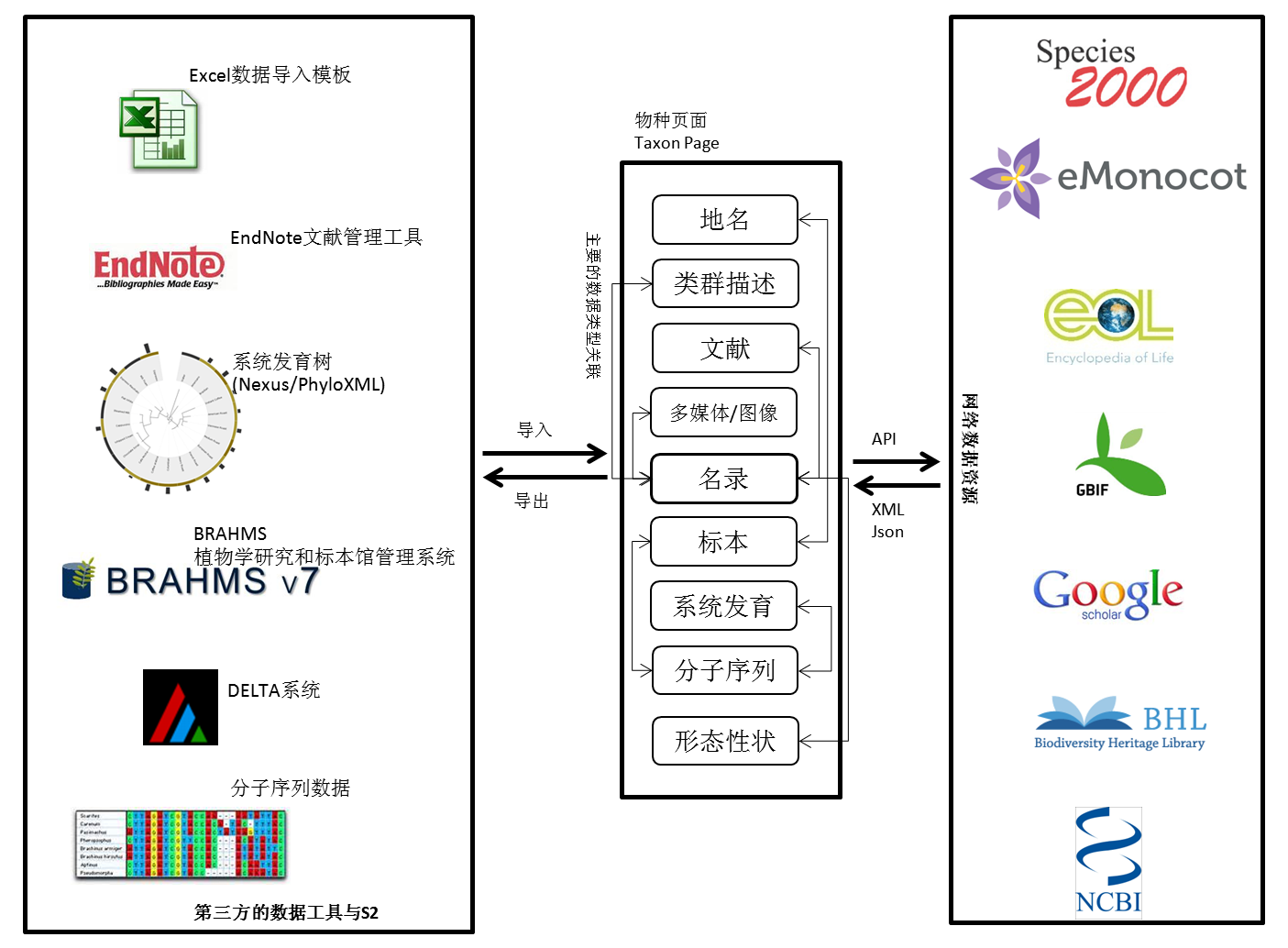

图1

Scratchpads 2.0系统基本数据类型和流程(箭头表示数据类型间的关联关系)"

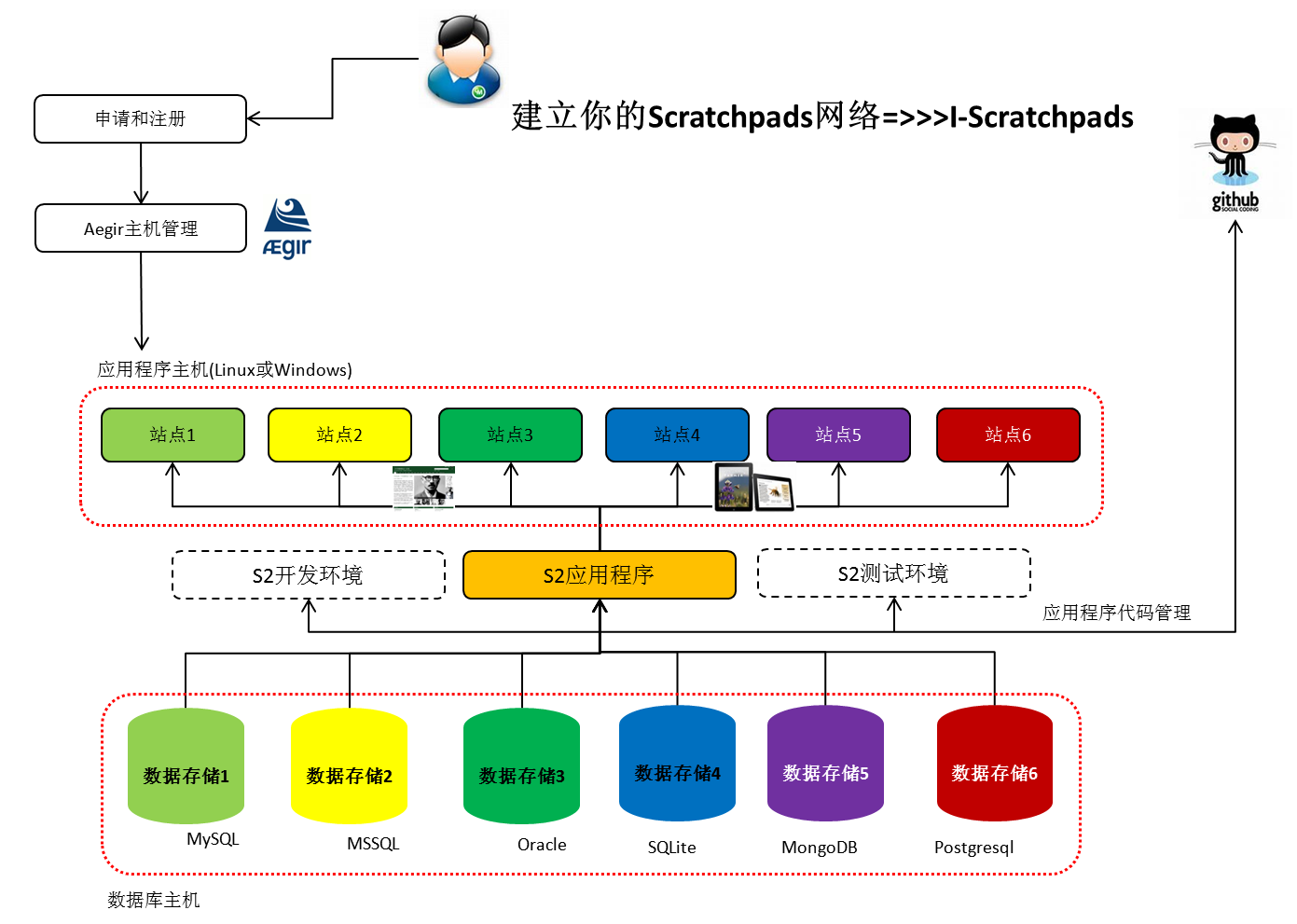

图2

Scratchpads 2.0系统申请注册流程及分布式应用的架构示意"

表2

Scratchpads 2.0目前移植的相关数据标准"

数据和元数据标准
Data and metadata standards
说明
Notes
BibTeX, RIS, XML bibliographic citations
(export can also be in XML, RTF or Tagged Field)
与各种桌面和在线文献管理工具, 如Endnote, ReferenceManager, BitText和Google Scholar等进行双向数据交换
CSV / XLSX (spreadsheet content) 与电子表格数据如Excel、Access等进行数据交换(需要使用指定的数据模板格式)
Darwin Core Archive and selected extensions 达尔文数据标准, 标本数据交换标准
EXIF, XMP image metadata 图像元数据交换标准
ITIS taxon metadata standard (for taxon names and hierarchies) ITIS分类群元数据标准(适用于类群学名和分类树)
LUCID (for taxonomic keys) 与鉴定工具LUCID系统的数据交换
Nexus (character data, export only) 与系统发育分析系统或性状矩阵软件的数据交换格式Nexus
Species Profile Model (for taxon descriptions) TDWG推荐的结构化的物种描述模型标准
XML (export only, selected content in the TaxPub schema, http://www.ncbi.nlm.nih.gov/books/NBK47081/) NCBI所推荐的与NCBI相关期刊中物种描述的信息标准

表3

Scratchpads 2.0中物种描述信息的分类标准(Species Profile Module, SPM)和说明"

序号
No.
主题术语 Items 解释和说明 Description
1 关系 Associations 描述捕食者-被捕食者; 寄主-寄生虫; 传粉, 共生, 互惠, 共栖, 杂交等生物相互关系的信息
Predator-prey; host-parasite, pollinators, symbiosis, mutualism, commensalism, hybridization…
2 行为 Behaviour 描述生物有机体对生物或非生物环境的反应
Cover actions and reactions of organism in relation to its biotic and abiotic environment
3 保护状况 Conservation status 描述物种目前或将来面临绝灭的可能性
A description of the likelihood of the species becoming extinct in the present day or in the near future
4 周期性 Cyclicity 描述物种周期性的特征, 比如物候 A state or condition characterised by regular repetition in time
5 细胞学 Cytology 描述物种的细胞生物学, 例如结构、功能等 Cell biology formation, structure and function of cells
6 特征摘要 Diagnostic description 描述物种与其相似物种的区别性特征 Distinguishing feature of this taxon from its closest relatives
7 疾病 Diseases 描述物种的疾病危害 Diseases of organisms
8 散布 Dispersal 描述物种的散布策略和机制 Dispersal strategies and mechanisms
9 分布 Distribution 描述物种按行政区域或生物地理区域界定的地理分布范围, 可以是全球性分布, 也可以是局部尺度上的分布情况。Cover ranges, e.g., a global range, or a narrower one; may be biogeographical, political or other (e.g., managed areas like conservencies); endemism; native or exotic; ref Darwin Core Geospatial extension.
10 演化 Evolution 描述物种的系统演化信息 Phylogenetic information relating to the taxon
11 一般描述 General description 广泛描述物种的综合信息 A comprehensive description of the characteristics of the taxon
12 遗传学 Genetics 有关物种的遗传信息, 包括染色体信息 Including karyotypes
13 生长 Growth 描述物种的生长速率、参数等 Rate; parameters; allometries.
14 生境 Habitat 描述物种的栖息环境, 包括地表分类(陆地、海洋)以及气候条件、忍耐幅、水平和垂直梯度上的特征
Include realm (e.g. Terrestrial etc) and climatic information (e.g. Boreal); also include requirements and tolerances; horizontal and vertical distribution.
15 立法 Legislation 描述有关该物种的立法情况 Legal regulations or statutes relating to the taxon
16 生活周期 Life cycle 专性发育转换 Obligatory developmental transformations
17 寿命 Life expectancy 描述物种的平均寿命 The average period an organism can be expected to survive
18 相似物种 Look alikes 描述与该物种相似的其他物种, 例如在入侵种群落中
Other taxa that this taxon may be confused with. Common in invasive species communities.
19 管理 Management 描述与物种的立法相关的管理情况, 比如CITES名录
A statement about the level of need to manage a taxon which can be related to a piece of legislation, e.g., a CITES list.
20 迁移 Migration 描述物种定期从一个地点移动到另外一个地点的情况, 例如动物繁殖期间的移动
Periodic movement of organisms from one locality to another (e.g., for breeding).
21 分子生物学 Molecular biology 描述物种的基因、蛋白质、生物化学(例如毒理)
Include genomic, proteomic and biochemistry (e.g. toxicity)
22 形态学 Morphology 描述物种的形态特征(也包括解剖特征)
The appearance of the taxon; e.g. habit; anatomy (the branch of morphology that deals with structure of animals)
23 生理学 Physiology 描述物种的生理学过程 An account of the physiological processes
24 居群生物学 Population biology 描述物种的丰度信息 Include abundance information
25 管理步骤 Procedures 如何处理某一类群, 已知的威胁是什么?
Deal with how you go about managing this taxon; what are the known threats to this taxon?
26 生殖 Reproduction 描述物种的生殖策略、信号和限制条件 Reproduction cues, strategies, restraints.
27 风险评估 Risk statement 描述物种的入侵风险和影响 Include invasiveness, impact
28 体积 Size 描述物种的体积, 例如周长、长、体积、重量
Average size, max, range; type of size (perimeter, length, volume, weight ...)
29 分类群生物学 Taxon biology 描述分类群的生物学特征 An account of the biology of the taxon
30 威胁 Threats 描述物种面临的威胁 The threats to which this taxon is subject
31 趋势 Trends 描述物种的居群是否稳定?是在增长还是下降等信息
An indication of whether a population is stable, or increasing or decreasing.
32 营养策略 Trophic strategy 描述物种在食物网中的位置和食物偏好 Include nutritional aspects, diet, position in food network.
33 用途 Uses 描述物种与人类利用的关系: 参考“经济植物” Relationships to humans; ref Cook “Economic Botany”

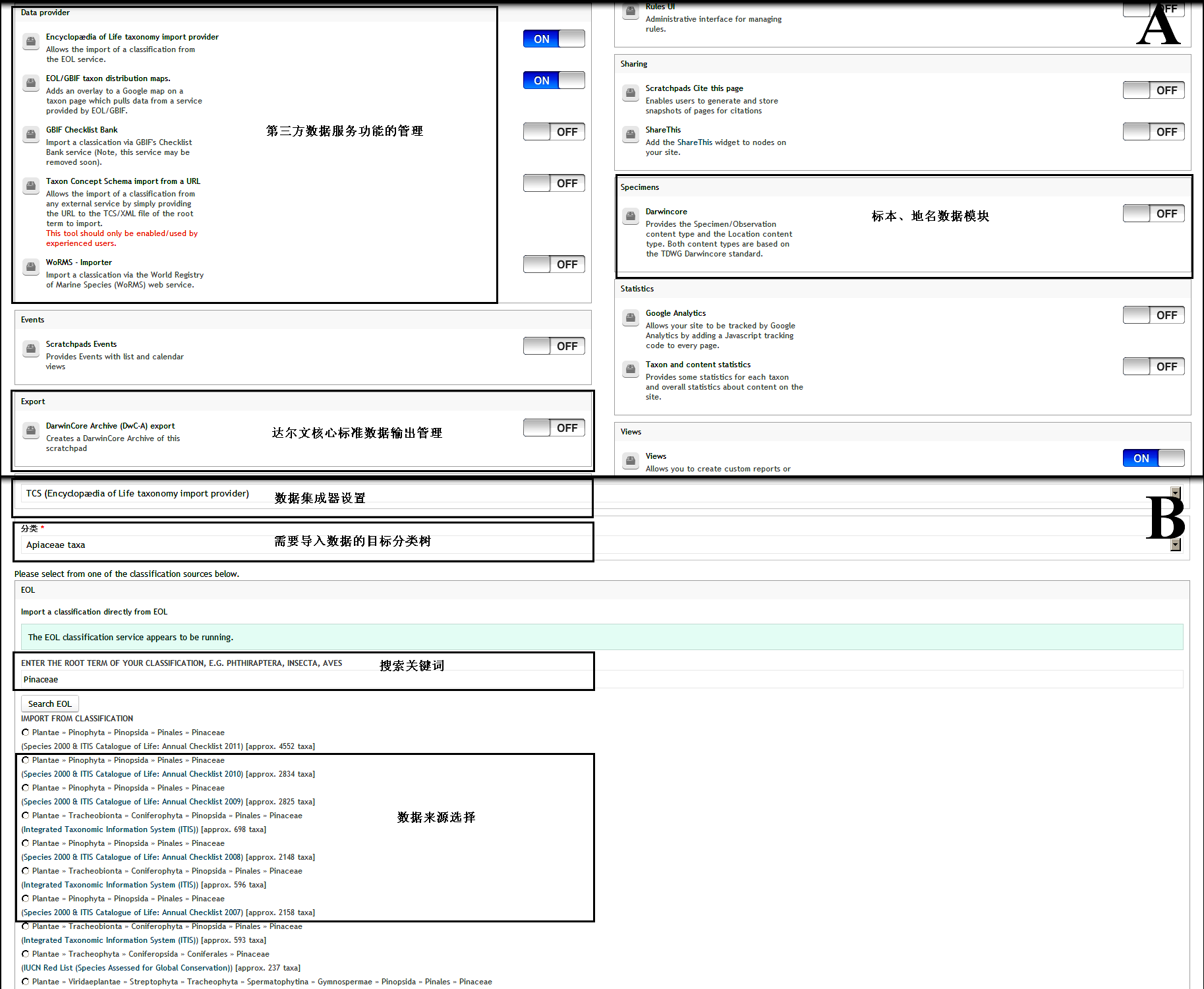

附图1

Scratchpads 2.0可视化的模块管理(A)和数据导入界面(B)"

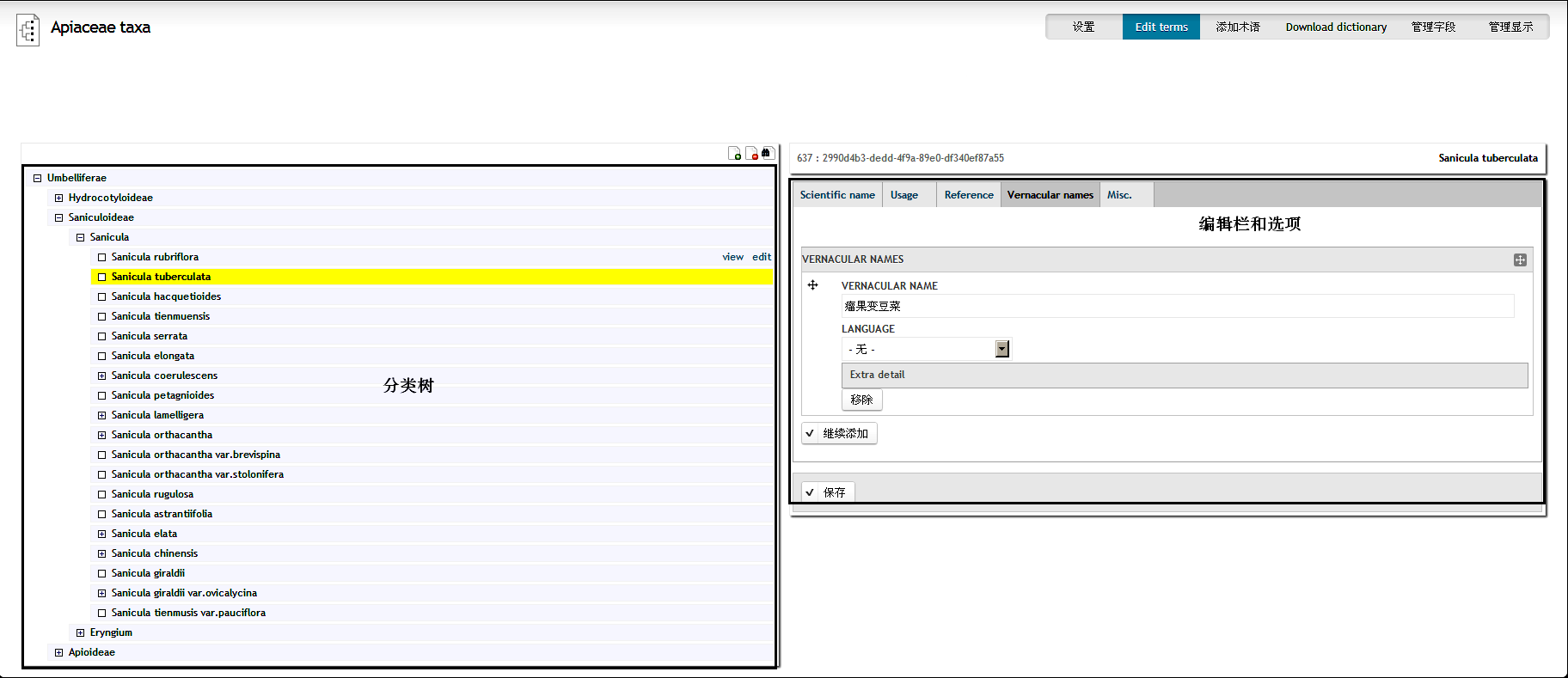

附图2

Scratchpads 2.0可视化的分类术语编辑界面"

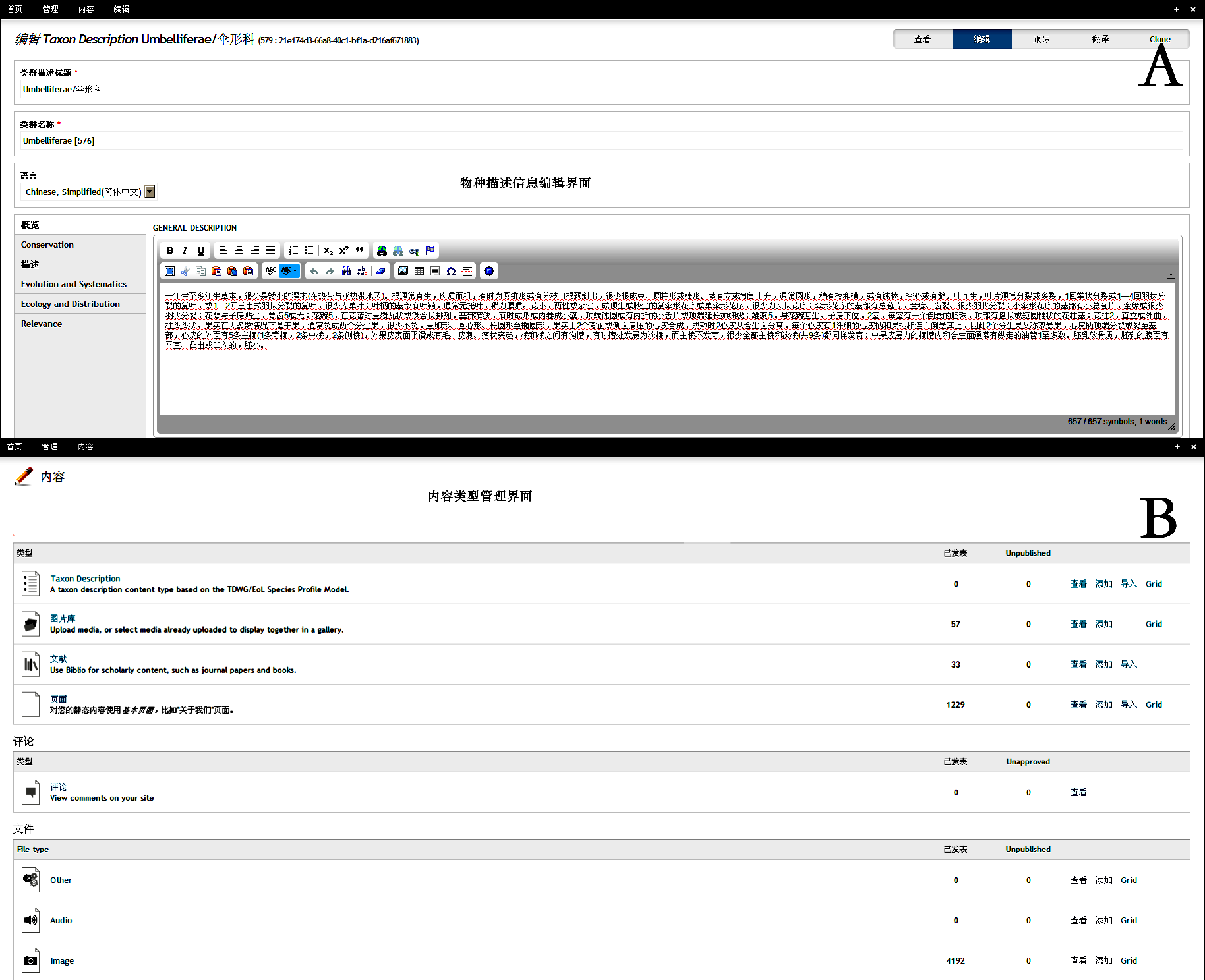

附图3

Scratchpads 2.0可视化的物种描述编辑(A)和内容管理(B)界面"

[1] Agosti D (2003) Encyclopedia of life: Should species description equal gene sequence?Trends in Ecology and Evolution, 18, 273.
[2] Baker E, Rycroft S, Smith VS (2014) Linking multiple biodiversity informatics platforms with Darwin Core Archives.Biodiversity Data Journal, 2, e1039. doi: 10.3897/BDJ.2. e1039.
[3] Bebber DP, Carine MA, Wood JRI, Wortley AH, Harris DJ, Prance GT, Davidse G, Paige J, Pennington TD, Robson NKB, Scotland RW (2010) Herbaria are a major frontier for species discovery. Proceedings of the National Academy of Sciences,USA, 107, 22169-22171.
[4] Benson DA, Karsch-Mizra CI, Lipman DJ, Ostell J, Sayers EW (2011) GenBank. Nucleic Acids Research, January; 39 (Database issue): D32-D37. Published online 2010 November 10. doi: 10.1093/nar/gkq1079.
[5] Blagoderov V, Brake I, Georgiev T, Penev L, Roberts D, Rycroft S, Scott B, Agosti D, Catapano T, Smith VS (2010) Streamlining taxonomic publication: a working example with Scratchpads and ZooKeys.ZooKeys, 50, 17-28.
[6] Bowker GC (2000) Biodiversity datadiversity.Social Studies of Science, 30, 643-683.
[7] Brach AR, Boufford DE (2011) Why are we still producing paper floras?Annals of the Missouri Botanical Garden, 98, 297-300.
[8] Brake I, Duin D, Van de Velde I, Smith V, Rycroft S (2011) Who learns from whom? Supporting users and developers of a major biodiversity e-infrastructure.ZooKeys, 150, 177-192.
[9] Chavan V, Ingwersen P (2009) Towards a data publishing framework for primary biodiversity data: challenges and potentials for the biodiversity informatics community.BMC Bioinformatics, 10, S2.
[10] Chavan V, Penev L (2011) The data paper: a mechanism to incentivize data publishing in biodiversity science.BMC Bioinformatics, 12, S2.
[11] Clark BR, Godfray HCJ, Kitching IJ, Mayo SJ, Scoble MJ (2009) Taxonomy as an e-Science. Philosophical Transactions of the Royal Society A: Mathematical, Physical and Engineering Sciences, 367, 953-966.
[12] Costello MJ (2009) Motivating online publication of data.BioScience, 59, 418-427.
[13] Costello MJ, May RM, Stork NE (2013a) Can we name Earth's species before they go extinct?Science, 339, 413-416.
[14] Costello MJ, Michener WK, Gahegan M, Zhang Z-Q, Bourne PE (2013b) Biodiversity data should be published, cited, and peer reviewed.Trends in Ecology and Evolution, 28, 454-461.
[15] Deans AR, Yoder MJ, Balhoff JP (2012) Time to change how we describe biodiversity.Trends in Ecology and Evolution, 27, 78-84.
[16] Duin D, van den Besselaar P (2011) Studying the effects of virtual biodiversity research infrastructures.ZooKeys, 150, 193-210.
[17] Erwin T, Stoev P, Georgiev T, Penev L (2011) ZooKeys 150: Three and a half years of innovative publishing and growth.ZooKeys, 150, 5-14.
[18] Fontaine B, van Achterberg K, Alonso-Zarazaga MA, Araujo R, Asche M, Aspöck H, Aspöck U, Audisio P, Aukema B, Bailly N, Balsamo M, Bank RA, Belfiore C, Bogdanowicz W, Boxshall G, Burckhardt D, Chylarecki P, Deharveng L, Dubois A, Enghoff H, Fochetti R, Fontaine C, Gargominy O, Lopez MSG, Goujet D, Harvey MS, Heller K-G, van Helsdingen P, Hoch H, De Jong Y, Karsholt O, Los W, Magowski W, Massard JA, McInnes SJ, Mendes LF, Mey E, Michelsen V, Minelli A, Nafria JMN, van Nieukerken EJ, Pape T, De Prins W, Ramos M, Ricci C, Roselaar C, Rota E, Segers H, Timm T, van Tol J, Bouchet P (2012) New species in the Old World: Europe as a frontier in diodiversity exploration, a test bed for 21st century taxonomy.PLoS ONE, 7, e36881.
[19] Frodin DG (2001) Guide to Standard Floras of the World. Cambridge University Press, Cambridge.
[20] Godfray HCJ (2002) Challenges for taxonomy: the discipline will have to reinvent itself if it is to survive and flourish.Nature, 417, 17-19.
[21] Godfray HCJ, Clark BR, Kitching IJ, Mayo SJ, Scoble MJ (2007) The web and the structure of taxonomy.Systematic Biology, 56, 943-955.
[22] Hebert PDN, Cywinska A, Ball SL, de Waard JR (2003) Biological identifications through DNA barcodes.Proceedings of the Royal Society of London, Series B: Biological Sciences, 270, 313-321.
[23] Johnson NF (2012) A collaborative, integrated and electronic future for taxonomy.Invertebrate Systematics, 25, 471-475.
[24] Knapp S (2008) Taxonomy as a team sport. In: The New Taxonomy (ed. Wheeler Q), pp. 33-53. CRC Press Taylor & Francis Group, Boca Raton, London, New York.
[25] Kress WJ (2004) Paper floras: how long will they last? a review of flowering plants of the Neotropics.American Journal of Botany, 91, 2124-2127.
[26] Leptin M (2012) Open access—pass the buck.Science, 335, 1279.
[27] Li GJ (李国杰), Chen XQ (程学旗) (2012) Big Data: a significant strategic area in future science, technology, and economy development—research status and thinking of Big Data. Bulletin of the Chinese Academy of Sciences(中国科学院院刊), 27, 11.
[28] Lynch C (2008) Big data: How do your data grow?Nature, 455, 28-29.
[29] Maddison DR, Guralnick R, Hill A, Reysenbach A-L, McDade LA (2012) Ramping up biodiversity discovery via online quantum contributions.Trends in Ecology and Evolution, 27, 72-77.
[30] Marhold K, Stuessy T, Agababian M, Agosti D, Alford MH, Crespo A, Crisci JV, Dorr LJ, Ferencová Z, Frodin D, Geltman DV, Kilian N, Linder HP, Lohmann LG, Oberprieler C, Penev L, Smith GF, Thomas W, Tulig M, Turland N, Zhang XC (2013) The future of botanical monography: Report from an international workshop, 12-16 March 2012, Smolenice, Slovak Republic.Taxon, 62, 4-20.
[31] Mayo SJ (2008) Alpha e-taxonomy: responses from the systematics community to the biodiversity crisis.Kew Bulletin, 63, 1-16.
[32] Mitch W (2008) Big data: Wikiomics.Nature, 455, 22-25.
[33] Moore W (2011) Biology needs cyberinfrastructure to facilitate specimen-level data acquisition for insects and other hyperdiverse groups.ZooKeys, 147, 479-486.
[34] Parr CS, Guralnick R, Cellinese N, Page RDM (2012) Evolutionary informatics: unifying knowledge about the diversity of life.Trends in Ecology and Evolution, 27, 94-103.
[35] Patterson DJ, Cooper J, Kirk PM, Pyle RL, Remsen DP (2010) Names are key to the big new biology.Trends in Ecology and Evolution, 25, 686-691.
[36] Penev L, Kress WJ, Knapp S, Li DZ, Renner S (2010a) Fast, linked, and open―the future of taxonomic publishing for plants: launching the journal PhytoKeys.PhytoKeys, 1, 1-14.
[37] Penev L, Roberts D, Smith VS, Agosti D, Erwin T (2010b) Taxonomy shifts up a gear: new publishing tools to accelerate biodiversity research. ZooKeys, 50, i-iv.
[38] Penev L, Sharkey M, Erwin T, van Noort S, Buffington M, Seltmann K, Johnson N, Taylor M, Thompson F, Dallwitz M (2009) Data publication and dissemination of interactive keys under the open access model.ZooKeys, 21, 1-17.
[39] Platnick NI (2013) The information content of taxon names: a reply to de Queiroz and Donoghue.Systematic Biology, 62, 175-176.
[40] Scotland RW, Wood JRI (2012) Accelerating the pace of taxonomy.Trends in Ecology and Evolution, 27, 415-416.
[41] Sheng YY (盛杨燕), Zhou T (周涛) (2013) Big Data Time:A Revolution that Will Transform How We Live, Work, and Think (大数据时代: 生活、工作与思维的大变革). Zhejiang People's Publishing House. (in Chinese)
[42] Smith V (2009) Data publication: towards a database of everything.BMC Research Notes, 2, 113.
[43] Smith V, Penev L (2011) Collaborative electronic infrastructures to accelerate taxonomic research.ZooKeys, 150, 1-3.
[44] Smith V, Rycroft S, Brake I, Scott B, Baker E, Livermore L, Blagoderov V, Roberts D (2011) Scratchpads 2.0: a Virtual Research Environment supporting scholarly collaboration, communication and data publication in biodiversity science.ZooKeys, 150, 53-70.
[45] Smith V, Rycroft S, Harman K, Scott B, Roberts D (2009) Scratchpads: a data-publishing framework to build, share and manage information on the diversity of life.BMC Bioinformatics, 10, S6.
[46] Stoltzfus A, O’Meara B, Whitacre J, Mounce R, Gillespie E, Kumar S, Rosauer D, Vos R (2012) Sharing and re-use of phylogenetic trees (and associated data) to facilitate synthesis.BMC Research Notes, 5, 1-15.
[47] Stuessy TF (2009) Paradigms in biological classification (1707-2007): Has anything really changed?Taxon, 58, 68-76.
[48] Thessen A, Patterson D (2011) Data issues in the life sciences.ZooKeys, 150, 15-51.
[49] Thomas C (2009) Biodiversity databases spread, prompting unification call.Science, 324, 1632-1633.
[50] Thomas WW, Forzza RC, Michelangeli FA, Giulietti AM, Leitman PM (2011) Large-scale monographs and floras: the sum of local floristic research.Plant Ecology and Diversity, 5, 217-223.
[51] Vision T (2010) Open data and the social contract of scientific publishing.BioScience, 60, 330-331.
[52] Whitlock MC (2011) Data archiving in ecology and evolution: best practices.Trends in Ecology and Evolution, 26, 61-65.
[53] Wieczorek J, Bloom D, Guralnick R, Blum S, Döring M, Giovanni R, Robertson T, Vieglais D (2012) Darwin Core: an evolving community-developed biodiversity data standard.PLoS ONE, 7, e29715.
[54] Winker K, Withrow JJ (2013) Natural history: small collections make a big impact.Nature, 493, 480.
[55] Yesson C (2007) How Global Is the Global Biodiversity Information Facility?PLoS ONE, 2, e1124.
[1] 张凤麟, 王昕, 张健. (2018) 生物多样性信息资源.II.环境类型数据. 生物多样性, 26(1): 53-65.
[2] 张健. (2017) 大数据时代的生物多样性科学与宏生态学. 生物多样性, 25(4): 355-363.
[3] 王昕, 张凤麟, 张健. (2017) 生物多样性信息资源. I. 物种分布、编目、系统发育与生活史性状. 生物多样性, 25(11): 1223-1238.
[4] 邵广昭, 李瀚, 林永昌, 赖昆祺. (2014) 海洋生物多样性信息资源. 生物多样性, 22(3): 253-263.
[5] 黄晓磊, 乔格侠. (2014) 生物多样性数据共享和发表: 进展和建议. 生物多样性, 22(3): 293-301.
[6] 王利松, 杨永, 张宪春. (2013) 在线植物志: 网络时代分类学的方法和实践. 植物学报, 48(2): 174-183.
[7] 赖昆祺, 郑又华, 陈岳智, 李佑升, 邵广昭. (2012) 运用聚类分析与Google Maps于大量物种出现记录之研究. 生物多样性, 20(1): 76-85.
[8] 邵广昭, 赖昆祺, 林永昌, 柯智仁, 李瀚, 洪铃雅, 陈岳智, 陈丽西. (2010) 台湾生物多样性资料整合之经验与策略. 生物多样性, 18(5): 444-453.
[9] 许哲平, 崔金钟, 覃海宁, 马克平. (2010) 中国生物多样性e-Science平台建设构想. 生物多样性, 18(5): 480-488.
[10] 钟扬, 张亮, 任文伟, 陈家宽. (2000) 生物多样性信息学:一个正在兴起的新方向及其关键技术. 生物多样性, 08(4): 397-404.
Viewed
Full text


Abstract

Cited

  Shared
  Discussed
